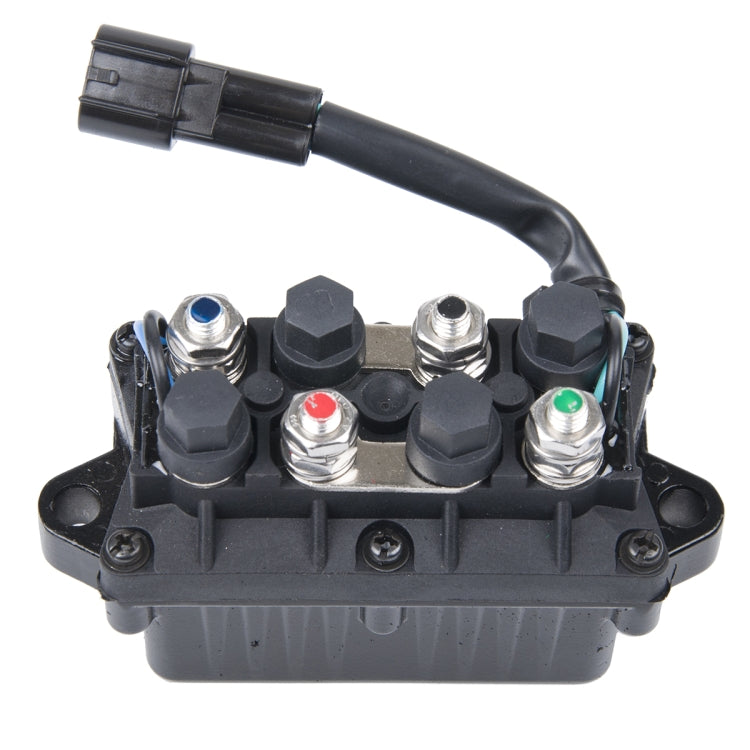

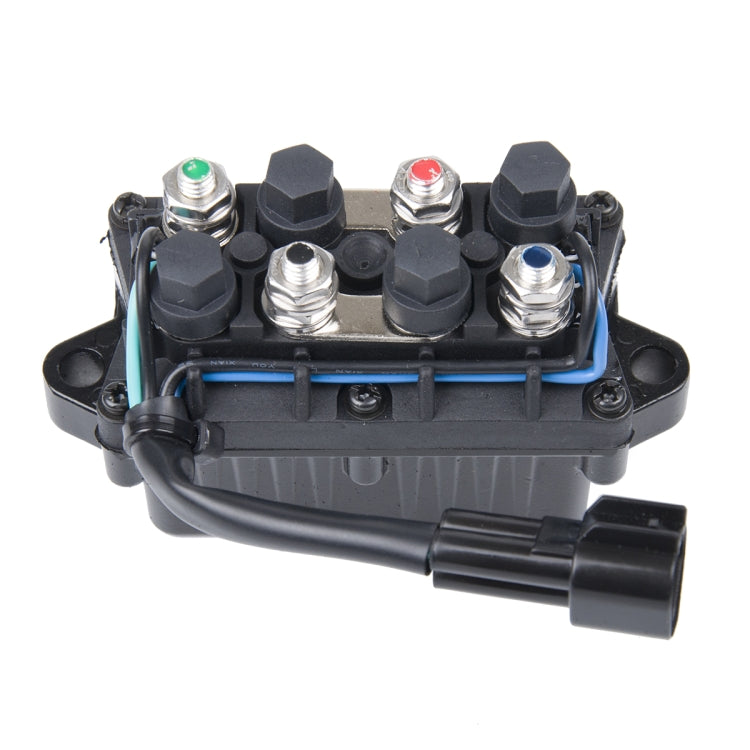

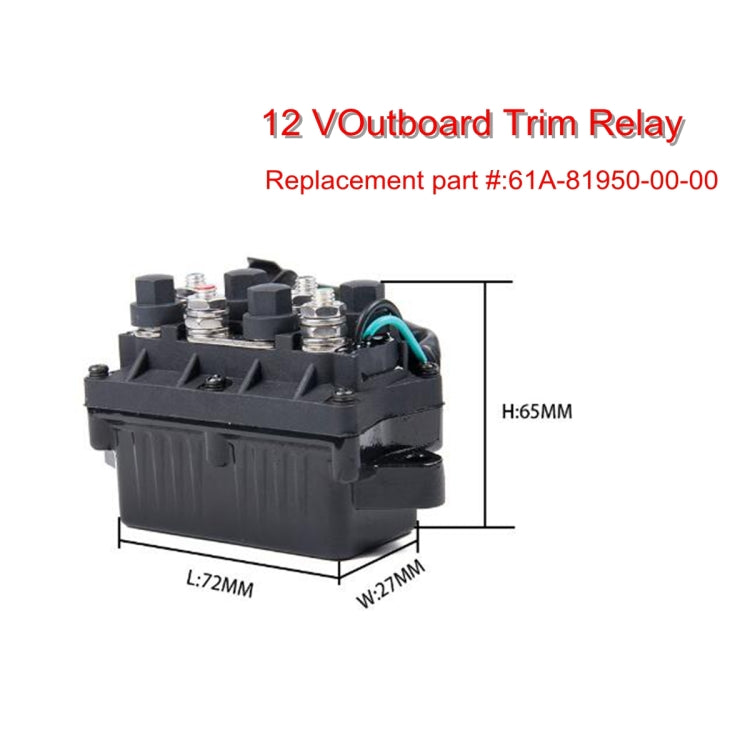

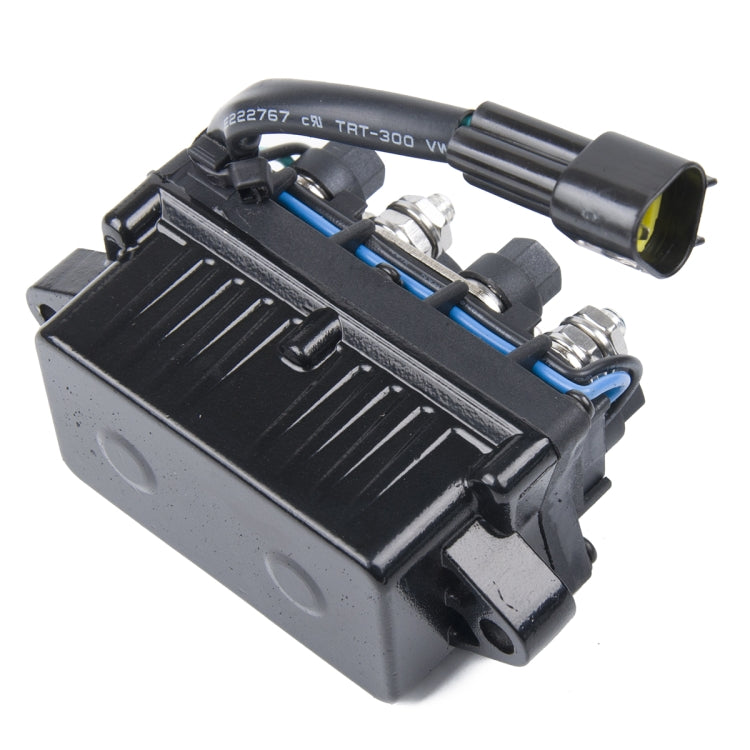

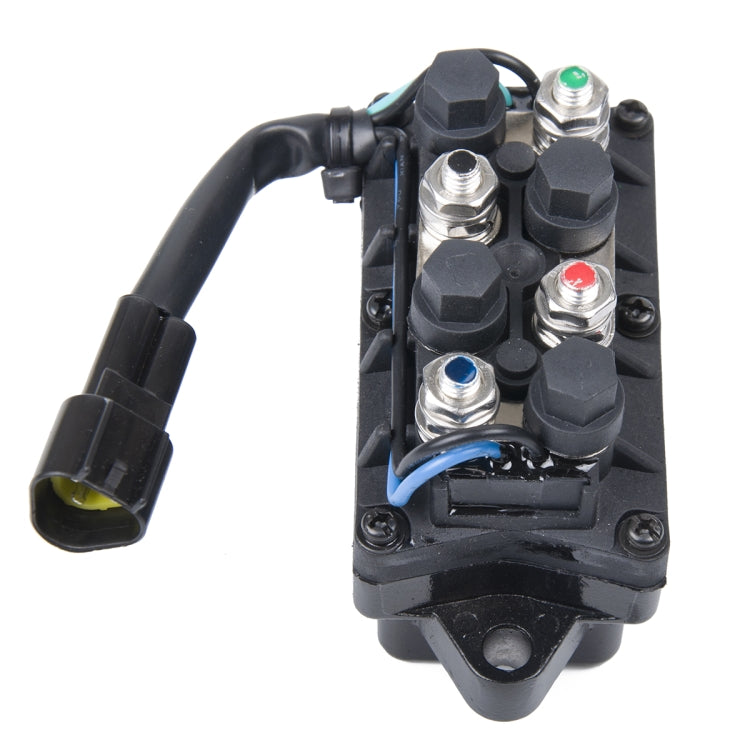

1. Replacement part: 61A-81950-00-00
2. Color??? black
3. Voltage: 12V
4. Current :120A
5. Working mode: Batch-type
6. Connector: DJ7031Y-2.3-11
7. Structure: Non-removable
8. Waterproof rating: IP67
9. Connection way:Red to Power(+),Black to Power(-),Blue(Green) to the motor,you can change the connection of Blue and Green to reach the right lifting direction you want.
10. Fitment for:
YAMAHA 40-90 HP POWER TRIM AND TILT RELAY
F-150 HP 2004-2009
F-225 HP TLR MODEL 2007-2009
F-250 HP 2005-2009
F-25 HP 2009
F-40 HP 2009
F-50 HP 2005-2009
F-60 HP 2005-2009
F-75 HP 2005-2009
F-90 HP 2005-2009
Note:
1. This is just for reference, please check and confirm the OE carefully before purchasing.
2. Please do not remove the 6 fixing screws,forcible removal will lead to damage of the relay
3. The continuous working time should not be more than 1 minute (In practice, it takes less than 15 seconds for the whole process).
Specification:
|
Package Weight
|
| One Package Weight |
0.53kgs / 1.18lb
|
| Carton Weight |
27.75kgs / 61.18lb
|
| Carton Size |
38cm * 32cm * 32cm / 14.96inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 685 cartons * 50 pcs = 34250 pcs
40HQ: 1590 cartons * 50 pcs = 79500 pcs
|
|
