Description:

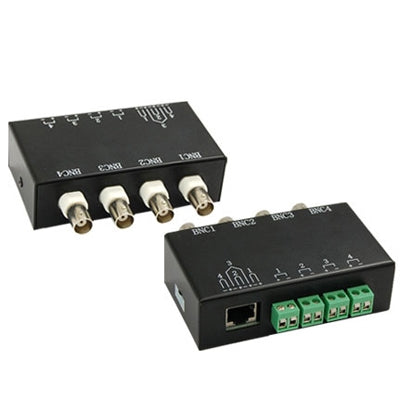

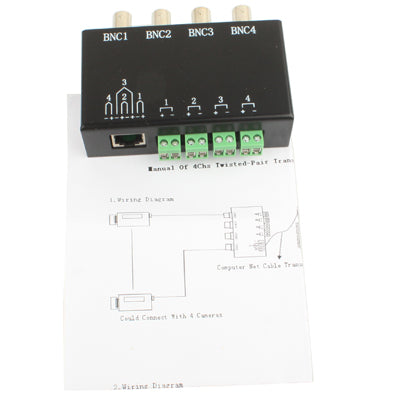

1) This BNC to UTP RJ45 Balun transmits video signal via UTP Lan cable.

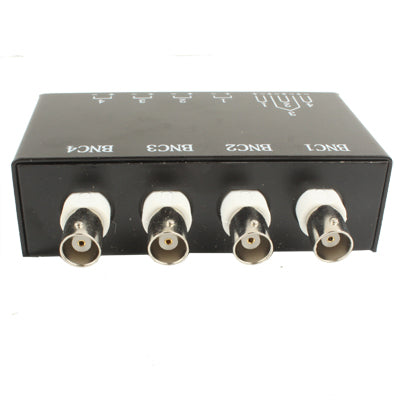

2) Input: BNC-video

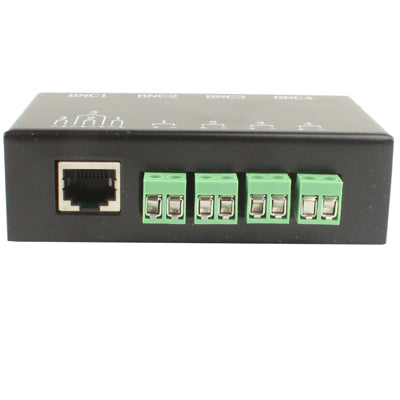

3) Output 1 of 4ch box - One RJ45, each for 4 channels (Pin 1-2 ch1, Pin 4-5 ch2, pin 3-6 ch3, pin 7-8 ch4).
4) Output 2 of 4ch box - Four screw output for 4 channels.
5) Passive design (no power required).
6) This Video BNC UTP RJ45 Balun using standard LAN cable, patching.
7) This 4 Channel BNC UTP RJ45 Balun does not support 12V power transmission.
8) Maximum 300m color video working distance (much better than coaxial cable 100m).
9) Casing Material: Metal
10) Dimension: 96x80x30mm
11) Weight: 257g
Specification:
|
Package Weight
|
| Carton Weight |
6.90kgs / 15.21lb
|
| Carton Size |
30cm * 20cm * 20cm / 11.81inch * 7.87inch * 7.87inch
|
| Loading Container |
20GP: 2222 cartons * 20 pcs = 44440 pcs
40HQ: 5158 cartons * 20 pcs = 103160 pcs
|
|
