1. Built in high performance RTOS operating system and audio decoder chip, support DTS / AC-3.
2. Super fast start time about 3 seconds.
3. HDMI iutput, 1 x CEN, 1 x SW, 1 x FL, 1 x FR, 1 x SL, 1 x SR, 3.5mm headphone port.
4. HDMI input resolution: Up to 3840x2160@30Hz; 4096x2160@30Hz.
5. HDMI to achieve audio signal decoding synchronization. There are PASS / 2.0CH / 5.1CH three audio mode options.
6. Support 6CH volume synchronous adjustment.
7. Auto decode AC-3/DTS (LPCM/PCM/RAW) input signal without any action.

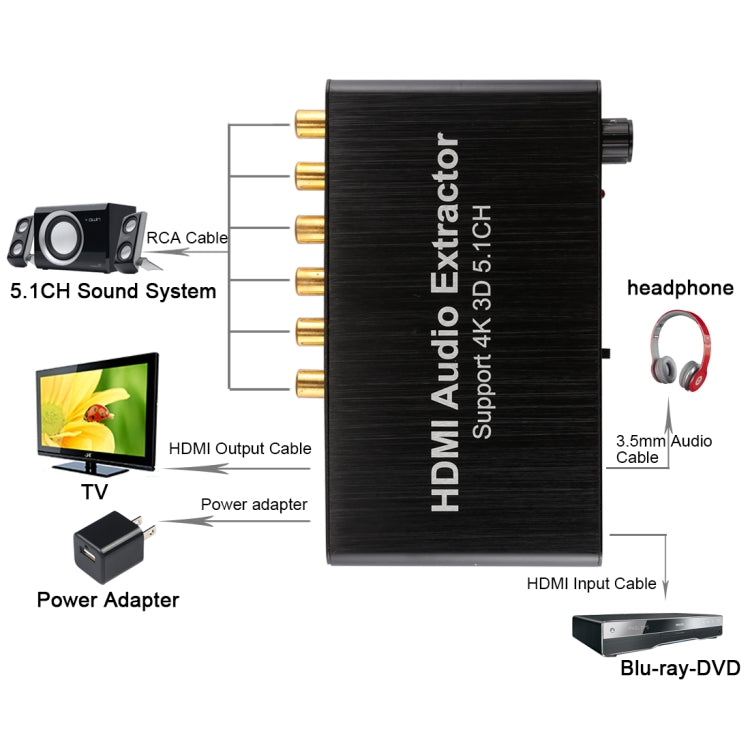

8. Compatible with network player, HDTV, Blu-ray DVD, DVD, PS4, Xbox 360, DM500S, DM800HD etc.
9. Small size and metal case, anti-interference.
10. Adopt 6CH RCA / 3.5mm headphone port output, convenient and efficient in use.
Specification:
|
General
|
| Interface |
1 x HDMI IN, 1 x SPDIF, 1 x 3.5mm audio jack |
| HDMI Resolution |
2160p@30Hz, 1080P@50/60Hz, 1080i, 720P, 1576i, 480P, 480i |
| Power Supply |
DC 5.0V / 2.0A |
| Video Color Format |
24bit, 30bit, 36bit |
| Frequency Bandwidth |
10.2Gbps |
| Audio Format |
DTS, MP3, AC3, WAV, WMA, AAC, ALAC, FLAC, APE, OGG, M4A |
| Input Cable Distance |
=<7m, AWG26 standard cable HDMI |
| Output Cable Distance |
=<8m, AWG26 standard cable HDMI |
| Input/ Output TMDS Signal |
0.5-1.5Volts p-p (TTL) |
| Input/ Output DDC Signal |
5Volts p-p (TTL) |
| Frequency Response |
20Hz~20KHz |
| Operating Temperature |
0 ~ 70 Degree Celsius |
| Storage Humidity |
5 ~ 90 Percent RH (No condensing) |
|
|

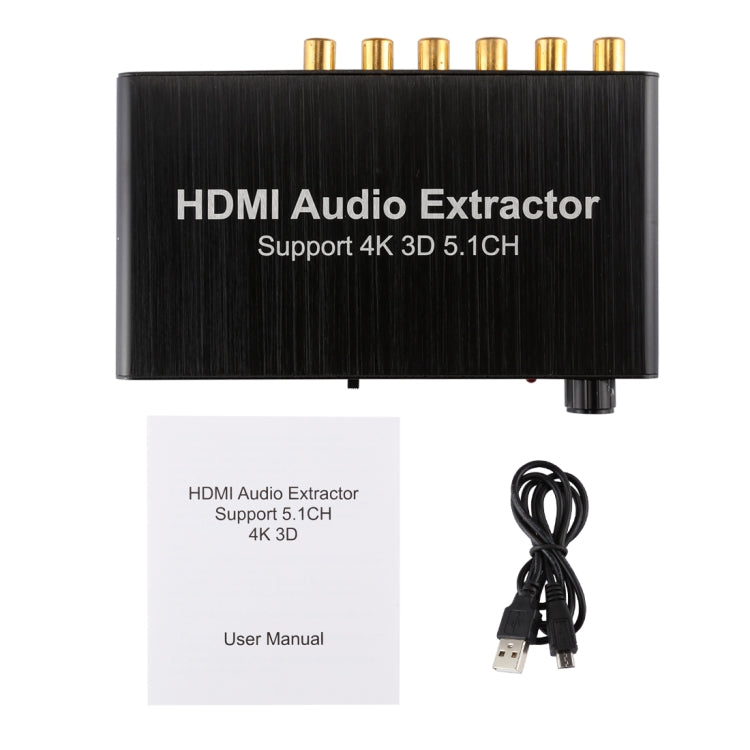

Package Include
|
| Package Contents |
1 x Converter
1 x USB Cable
1 x User Manual |
|
|
Package Weight
|
| One Package Weight |
0.47kgs / 1.03lb
|
| Carton Weight |
9.30kgs / 20.50lb
|
| Carton Size |
40cm * 34cm * 32cm / 15.75inch * 13.39inch * 12.6inch
|
| Loading Container |
20GP: 612 cartons * 20 pcs = 12240 pcs
40HQ: 1422 cartons * 20 pcs = 28440 pcs
|
|
