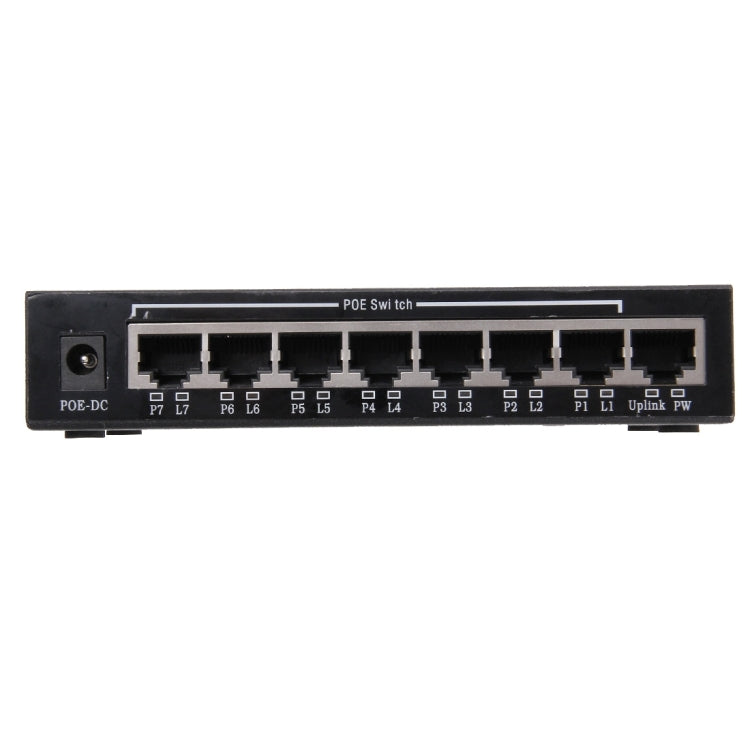

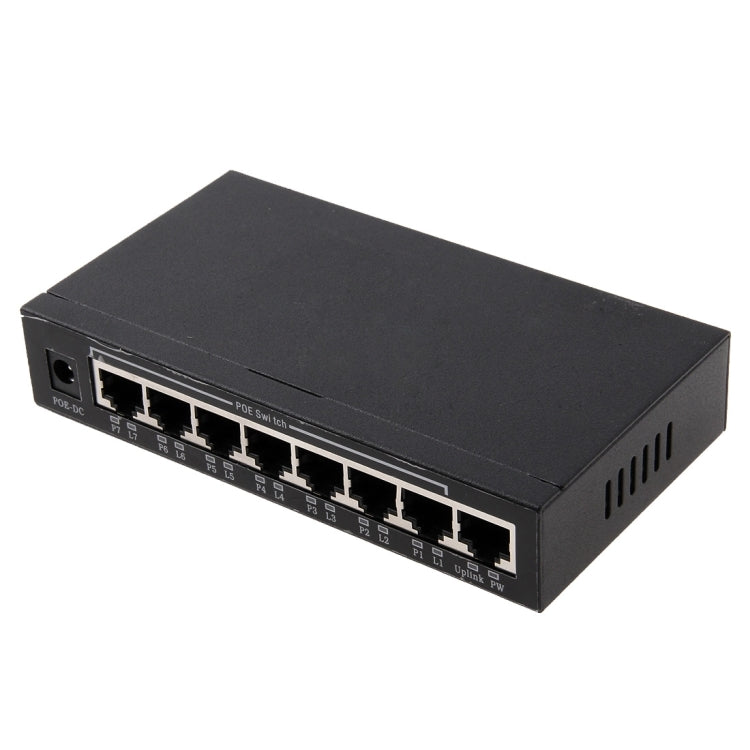

1. Port Description: 8-port 10M / 100M RJ45 ports (7 POE ports + 1 Uplink port)
2. Supported protocols:
- IEEE 802.3i, IEEE 802. 3u, IEEE802 3x
- IEEE 802.1af, IEEE 802.3af
3. Network Media:
- 10 BASE-T: Class 3, Class 4, Class 5 unshielded twisted pair (=100 meters)
- 100 BASE-TX: Class 5 and above unshielded twisted pair (=150 meters)
4. Power supply:
- POE Max power: 96W (port 1 to port 7)
- Output 48V, 2A
5.LED Indicator:
- 7 POE power lights (Blue)
- 7 data transmission lights (Green)
- 1 up-data display light (Green)
- 1 power indication light (Red)
6. Environment:
- Working Temperature: 0 ~ 40 degree
- Storage Temperature: -40 ~ 70 degree
- Working Humidity: 10% ~ 90% RH
- Storage Humidity: 5% ~ 90% RH
Specification:
|
General
|
| Input Voltage |
AC 100-240V |
| Interface |
8 x RJ45, DC IN |
|
|
Environment
|
| Operating Temperature |
0 - 40 Degrees Celsius |
| Storage Temperature |
-40 - 70 Degrees Celsius |
| Operating Humidity |
10% - 90% RH, noncondensing |
| Storage Humidity |
5% to 90% RH non-condensing |
|
|

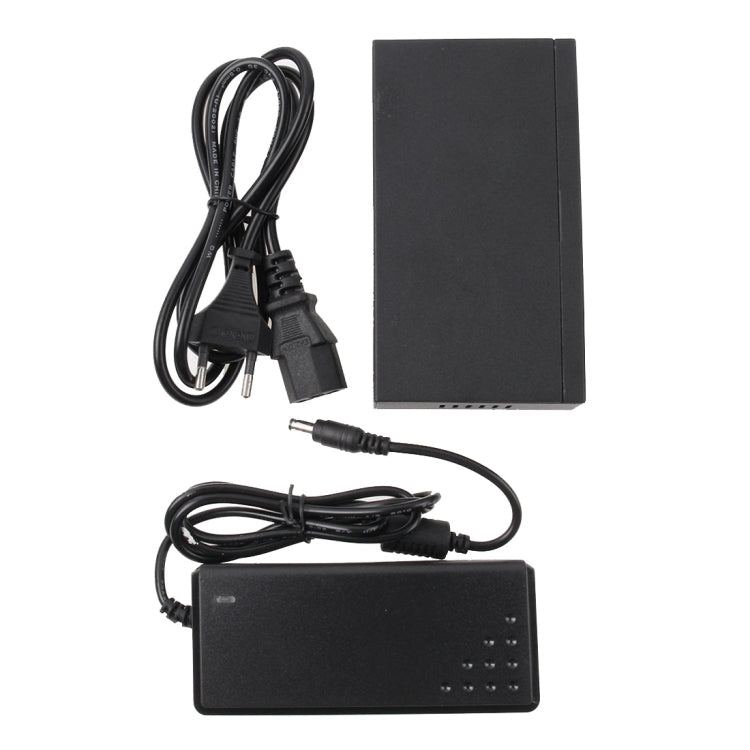

Package Include
|
| Package Contents |
1 x Power Supply
1 x Switch |
|
|
Package Weight
|
| One Package Weight |
0.76kgs / 1.67lb
|
| Carton Weight |
15.40kgs / 33.95lb
|
| Carton Size |
47cm * 28cm * 38cm / 18.5inch * 11.02inch * 14.96inch
|
| Loading Container |
20GP: 533 cartons * 20 pcs = 10660 pcs
40HQ: 1237 cartons * 20 pcs = 24740 pcs
|
|
