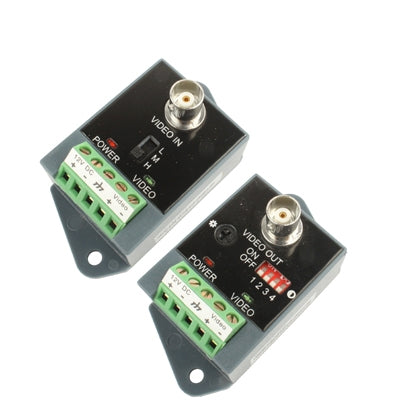

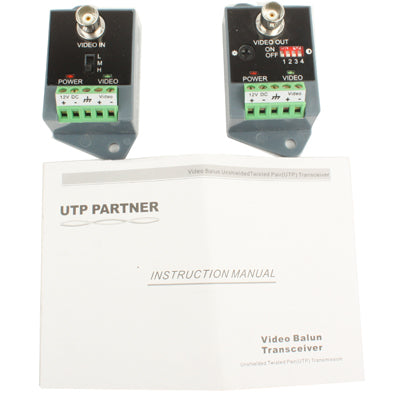

Features:
1) Smart Twisted Pair Video Balun are designed for CCTV signal transmission over unshielded twisted pair wire
2) Three position range switch for gain select on transmitter.
3) 4 position distance range switch on Receiver
4) UTP Video Balun with built in transient protection and ground lifting.
5) Specification of the CCTV Video Balun: single-channel
6) Frequency response: DC-6MHz
7) Common-mode/differential-mode rejection: 15kHz to 6MHz 60dB type
8) Impedance: BNC 75 Ohms
9) UTP/connector: 100 Ohms or RJ-45 100 Ohms
10) Environment:
Temperature: 0 to 50 degrees Celsius
Humidity: 0 to 95%
11) Wire type:
a) Full-motion CCTV video at long distances (Max.9,000ft / 3000M)
b) Built-in linearity, sharpness and charoma control
c) Enable unparalleled common interference rejection
d) Built-in transient protection
e) Improve the picture definition when connet to DVR or Quad, and reduce noise affects
f) Dimensions: 76 x 40 x 26mm
Specification:
|
Package Weight
|
| One Package Weight |
0.14kgs / 0.31lb
|
| Carton Weight |
8.70kgs / 19.18lb
|
| Carton Size |
46cm * 30cm * 30cm / 18.11inch * 11.81inch * 11.81inch
|
| Loading Container |
20GP: 644 cartons * 60 pcs = 38640 pcs
40HQ: 1495 cartons * 60 pcs = 89700 pcs
|
|
