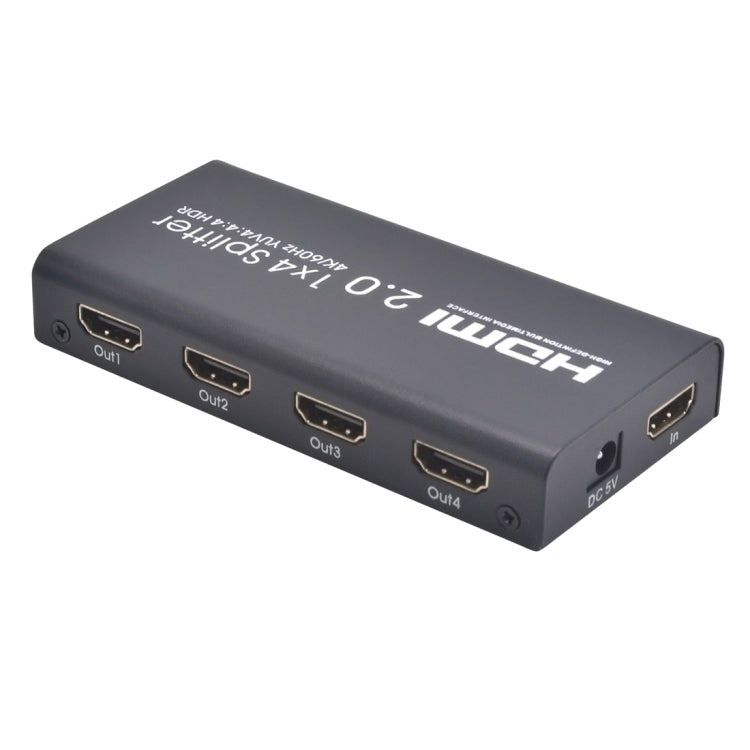

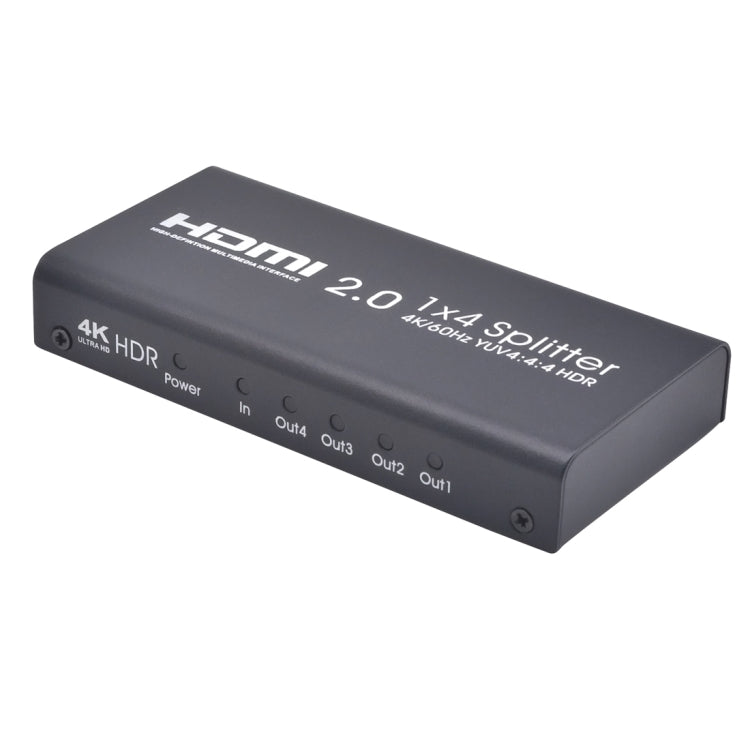

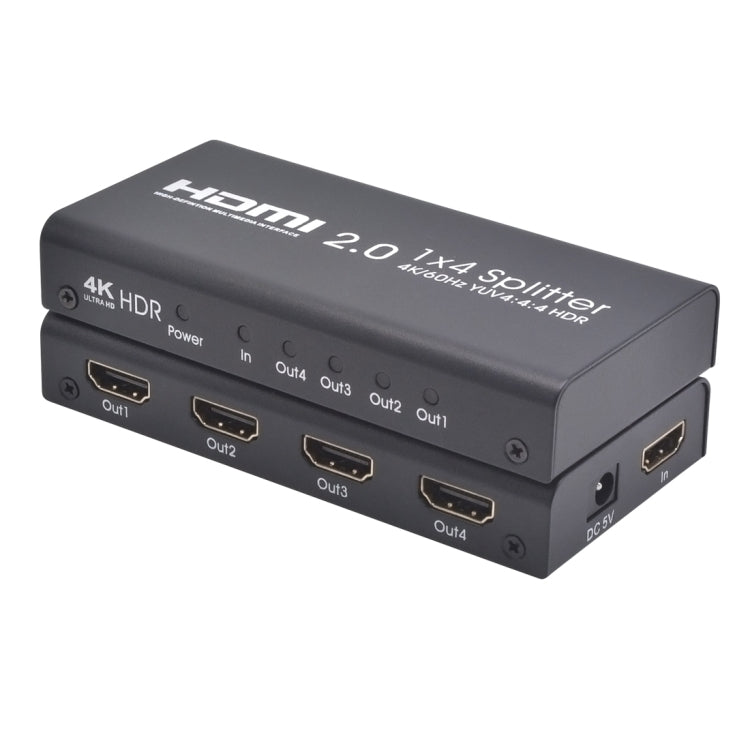

1. 1 x HDMI input, 4 x HDMI output
2. HDMI resolution up to 4K/60fs
3. Supports automatic EDID ,Support differernt resolution output
4. Support Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC
5. Support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
6. Support signal Re-Timing
7. Use AWG 26HDMI 2.0 standard cable,input
8. Transmission distance up to 3m, output transmission distance up to 3m
9. Transmit lossless audio and video signal without delay.
10. Simple to install.
Specification:
|
General
|
| Certificate |
CE
, ROHS
, FCC
|
|
|
General
|
| Interface |
DC IN, 1 x HDMI IN, 4 x HDMI Out |
| Operating Temperature |
-10 to 55 Degree Celsius |
| Storage Temperature |
-20 ~ 60 Degree Celsius |
| Operating Humidity |
10 ~ 90 Percent RH (Non-condensing) |
| Storage Humidity |
5 ~ 95 Percent RH (Non-condensing) |
|
|

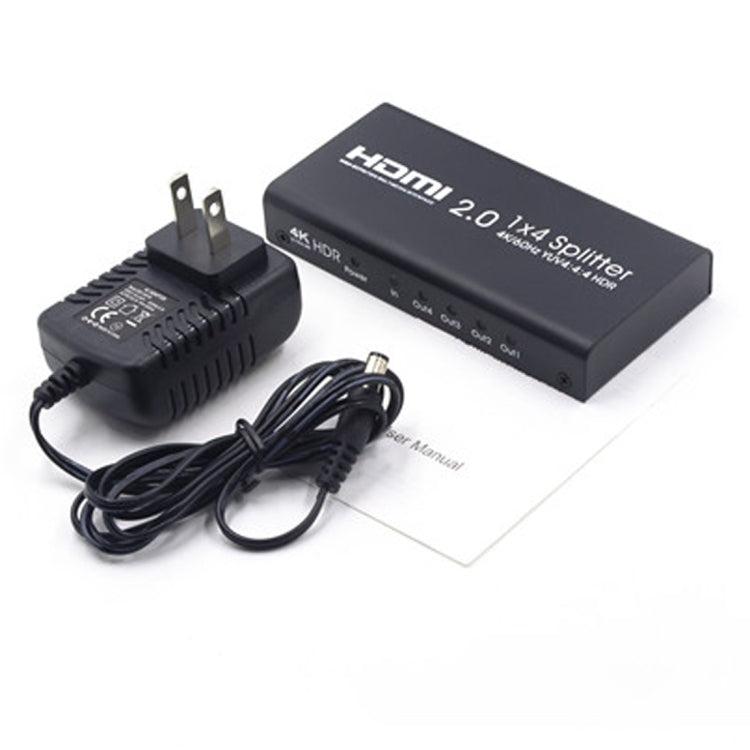

Package Include
|
| Package Contents |
1 x Power Adapter
1 x User Manual
1 x HDMI Splitter |
|
|
Package Weight
|
| One Package Weight |
0.29kgs / 0.65lb
|
| Carton Weight |
9.40kgs / 20.72lb
|
| Carton Size |
42cm * 32cm * 30cm / 16.54inch * 12.6inch * 11.81inch
|
| Loading Container |
20GP: 661 cartons * 30 pcs = 19830 pcs
40HQ: 1535 cartons * 30 pcs = 46050 pcs
|
|
