1. Compact size.
2. Digital LED display (3 digits)
3. Completely sealed design (IP67).
4. Reversed polarity input protection.
5. Specification:
Product display: LED display
Measure voltage range: DC 0-100V
powering voltage range: DC 4-30v
Current Consumption: <30mA
Sampling Rate: 5 readings/s
Resolution: 0.01V (input <10V) / 0.1V (input >10V)
6. Wiring: Red line to 4-30V power supply. The yellow wire connection requires the positive pole of the measuring device (0-100V) (note that you cannot connect the same device with the red wire). Black wire ground.

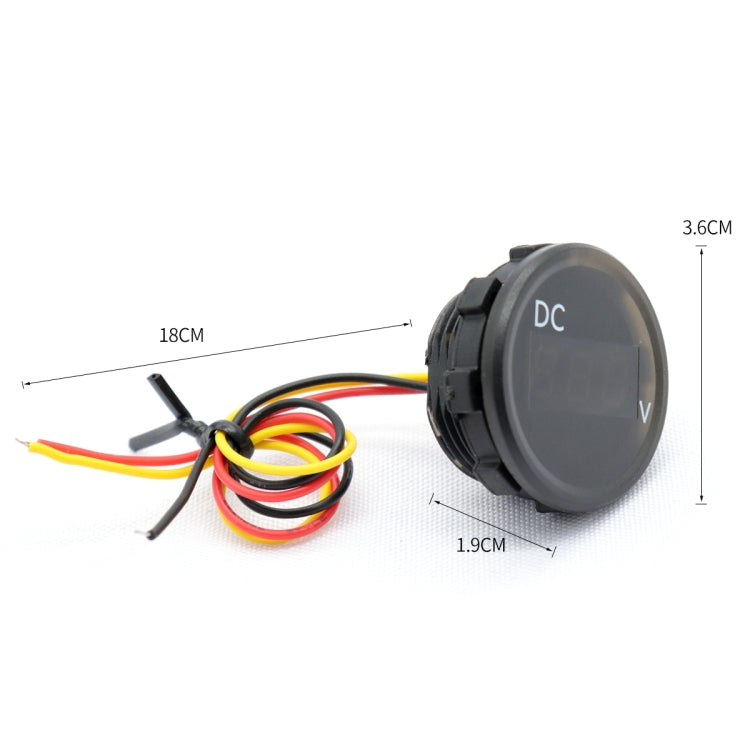

7. Size: Surface diameter 3.6cm, height 1.9cm, cable length 18cm.
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.10lb
|
| Carton Weight |
6.90kgs / 15.21lb
|
| Carton Size |
48cm * 42cm * 38cm / 18.9inch * 16.54inch * 14.96inch
|
| Loading Container |
20GP: 348 cartons * 200 pcs = 69600 pcs
40HQ: 808 cartons * 200 pcs = 161600 pcs
|
|
