Features1. FM Radio Frequency range: 65-108MHz
2. Dual-band display, dual standby
3. High power 5W / low selectable 1W
4. 128 channels
5. 50 CTCSS and 105 DCS
6. Built-in VOX function
7. Tone end of transmission
8. LED flashlight, large LCD display
9. High /Low RF power switchable
10. Squelch set(1-9 Level)
11. Emergency alert, low battery alert, battery saver, time-out timer, keypad kock
12. Monitor channel
13. Channel step: 2.5/5/6.25/10/12.5/25KHz
14. Restore to Factory Default
15. PC programming
16. Long comminution range: Open ground: 5-10km, Obstacle ground: 3-5km
Specification:
|
General
|
| Frequency Range |
FM 65MHz-108MHz, UHF 400MHz-520MHz, VHF 136MHz-174MHz, UHF 400MHz-480MHz |
| Frequency Step |
2.5kHz, 5kHz, 6.25kHz, 10kHz, 12.5kHz, 25kHz |
| Antenna Impedance |
50 ohms |
| Consumption Standby |
=<75mA |
| Battery Types |
Lithium-ion Battery |
| Operation Mode |
Simplex, Semi-duplex |
| Duty Cycle |
03/03/54 min. (RX / Tx / Standy) |
| Working Temperature |
-20C to 60C |
| Walkie Distance (Open) |
3-5km |
| Walkie Distance (Barrier) |
1-3km |
|
|
Transmitter Parameters
|
| Maximum Deviation |
=<+/-5kHz, =<+/-2.5kHz |
| Emission Class |
16K/F3E, 11K/F3E |
| Transmitting Current |
=<1.4A |
|
|
Receiver Parameters
|
| Stability |
0.2μV (at 12dB Sinad) |
| Adjacent Channel Selectivity |
65dB |
|
|

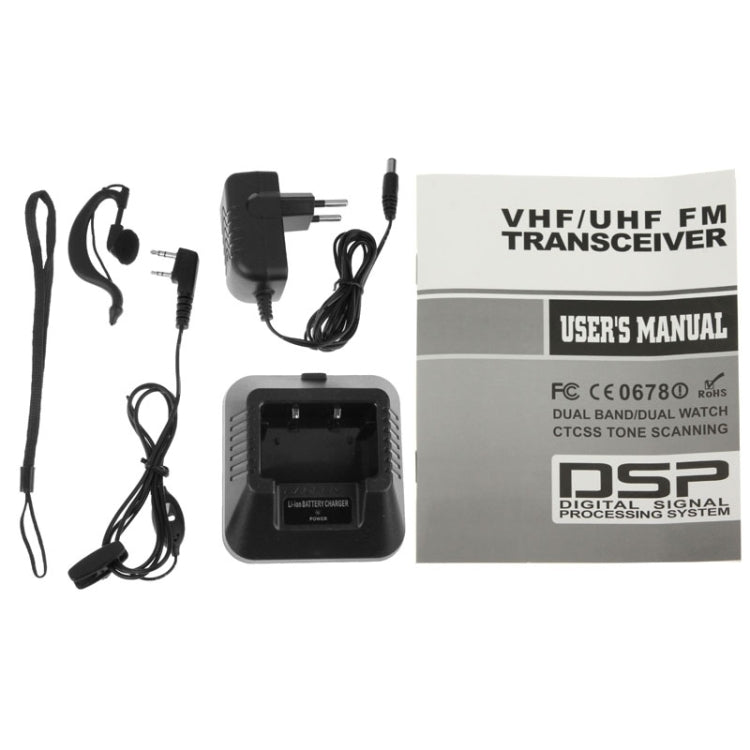

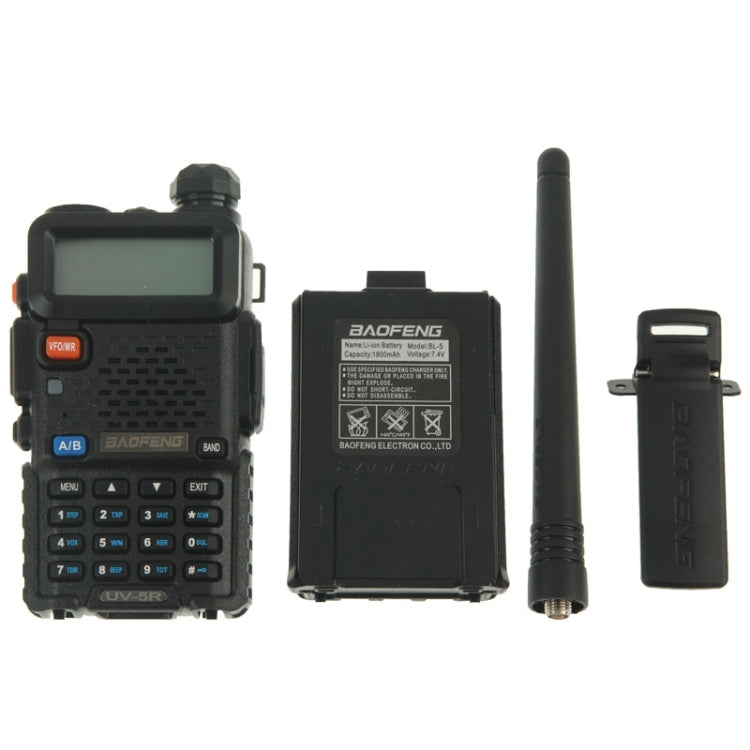

Package Include
|
| Package Contents |
1 x Walkie Talkie

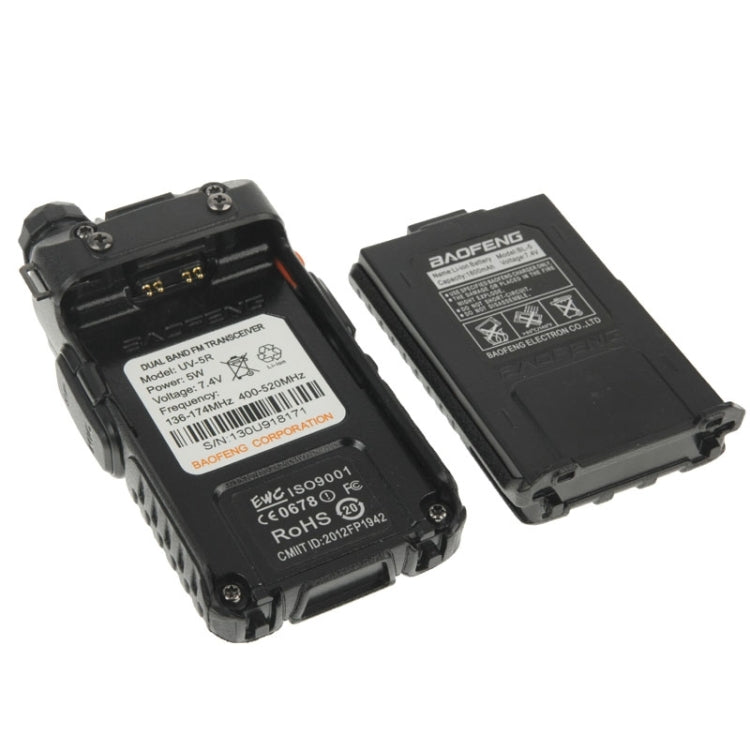

1 x Rechargeable Battery
1 x Charger Base

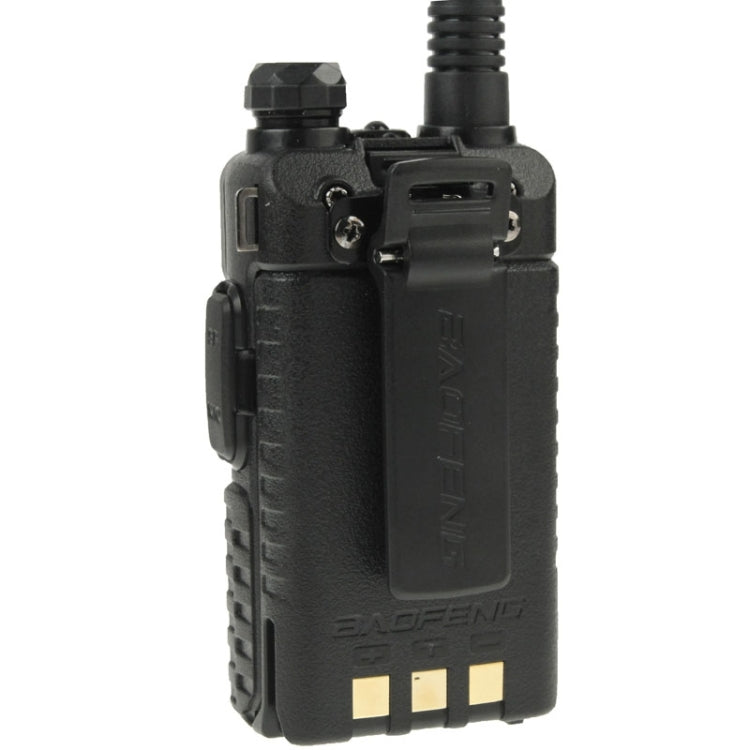

1 x Belt-clip
1 x Strap
1 x User Manual |
|
|
Package Weight
|
| One Package Weight |
0.50kgs / 1.10lb
|
| Carton Weight |
11.00kgs / 24.25lb
|
| Carton Size |
52cm * 24cm * 38cm / 20.47inch * 9.45inch * 14.96inch
|
| Loading Container |
20GP: 562 cartons * 20 pcs = 11240 pcs
40HQ: 1305 cartons * 20 pcs = 26100 pcs
|
|
