Feature:
1. For 86.5mm road bike bottom bracket frame.
2. Compatible with 24x24mm Shimano or 24x22mm SRAM GXP with a conversion ring.
3. Special threaded interlocking bottom bracket to reduce noise and for easy installation and maintenance.
4. Double O ring keeps water or dust out of the frame and works as the buffer between the frame and BB.
5. Aluminum alloy construction for long service time.
Material: Aluminum+Bearing

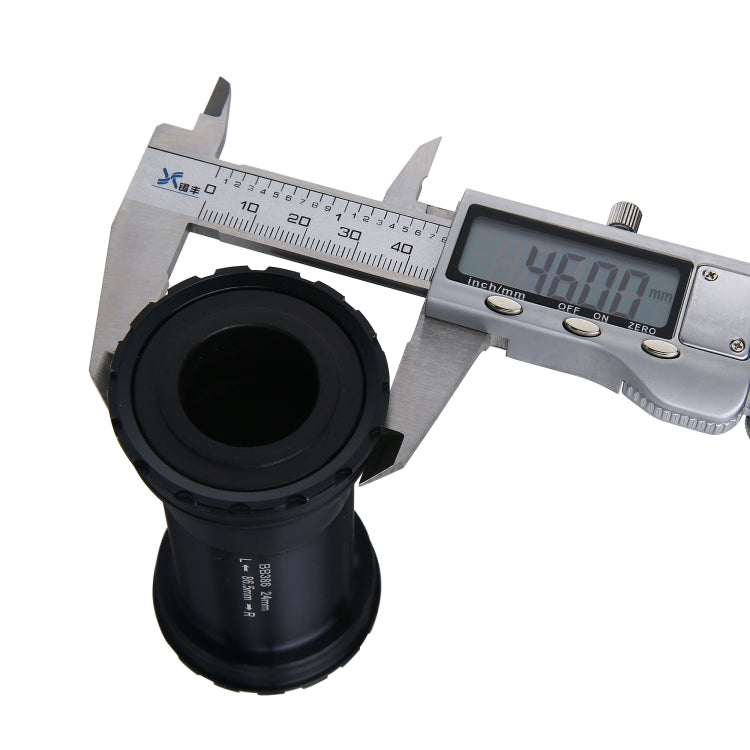

Outer diameter: 46mm

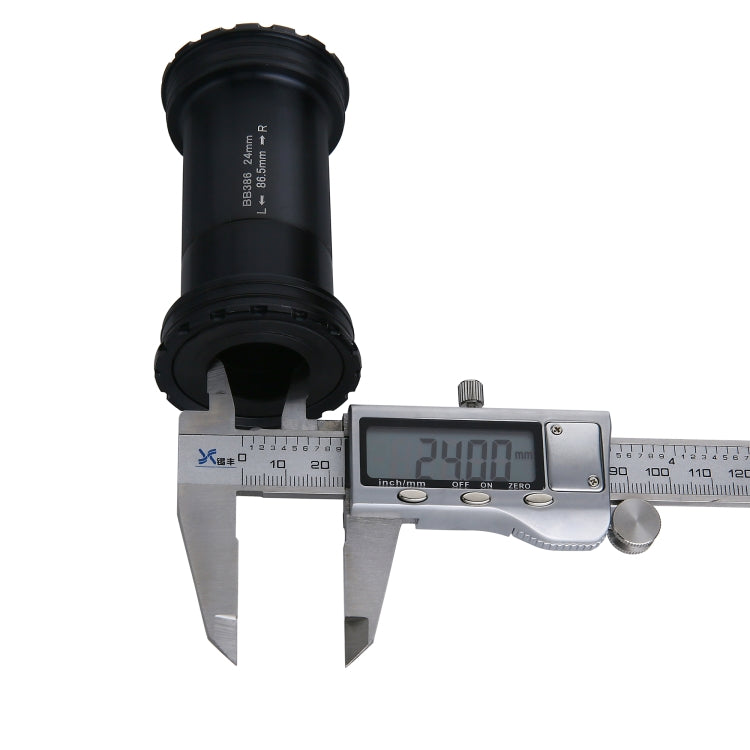

Inner diameter: 24mm(use conversion sleeve transform 24mm to 22mm)
Weight: 105g
Spec: Press-Fit style and Interlock design, fit for SRAM(use conversion sleeve transform 24mm to 22mm), SHIMANO ,FSA,
BB length fit for 86.5mm length frame used.
Packing list:
1 x Bottom Bracket
1 x Conversion Ring
Specification:
|
Package Weight
|
| One Package Weight |
0.15kgs / 0.33lb
|
| Carton Weight |
13.20kgs / 29.10lb
|
| Carton Size |
40cm * 27cm * 27cm / 15.75inch * 10.63inch * 10.63inch
|
| Loading Container |
20GP: 914 cartons * 100 pcs = 91400 pcs
40HQ: 2122 cartons * 100 pcs = 212200 pcs
|
|
