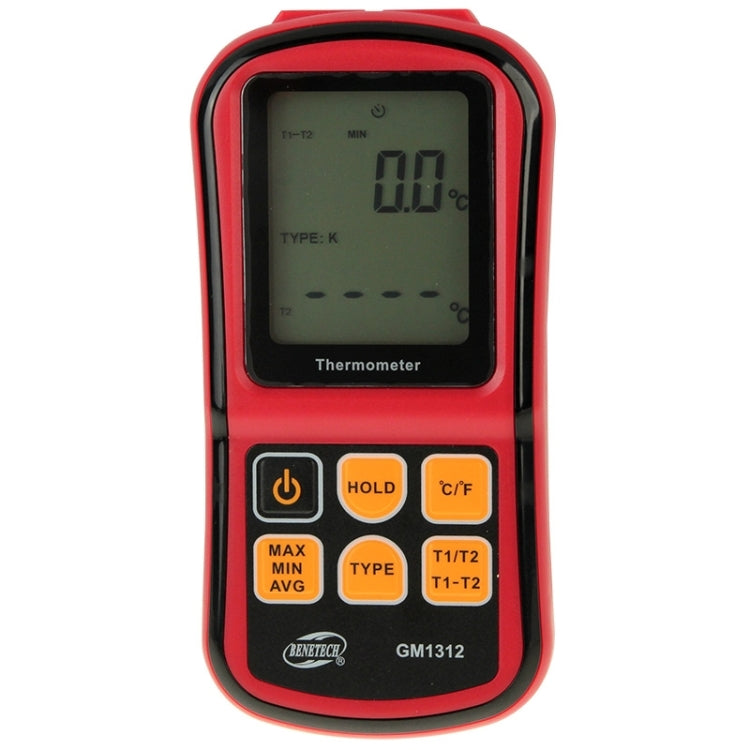

About the product1. The electrical compensation function provide the compensation to the thermocouple error so as to improve the overall precision
2. To measure the thermocouple of J, K,T,E,N and R type.
3. Unit Celsius and fahrenheit unit
4. Human centered design, easy operation

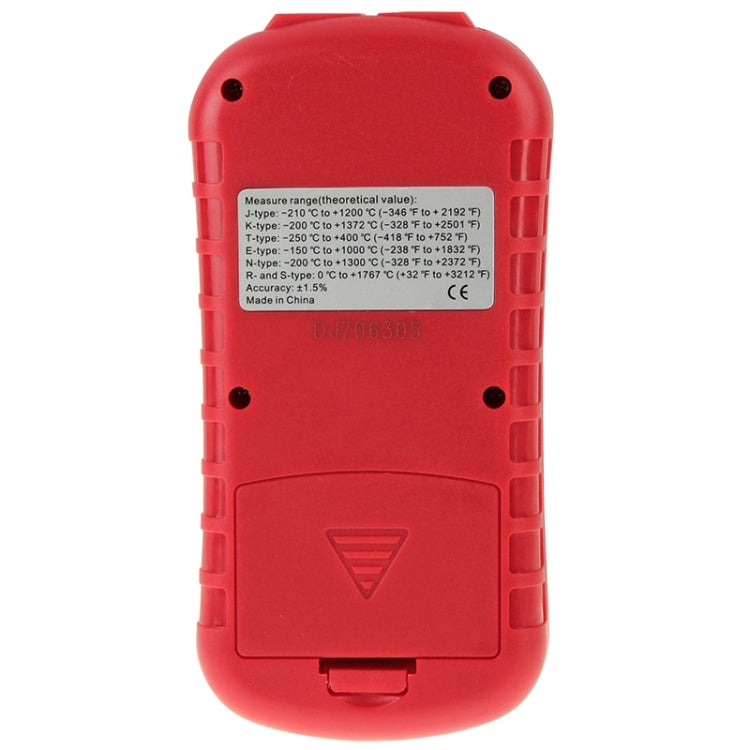

5. Measuring Range:
J-type: -210C to 1200C (-346F to 2192F)
K-type: -200C to 1372C (-328F to 2501F)
T-type: -250C to 400C (-418F to 752F)
E-type: -150C to 1000C (-238F to 1832F)
N-type: -200C to 1300C (-328F to 2372F)
R-type: 0C to 1767C (32F to 3212F)
6. Resolution: 0.1C/F<1000Degree; 1.0C/=<1000Degree
7. Electrical compensation
8. C/F Switch
Specification:
|
General
|
| Operating Temperature |
0 ~ 40 Degree Celsius |
| Temperature Range |
-50 to 300C |
| Power Supply |

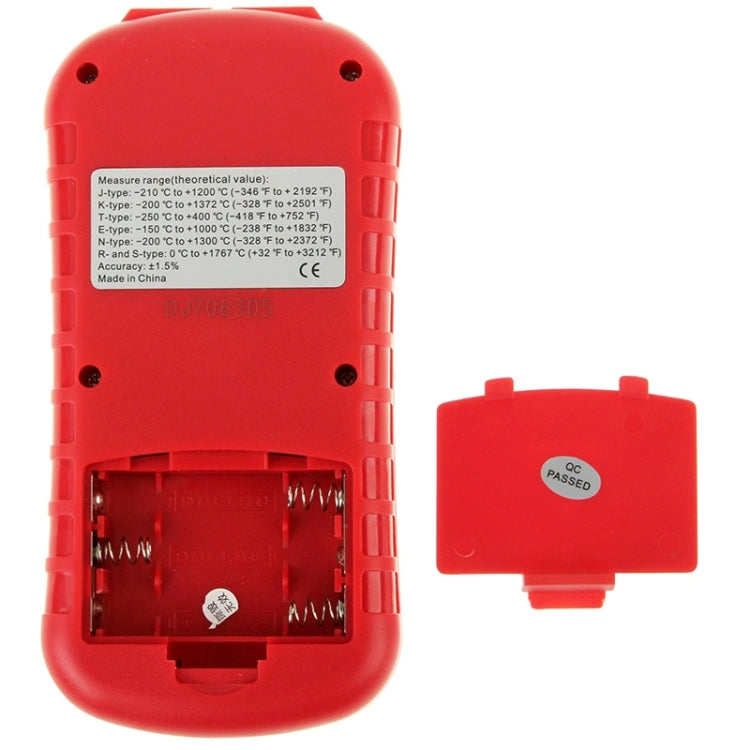

3*1.5V AAA batteries (not included) |
| Display Size |
145.5*29*72mm |
|
|

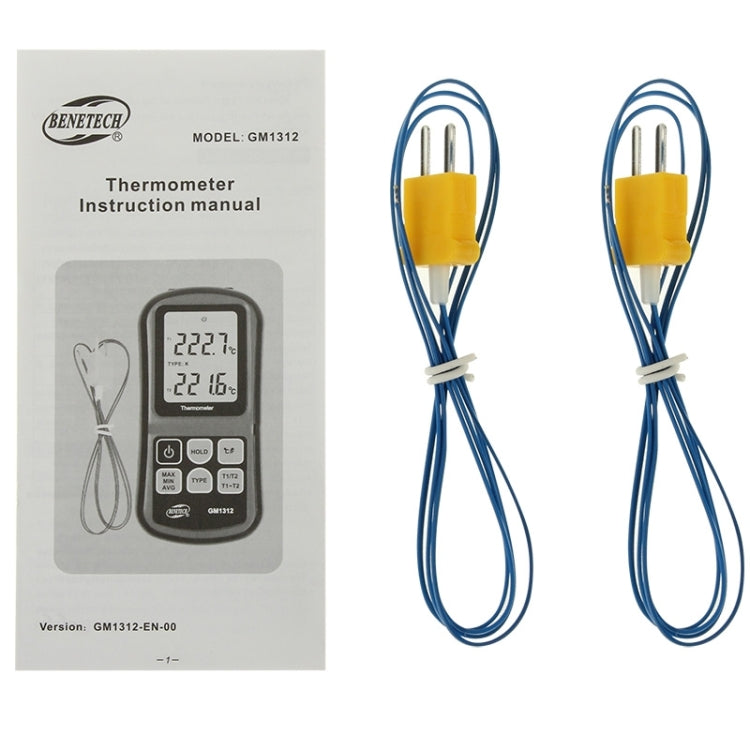

Package Include
|
| Package Contents |
1 x Manual
1 x Thermocouple
2 x Cables |
|
|
Package Weight
|
| One Package Weight |
0.23kgs / 0.52lb
|
| Carton Weight |
15.60kgs / 34.39lb
|
| Carton Size |
60cm * 43cm * 26cm / 23.62inch * 16.93inch * 10.24inch
|
| Loading Container |
20GP: 397 cartons * 60 pcs = 23820 pcs
40HQ: 922 cartons * 60 pcs = 55320 pcs
|
|
