About the product1. This product adopts piezoelectric effect of artificial polarized ceramic for design.
2. It is suitable for monitoring of all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery.
3. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc. field.

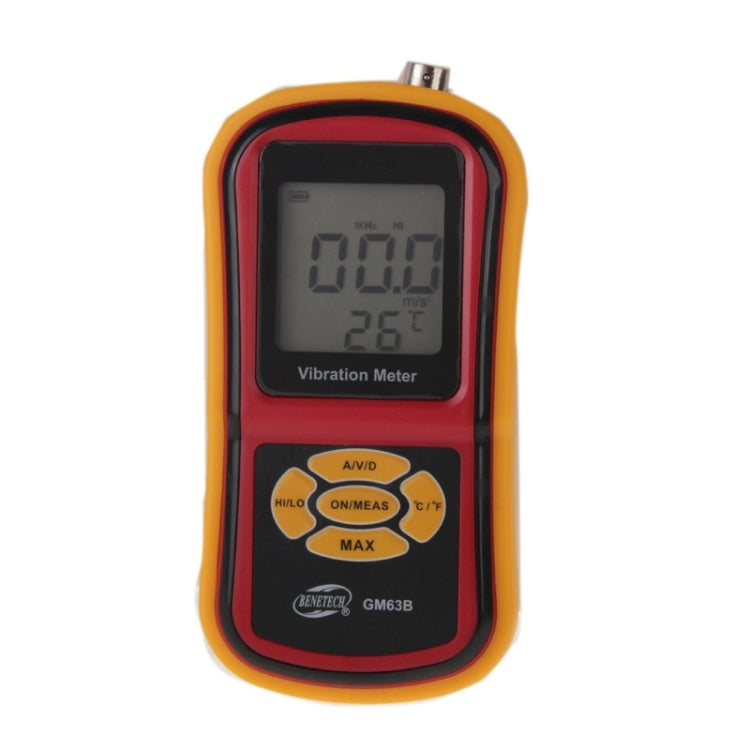

Features1. LCD displays measurement result and conditions directly
2. Measure acceleration, velocity and displacement
3. Selective vibration characteristic
4. Use hi-sense of vibration sensor, measuring accurately

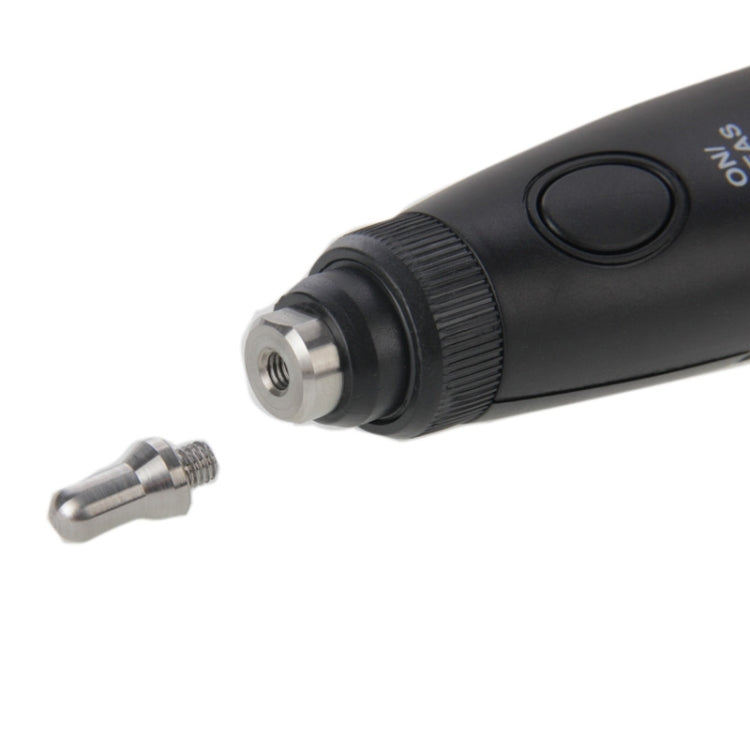

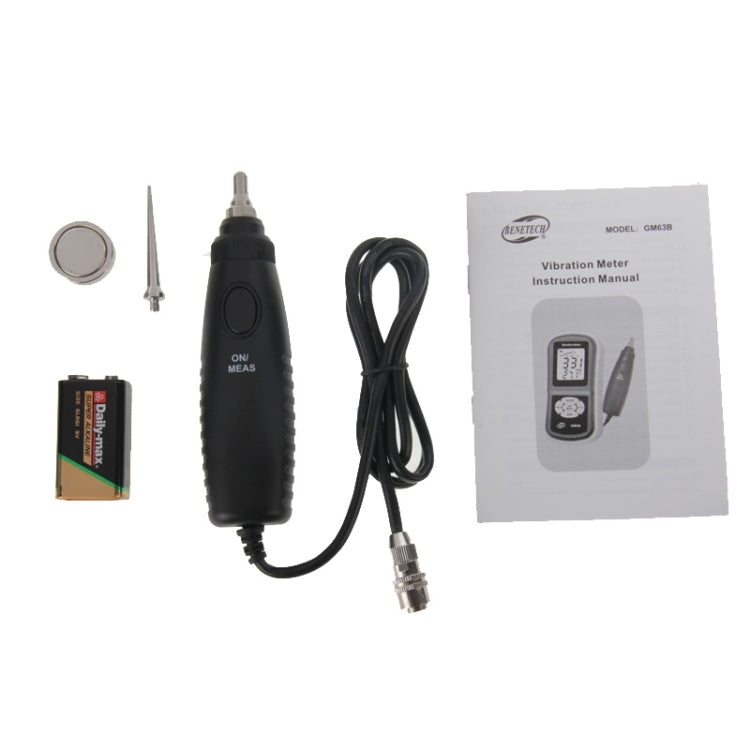

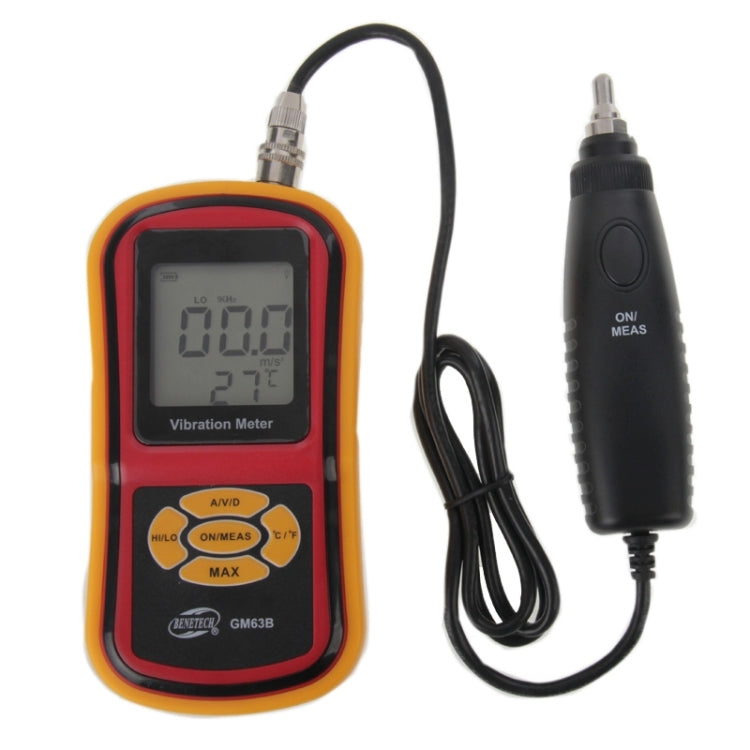

5. Equipped two probes (S and L) to adapt the different measurement requirement
6. Provide a magnetic probe to fit the condition uneasy hold on by hand
7. Low battery indication
8. Auto turn off function
9. LCD back light function
10. Maximum value hold function
11. Temperature unit Celsius Degree / Fahrenheit Degree selection
Specification:
|
General
|
| Operating Temperature |
0 ~ 40 Degree Celsius |
| Temperature Range |
-10-80 Celsius Degree |
| Operating Humidity |
30-90%RH |
| Display Update Cycle |
1 second |
| LCD Display |
3 1/2 Digits Display |

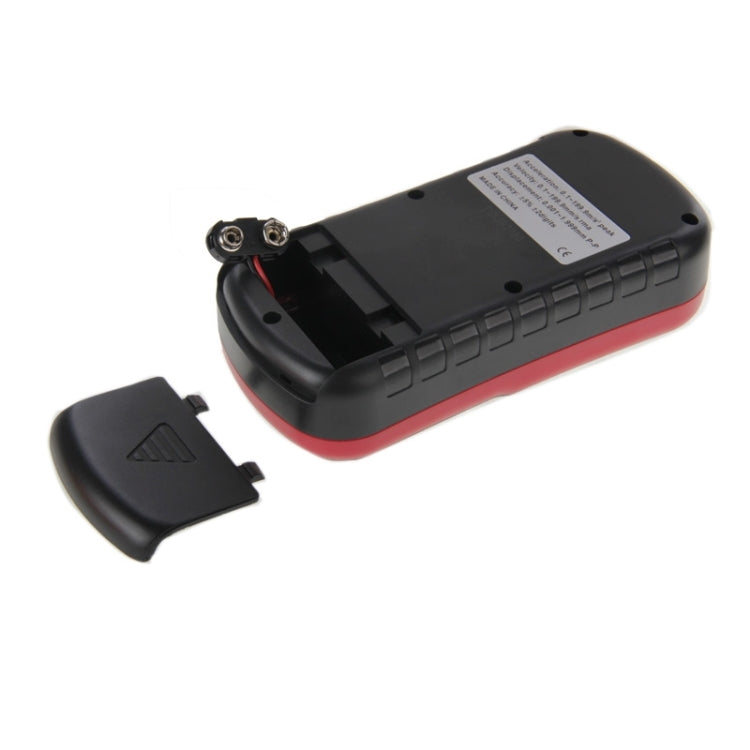

| Power Supply |
9V 6LR6I battery (included) |
| Battery Life |
20H Continuous Use |
| Measurement Range of Acceleration |
0.1~199.9 m/s2 Peak |
| Measurement Range of Velocity |
0.1~199.9mm/s rms |
| Measurement Range of Displacement |
0.001~1.999mm p-p |
| Measurement Frequency Range of Acceleration |
10Hz~1KHz(LO); 1KHz~15KHz(HI) |
| Measurement Frequency Range of Velocity |
10Hz~1KHz(LO) |
| Measurement Frequency Range of Displacement |
10Hz~1KHz(LO) |
|
|
Package Weight
|
| One Package Weight |
1.21kgs / 2.67lb
|
| Carton Weight |
11.90kgs / 26.23lb
|
| Carton Size |
50cm * 40cm * 30cm / 19.69inch * 15.75inch * 11.81inch
|
| Loading Container |
20GP: 444 cartons * 10 pcs = 4440 pcs
40HQ: 1031 cartons * 10 pcs = 10310 pcs
|
|
