Introduce:

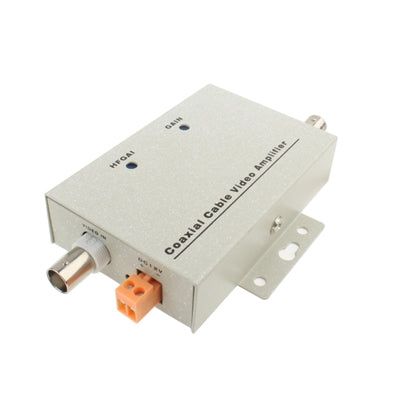

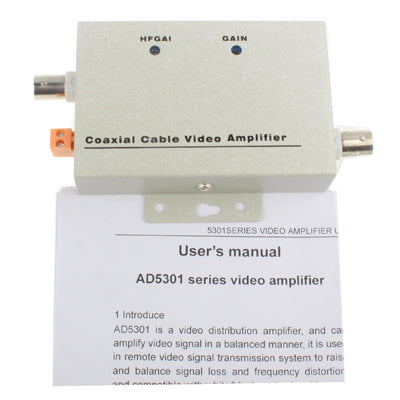

AD5301 is a video distribution amplifier, and can amplify video signal in a balanced manner, it is used in remote video signal transmission system to raise and balance signal loss and frequency distortior, and compatible with white / black and color video
Specification:
1) Input voltage: DC12V
2) Input / output load: 75ohm

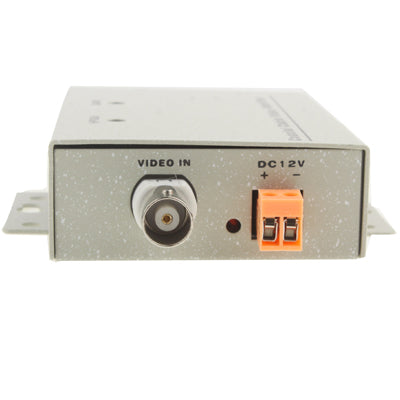

3) Input connector: 1BNC

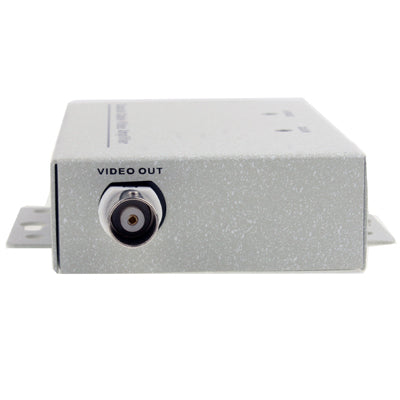

4) Output connector: 1BNC
5) Frequency response: adjustable
6) Bandwidth(-3db): 10Hz to 7.5MHz
7) Gain: adjustable and max up to 6dB
8) Max output video voltage: 2.5V
9) Temperature: -10 to 45°C
10) Humidity: max up to 90%
Specification:
|
Package Weight
|
| One Package Weight |
0.21kgs / 0.46lb
|
| Carton Weight |
6.30kgs / 13.89lb
|
| Carton Size |
30cm * 20cm * 20cm / 11.81inch * 7.87inch * 7.87inch
|
| Loading Container |
20GP: 2222 cartons * 24 pcs = 53328 pcs
40HQ: 5158 cartons * 24 pcs = 123792 pcs
|
|
