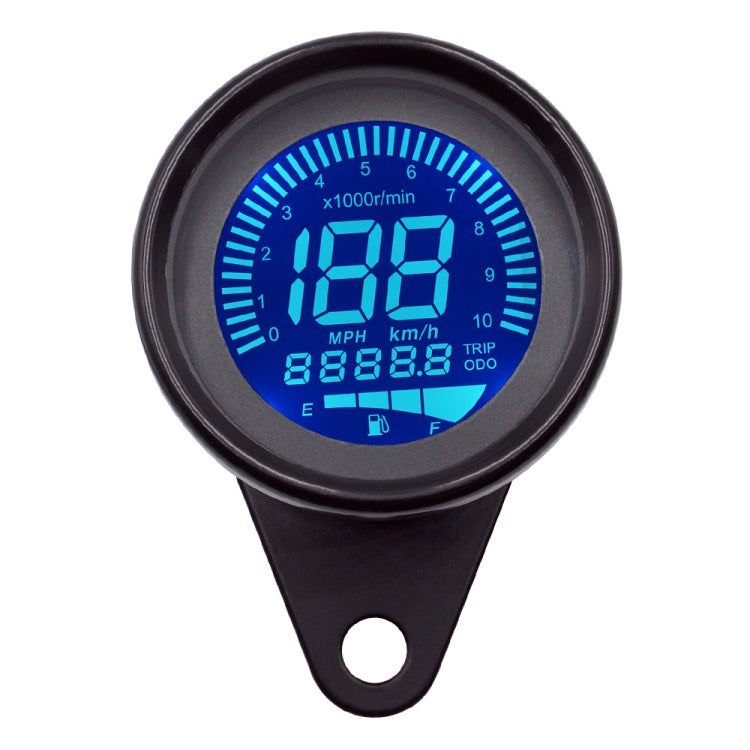

CS-636B1 Motorcycle Multi-functional Modification Instrumentation Motorcycle Odometer Speedometer Tachometer Oil Gauge (Black)

1. A high cost performance meter that contains four functions, tachometer, speedometer, odometer, fuel gauge.

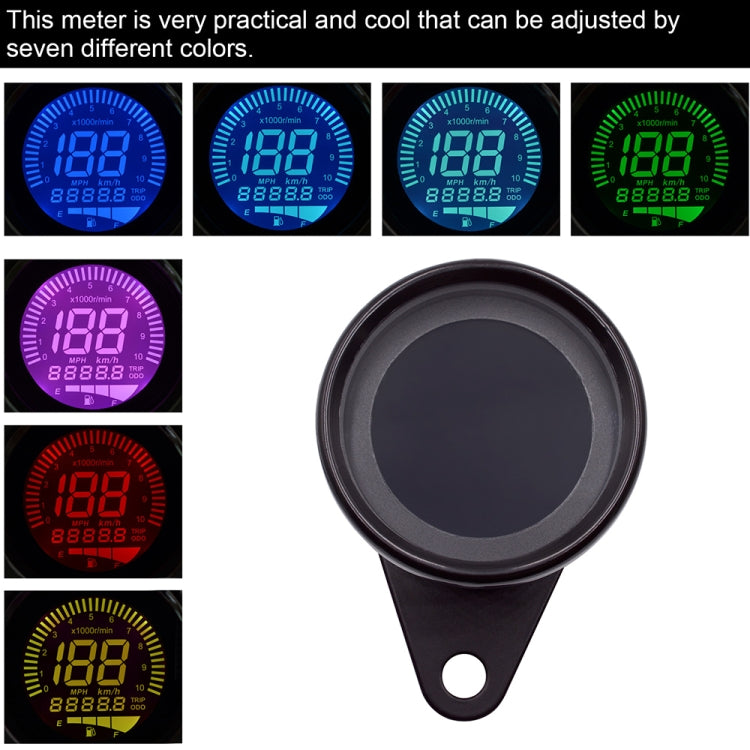

2. A total of 7 color backlight, can be freely switched.
3. This meter is very practical and cool that can be adjusted by seven different colors.

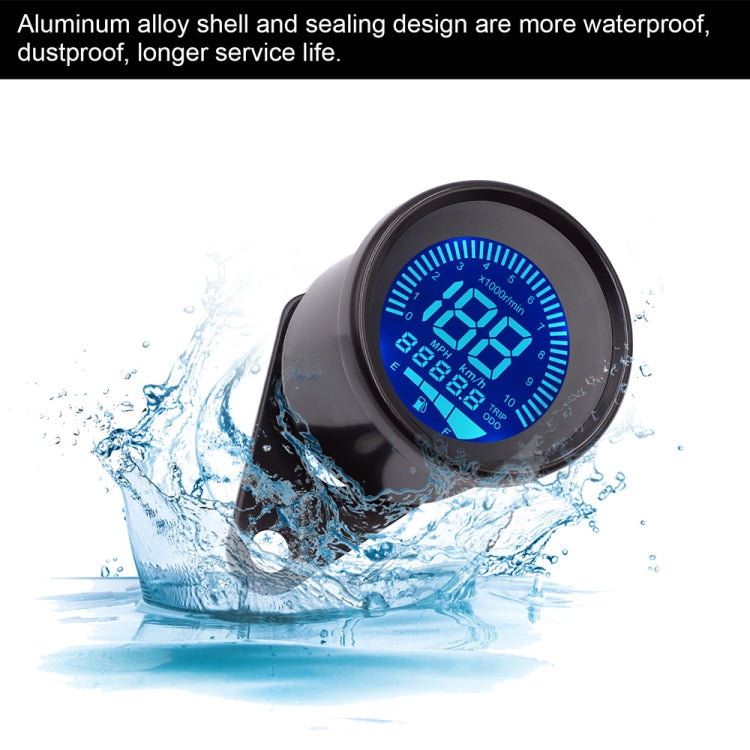

4. Aluminum alloy shell and sealing design are more waterproof and dust-proof.
5. It has a longer service life.
6. Product function: (1)Speedometer, maximum display 199.
(2)Tachometer, maximum 10000 RPM
(3)Oil meter, two line (8-98 euros) and three line (33-565 euros)
(4)Odometer, accumulative ODO and return zero TRIP, the default display of ODO

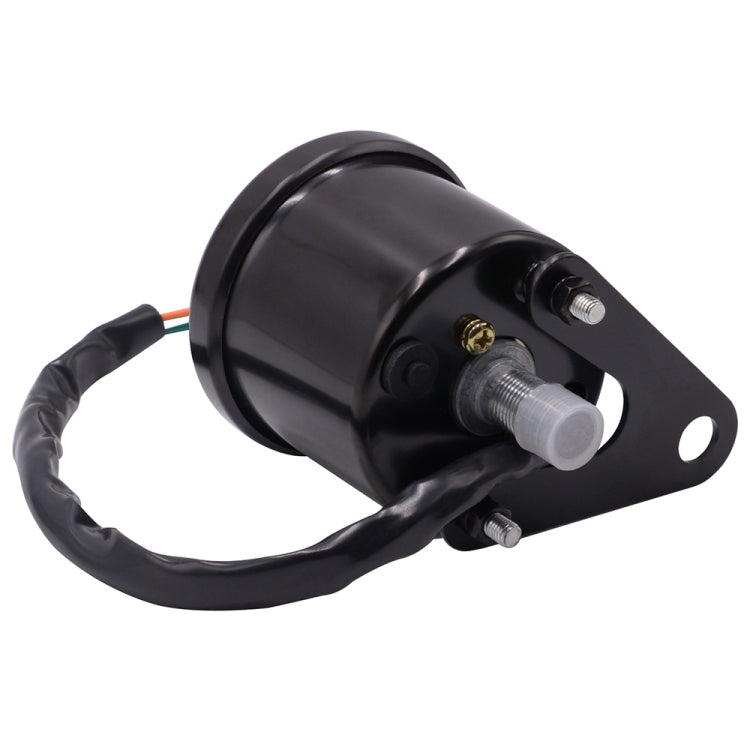

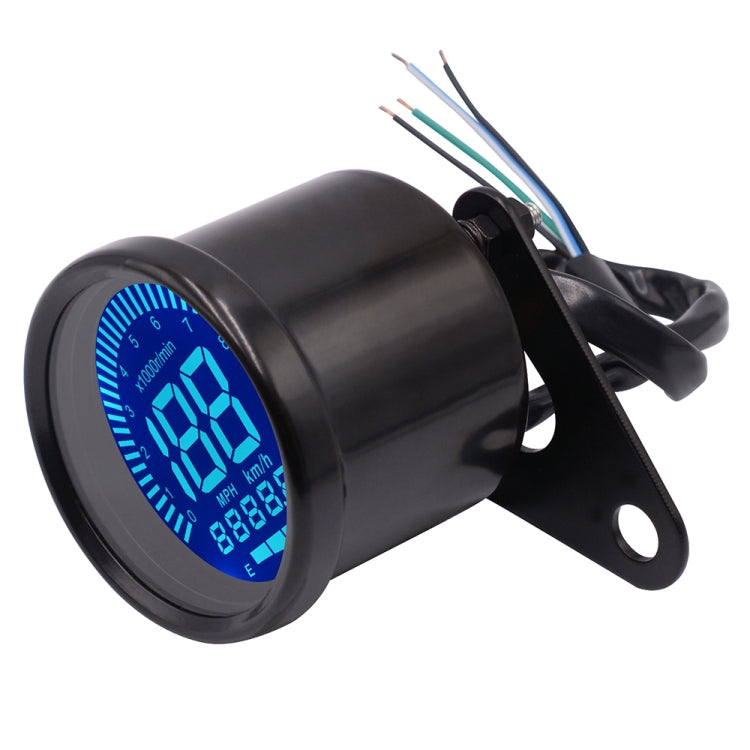

7. Connection method: Black-positive wire;
Green-negative wire;
Black&red-Extreme speed signal line;
Blue&white-Oil signal.
8. Setting method:

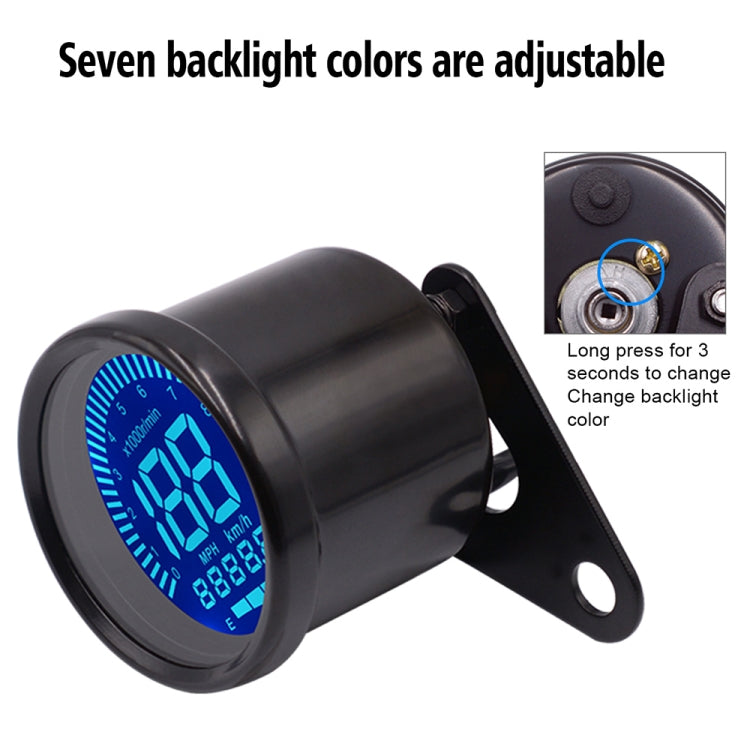

(1). Backlight, a total of 7 colors, can be switched freely: press the button for 3 seconds to switch the backlight color when the odometer is ODO.
(2). KM/H and MPH switching: press and hold the button without releasing and then open the electric door, the screen displays P0000, then the one digit 0 flashes, long press to jump to ten digits 0 flashes, short press ten digits to display 1, long press to jump to the hundred digits flashing, short press hundreds of digits for 6 times to display 6. Press and hold for thousands of digits, and press 6 times to display 6 digits. At this time, the screen displays 00466, which means that 46.6HZ corresponds to 60KM/H. Short press to skip (this item is not set). At this time, the screen displays 1001, 1001 indicates KM/H. If you want to switch to MPH, press and hold the one-bit flashing. Long press to switch to 1002, indicating that it is set to MPH. Short Press to jump to the next item.
(3). Speed cylinder number setting... Connect to the above, short press the screen to display 2002, indicating that this time is 2 cylinders (166HZ corresponds to 10*1000RPM/MIN), short press to skip, long press one digit flash, then long press one digit 2 is switched to 4, indicating that it has been switched to 4 cylinders (333HZ corresponds to 10*1000RPM/MIN), short press to jump to the next item.
(4). Oil meter setting...... Connected to the above, short press the screen to display 3002, indicating that this is a 2-line oil meter, short press all settings to successfully save and exit, long press single digit flash, then long press display 3003, indicating that it has switched to 3-line oil meter, short Press Save to exit.
