Display Type:Digital Display
DC Voltage:200m-2000m-20-200-1000V

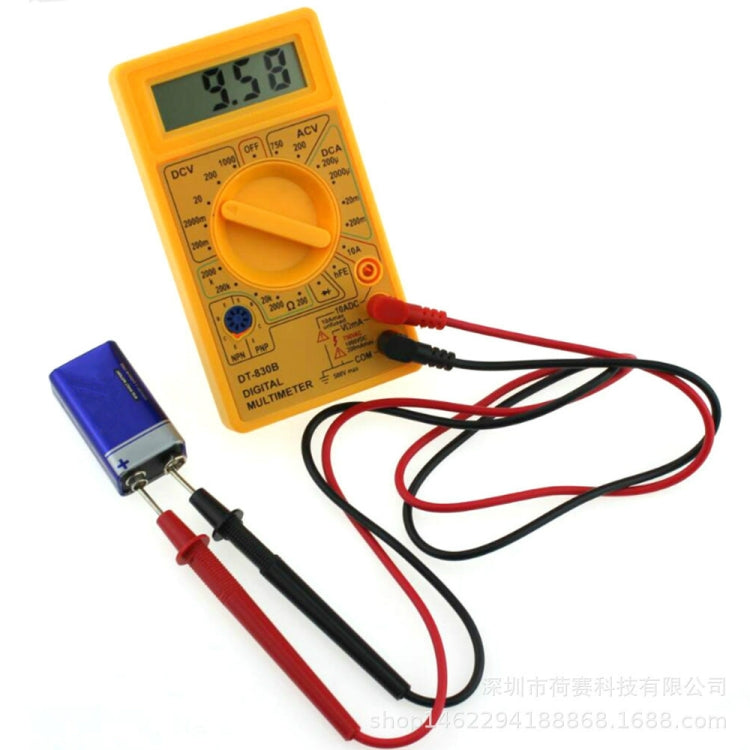

Model: DT-830B
Measuring range:
1.Max AC Current: 10A
2.Max AC Voltage range: 1000V
3.Max DC Voltage range: 750V
4.Resistance Measurement: 200 Ohm-2000K Ohm range
5.Temperature Test: -40-1000 ℃
6.Power Supply: 9V Battery (Not Included Here)
7.Color: Black /Yellow
8.Size: Approx. 123 x 67 x 20mm/4.84 x 2.63 x 0.78'' (L*W*H)
Scale degree & Accuracy:
1..DC voltage: 200mV 100uv±(0.5% + 2)
2000mv 1mv
20v 10mv
200v 100mv
1000v 1v±(0.8% + 2)
2.AC voltage: 200V 100mv±(1.2% + 10)
750v 1v
DC current: 2000ua 1ua±(1% + 2)
20ma 10ua
200ma 100ua±(1.2% + 2)
10a 10ma±(2% + 2)
3.Resistance: 200Ω0.1Ω±(0.8% + 2)
2000Ω1
20kΩ10
200kΩ100
2000kΩ1000Ω±(1% + 2)
4.Temperature: -40-1000℃ 1℃±3%

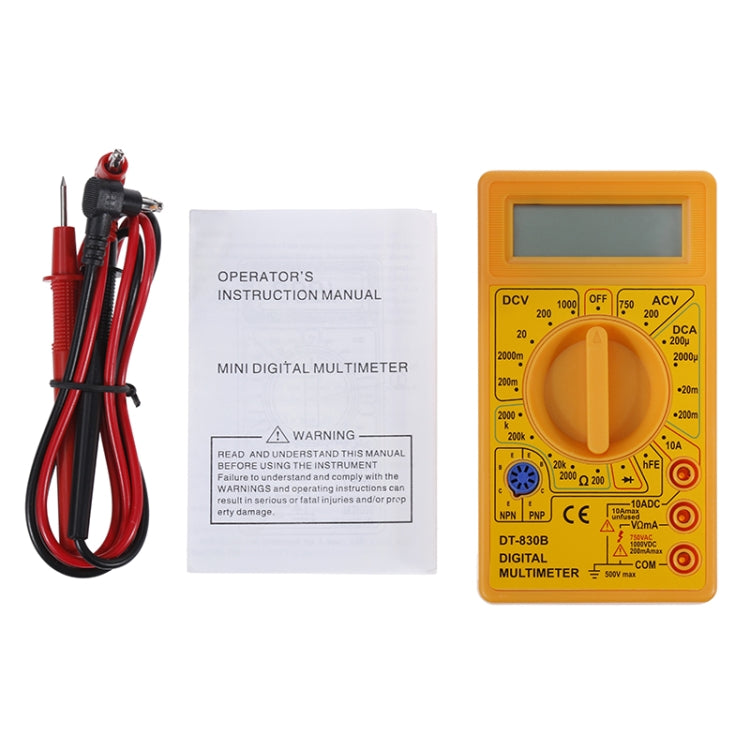

Package Included
1xDigital Multimeter (without battery)
2x Line
1xManual
Specification:
|
Package Weight
|
| One Package Weight |
0.13kgs / 0.30lb
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
72cm * 38cm * 24cm / 28.35inch * 14.96inch * 9.45inch
|
| Loading Container |
20GP: 406 cartons * 112 pcs = 45472 pcs
40HQ: 942 cartons * 112 pcs = 105504 pcs
|
|
