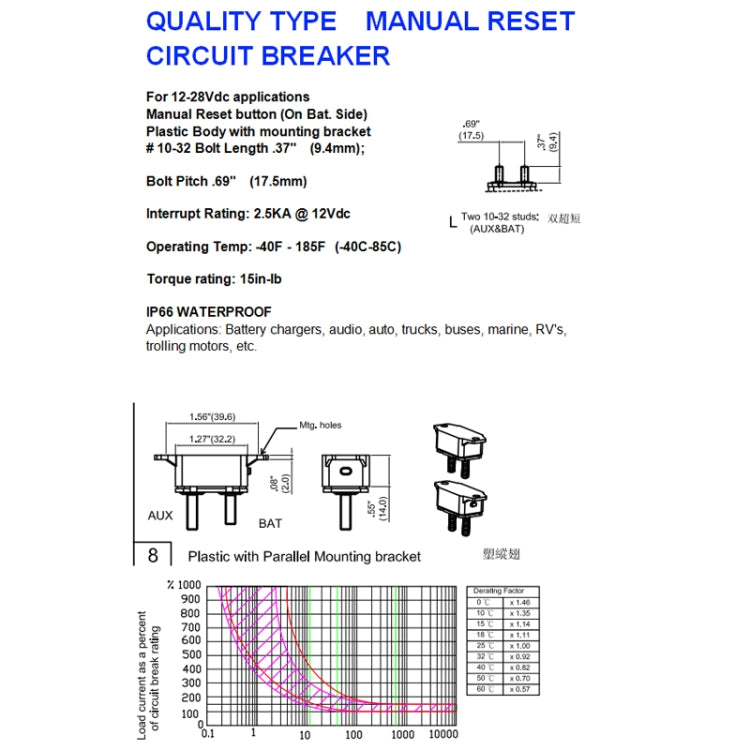

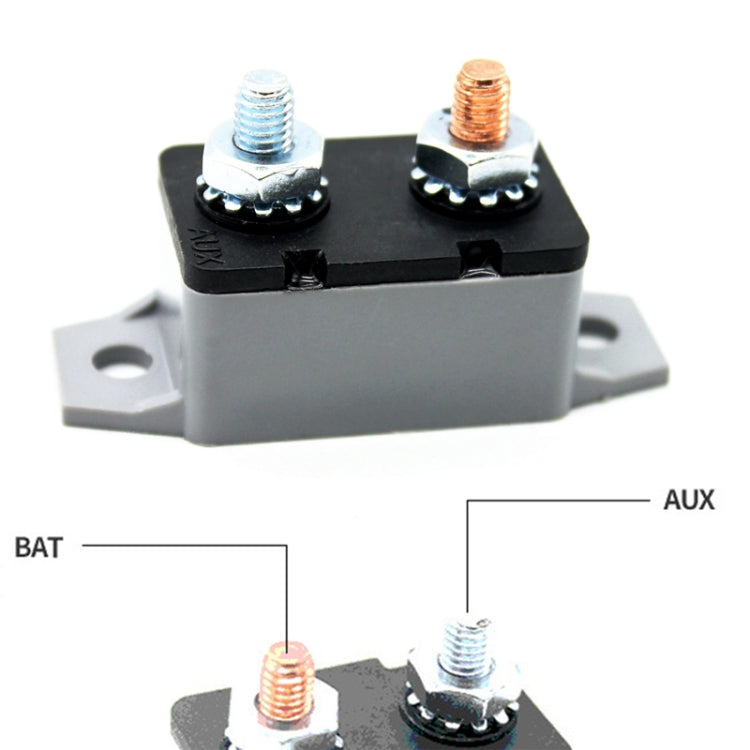

1. Rated voltage: 6-28V
2. Bolt length: 37in (9.4mm); bolt spacing: 69in (17.5mm);Wing mounting hole spacing: 1.56in (39.6mm)
3. Interrupt rating: 2.5KA @ 12Vdc
4. Operating temperature: -40-85 degrees centigrade
5. Torque level: 15in-lb
6. IP66 waterproof: IP66 on plastic cover(except for terminal)
7. Applications: battery chargers, stereos, cars, trucks, buses, ships, recreational vehicles, trailer motors, etc.
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.06lb
|
| Carton Weight |
7.50kgs / 16.53lb
|
| Carton Size |
30cm * 20cm * 18cm / 11.81inch * 7.87inch * 7.09inch
|
| Loading Container |
20GP: 2469 cartons * 300 pcs = 740700 pcs
40HQ: 5731 cartons * 300 pcs = 1719300 pcs
|
|
