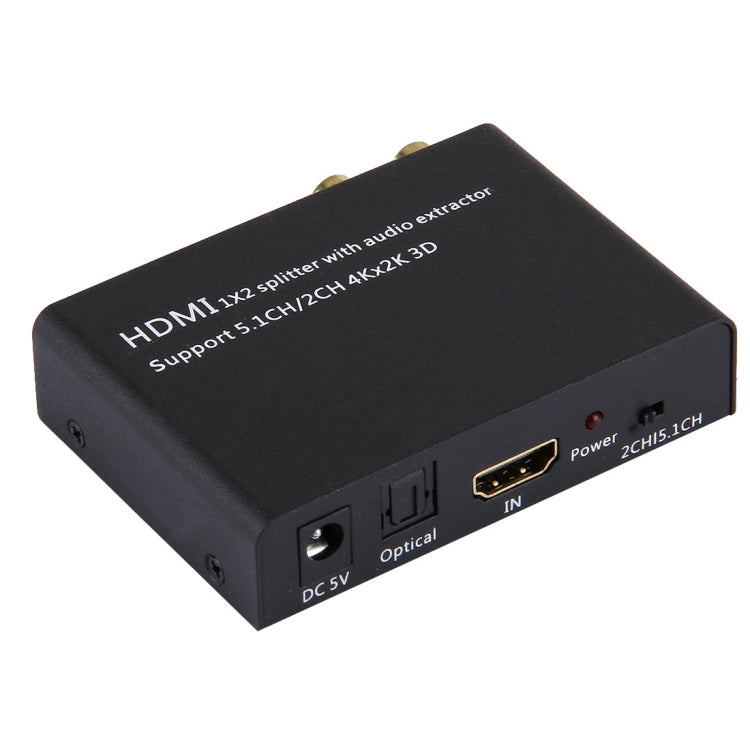

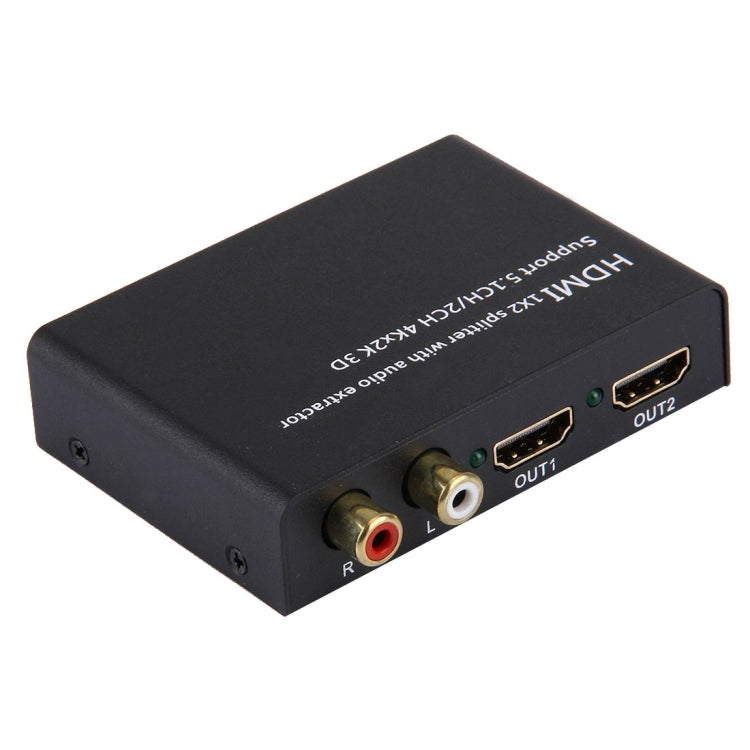

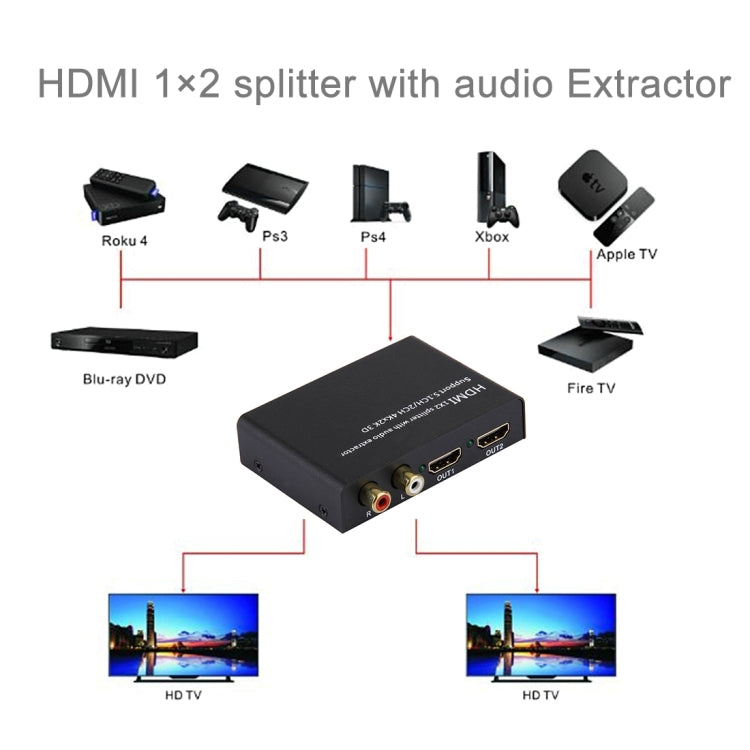

IntroductionThis 1x2 HDMI audio extractor can allow two HD display/TV connect to one HDMI source and show the same pictures. It can also synchronously extract HDMI digital audio signals to digital optical output or 2 channel analog audio outputs which could be connected to your amplifier after the internal DAC audio conversion.
Features1. Support HDMI 1.4b.
2. 1 x HDMI input, 2 x HDMI output, can achieve synchronous separation of HDMI audio signal. Support 1 x SPDIF optical digital audio output, 2 channel RCA analog audio outputs.
3. Support HDMI resolution up to 4K/30fs, 12bit deep color, full 3D video format.
4. Support SPDIF digital audio format: Dolby digital AC3, DTS, LPCM, Support 5.1CH output.
5. Support 2 reading modes of audio EDID, can switch between external EDID(TV) and built-in EDID (2CH/5.1CH) to select stereo output or 5.1CH audio output
6. LED indication: when source or interface is working, corresponding LED will light up.
7. Adopt 24bit/192KHz DAC, ensure high-quality sound.
8. No loss of signal.
9. Power by DC 5V/1A external power adapter.
Specification:
|
General
|
| Input Port |
AC 100-240V 50/60Hz (Charger) |
| Output Port |
DC 5V 1A (Charger) |
| Interface |
DC IN, 1 x HDMI IN, 2 x HDMI Out, 1 x Stereo Analog Audio Output, 1 x Optical |
| HDMI Resolution |
up to 4K/30fs |
| HDMI Audio Format |
DTS, Dolby-AC3, LPCM 5.1CH |
| Working Current |
600mA (Max) |
| Operating Temperature |
-10 to 55 Degree Celsius |
| Storage Temperature |
-20 ~ 60 Degree Celsius |
| Operating Humidity |
10 ~ 90 Percent RH (Non-condensing) |
| Storage Humidity |
5 ~ 95 % RH (Non-condensing) |
|
|

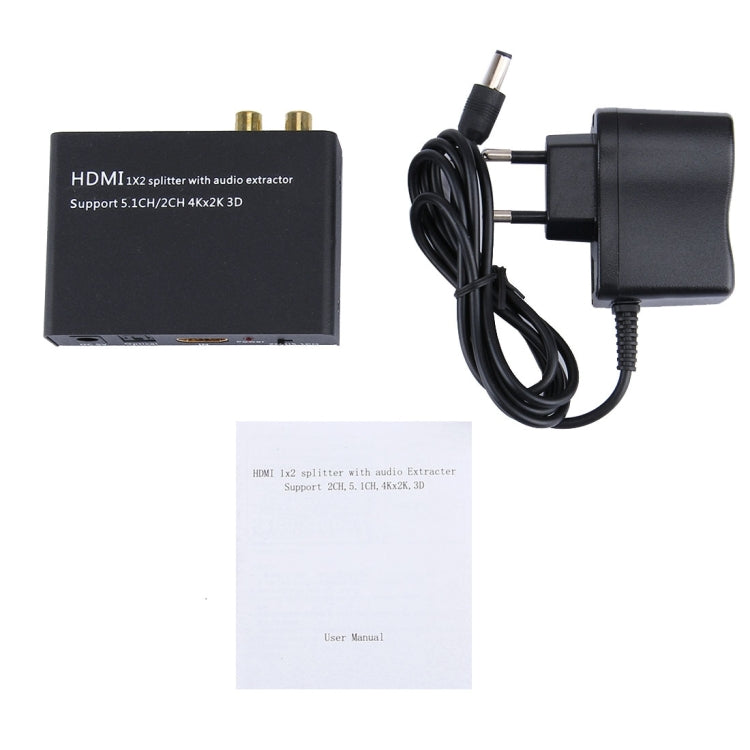

Package Include
|
| Package Contents |
1 x Power Adapter
1 x User Manual
1 x HDMI Splitter |
|
|
Package Weight
|
| One Package Weight |
0.32kgs / 0.71lb
|
| Carton Weight |
12.20kgs / 26.90lb
|
| Carton Size |
51cm * 32cm * 37cm / 20.08inch * 12.6inch * 14.57inch
|
| Loading Container |
20GP: 441 cartons * 40 pcs = 17640 pcs
40HQ: 1025 cartons * 40 pcs = 41000 pcs
|
|
