1. Support HDMI 1.4b.
2. Support HDMI resolution 4096*2160/30Hz.
3. Support HDMI 3.2Gbps data rate for tmds clock up to 320MHz.
4. Support 3D video format, MHL, ARC.
5. Support 8/10/12 bit deep color.
6. When input resolution is 1080p and below, support AWG26 HDMI standard cable input up to 15 meters length, output up to 25 meters ength.
7. When input resolution is 4K, support AWG26 HDMI standard cable input up to 12 meters length, output up to 15 meters ength.
8. Support 3.5mm audio output and optical output.
9. Support four HDMI input to be switched or split two HDMI output.
10. Support 5.1 audio channel.
11. Support single high definition display and multiple output HD signal sources, such as DVD players, A/V receivers and set top boxes.
12. Support 5V-12V power adapter.
Specification:
|
General
|
| Types |
HDMI Switch, Splitter |
| HDMI Resolution |
4096*2160@30Hz |
| Power Supply |
DC 5.0V / 2.0A |
| Transmission Rate |
3.2Gbps |
| HDMI Audio Format |
DTS-HD, Dolby-TrueHD, DTS, Dolby-AC3, DSD |
| Input Cable Distance |
Less than 12-15m |
| Output Cable Distance |
Less than 15-25m |
| Operating Temperature |
-15-55 Degree Celsius |
| Operating Humidity |
5 ~ 90 Percent RH (No condensing) |
| ESD Protection Human Body Model |
+-8kV (air-gap discharge)
+-4kV (contact discharge) |
|
|

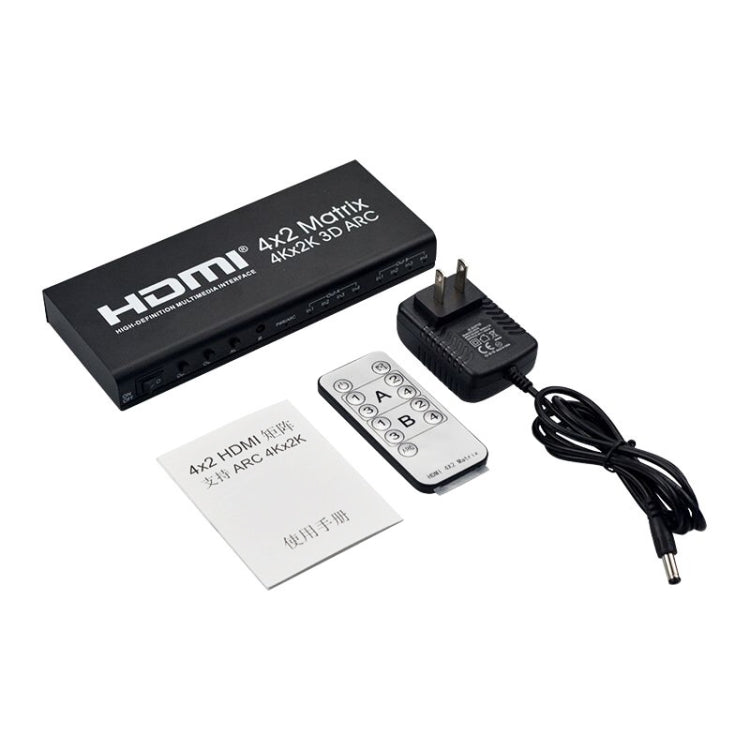

Package Include
|
| Package Contents |
1 x Power Adapter
1 x User Manual
1 x Remote Control
1 x HDMI Splitter
1 x Mounting Accessories Set |
|
|
Package Weight
|
| One Package Weight |
0.52kgs / 1.14lb
|
| Carton Weight |
12.50kgs / 27.56lb
|
| Carton Size |
46cm * 36cm * 29cm / 18.11inch * 14.17inch * 11.42inch
|
| Loading Container |
20GP: 555 cartons * 20 pcs = 11100 pcs
40HQ: 1289 cartons * 20 pcs = 25780 pcs
|
|
