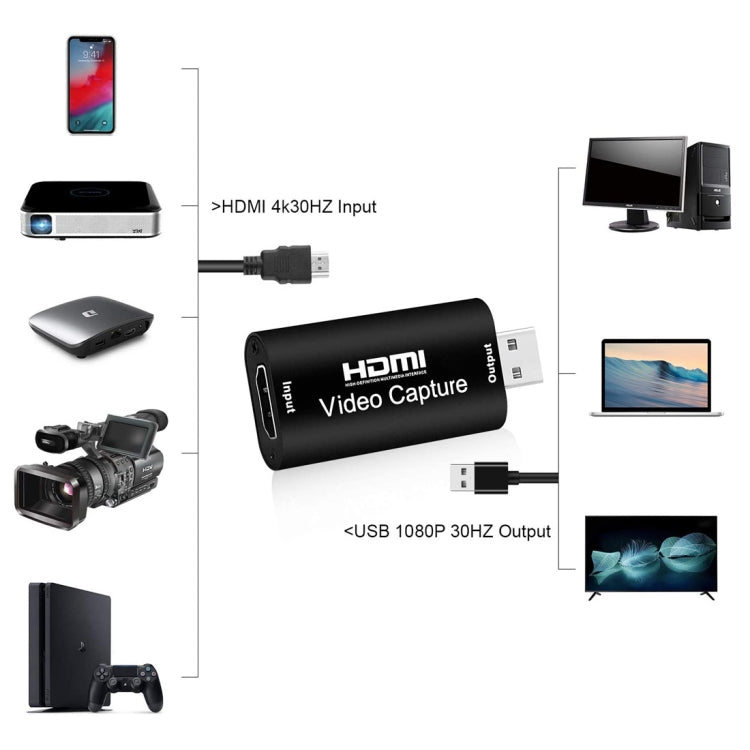

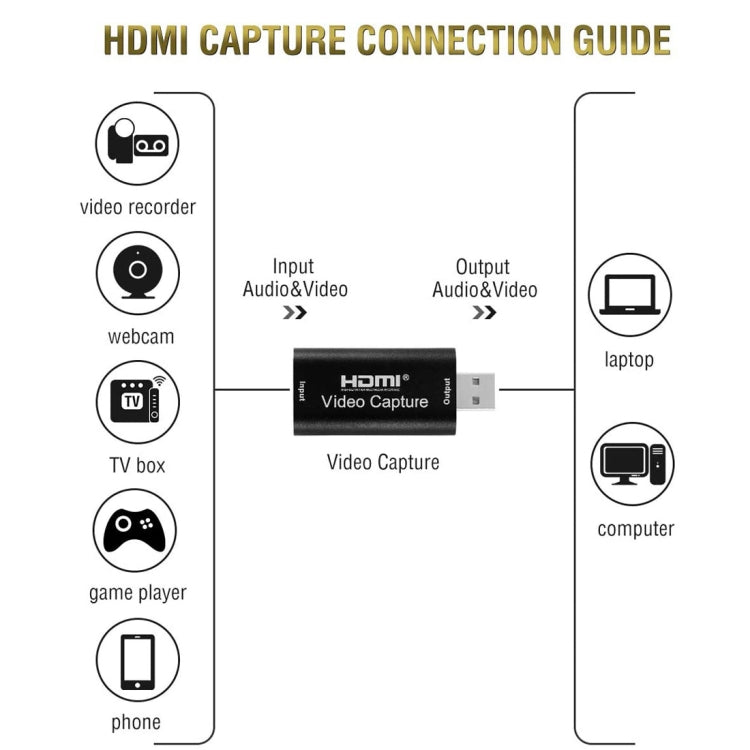

This USB 2.0 capture card can capture HDMI video and HDMI audio at the same time, and can transmit audio and video signals to a computer and smart phone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.
Product features:
1. Support input resolution up to 4K;
2. Support output resolution up to 1080P;
3. Support 8/10/12 bit color depth;
4. When using standard AWG26 cable, the maximum input transmission distance is 15 meters (1080P and below resolution);
5. Support most acquisition software, such as VLC, OBS, Amcap, etc.
6. Support Windows, Android and MacOS;
7. Comply with USB video UVC specifications;
8. Comply with USB audio UAC specifications;
9. No external power supply, compact size, easy to carry.
10. Interface: HDMI, USB
11. Dimensions: 6.4 x 2.8cm
Product specification:
1. HDMI resolution: input can support 4K
2. Video input format: 8/10/12-bit color depth
3. Video output mode: YUV, JPEG
4. Video output resolution: Maximum output resolution 1080P
5. Support audio format: L-PCM
6. Input cable length: =<15 meters, AWG26 HDMI standard cable
7. Working current: 0.4A/5VDC
8. Operating temperature range: -10 to +55a??
9. Dimensions: 64x28x13mm
10. Weight: 21.4g
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.12lb
|
| Carton Weight |
27.00kgs / 59.52lb
|
| Carton Size |
63cm * 39cm * 23cm / 24.8inch * 15.35inch * 9.06inch
|
| Loading Container |
20GP: 471 cartons * 500 pcs = 235500 pcs
40HQ: 1095 cartons * 500 pcs = 547500 pcs
|
|
