Features1. Microprocessor controlled Delta-peak sensitivity.
2. Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable
3. Large range of charge currents Store function, allows safe storage current
4. Time limit function
5. Input voltage monitoring. (Protects car batteries at the field)
6. Data storage (Store up to 5 packs in memory)
7. Battery break in and cycling.
8. Support new generation A123 system (LiFe) battery

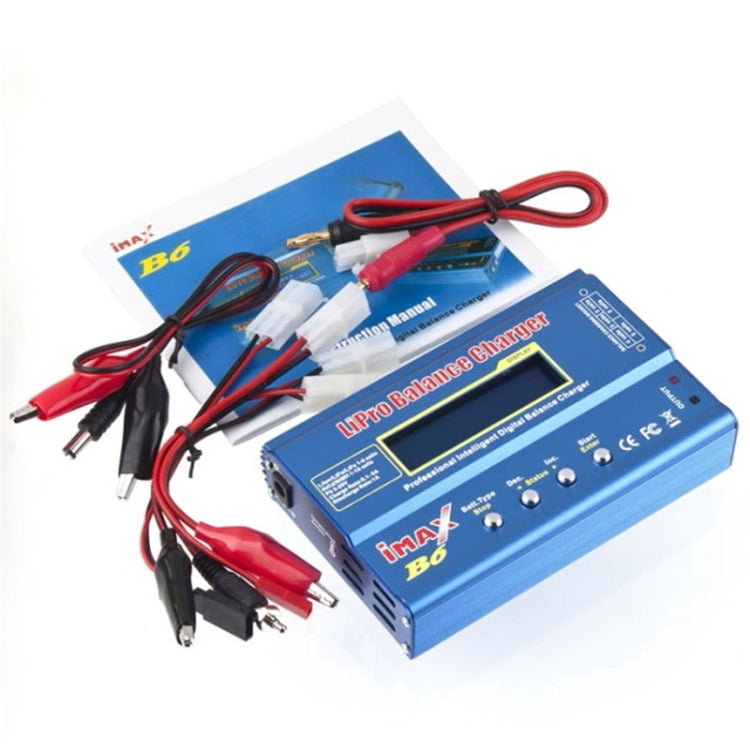

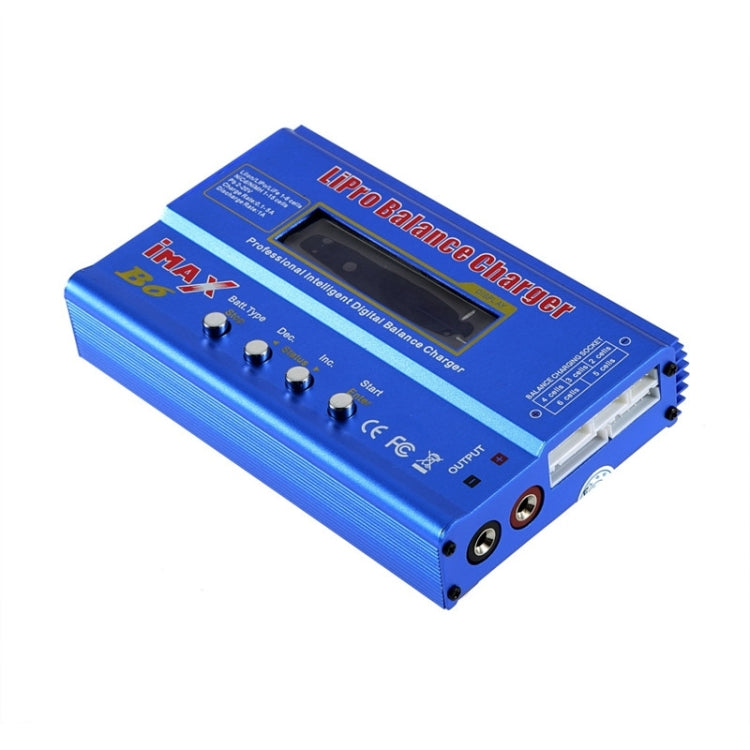

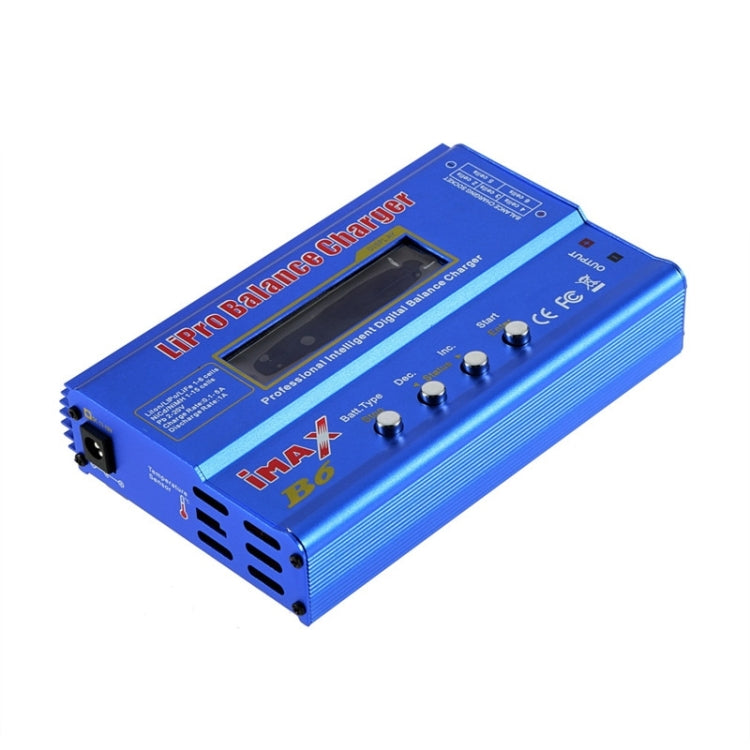

About the product1. IMAX B6 is the new intelligent multifunction charger which can charge and discharge for Lion, LiPo, LiFe (A123), Pb, NiCd and NiMH batteries. It's all-powerful in a way.
2. Current drain for balancing Li-po: 300mAH/cell
- LiIon/LiPo/LiFe cells : 1-6
- NiCd/NiMH cells : 1-15
- Pb battery voltage: 2~20v
Specification:
|
General
|
| Working Power |
Max.charge power 50W |
| Input Voltage |
DC11.0-18.0V |
| Discharge current |
0.1-1.0A |
|
|
Package Weight
|
| One Package Weight |
0.50kgs / 1.11lb
|
| Carton Weight |
12.50kgs / 27.56lb
|
| Carton Size |
45cm * 32cm * 28cm / 17.72inch * 12.6inch * 11.02inch
|
| Loading Container |
20GP: 661 cartons * 30 pcs = 19830 pcs
40HQ: 1535 cartons * 30 pcs = 46050 pcs
|
|
