1. Switch type: ON/OFF.
2. Use power:DC 12V/200mA.
3. Electric wire: 0.2sq length 30cm.
4. LED light color: White.
5. Double sided adhesive tape.
6. Adopt gumming button.
7. Confirm the capacity of the installation of electronic products, pay attention to the insulation of electronic products and fuses.
8. For safety reasons, please take off the battery cathode interface.

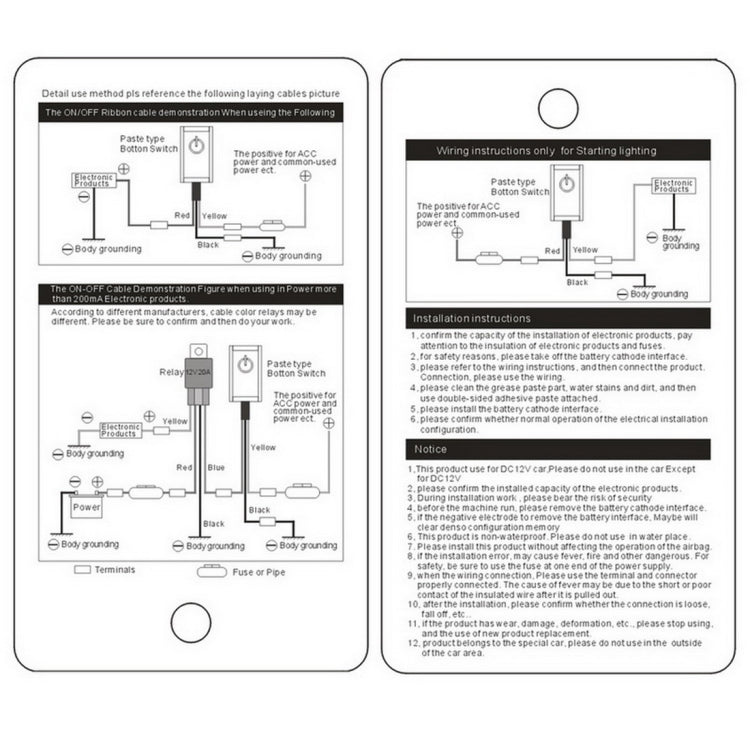

9. Please refer to the wiring instructions, and then connect the product. Connection, please use the wiring.
10. Please clean the grease paste part, water stains and dirt, and then use double-sided adhesive paste attached.
11. Please install the battery cathode interface.
12. Please confirm whether normal operation of the electrical installation configuration.
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.07lb
|
| Carton Weight |
3.99kgs / 8.80lb
|
| Carton Size |
27cm * 30cm * 23cm / 10.63inch * 11.81inch * 9.06inch
|
| Loading Container |
20GP: 1431 cartons * 110 pcs = 157410 pcs
40HQ: 3322 cartons * 110 pcs = 365420 pcs
|
|
