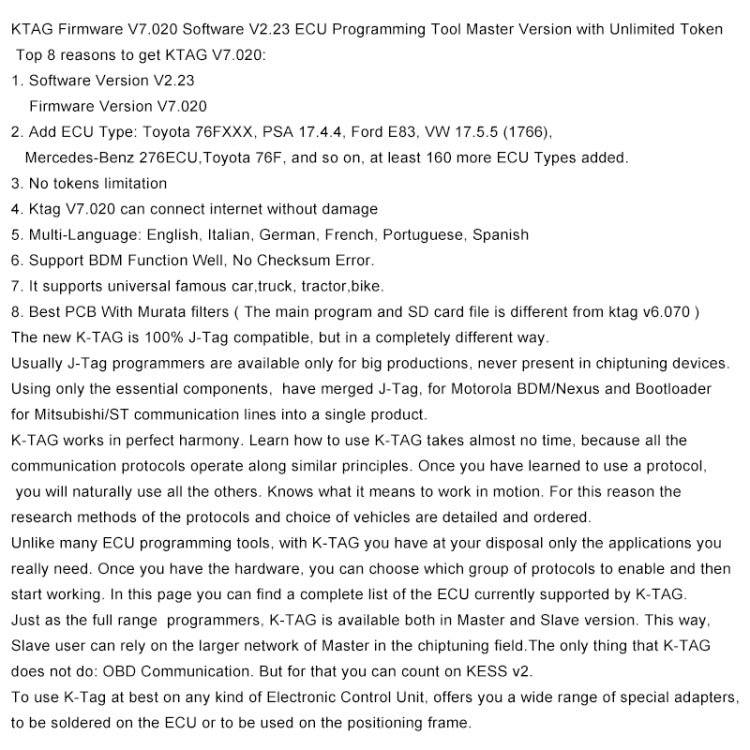

1. Software Version V2.23; Firmware Version V7.020

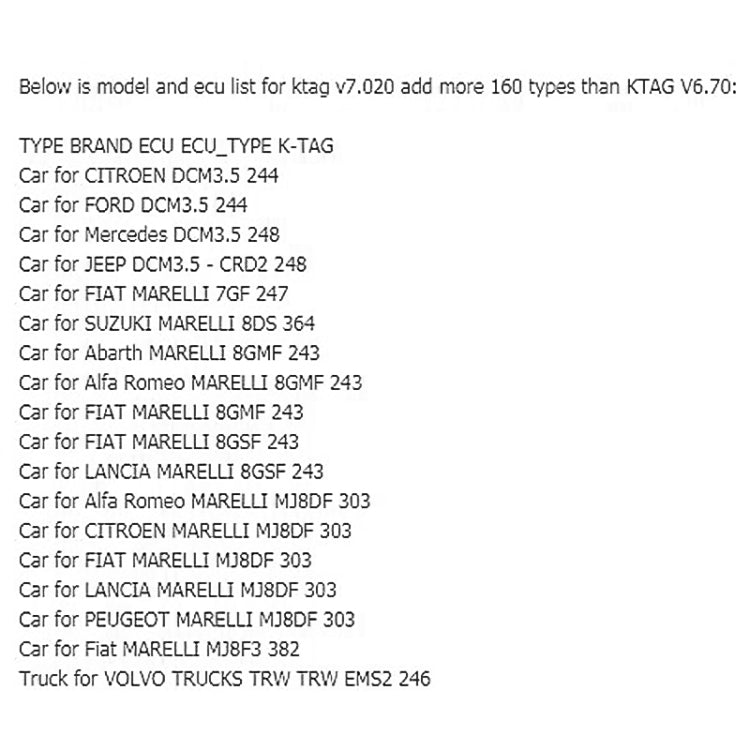

2. Add ECU Type: Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276ECU,Toyota 76F, and so on, at least 160 more ECU Types added.
3. No tokens limitation
4. Ktag V7.020 can connect internet without damage
5. Multi-Language: English, Italian, German, French, Portuguese, Spanish
6. Support BDM Function Well, No Checksum Error.
7. It supports universal famous car,truck, tractor,bike.

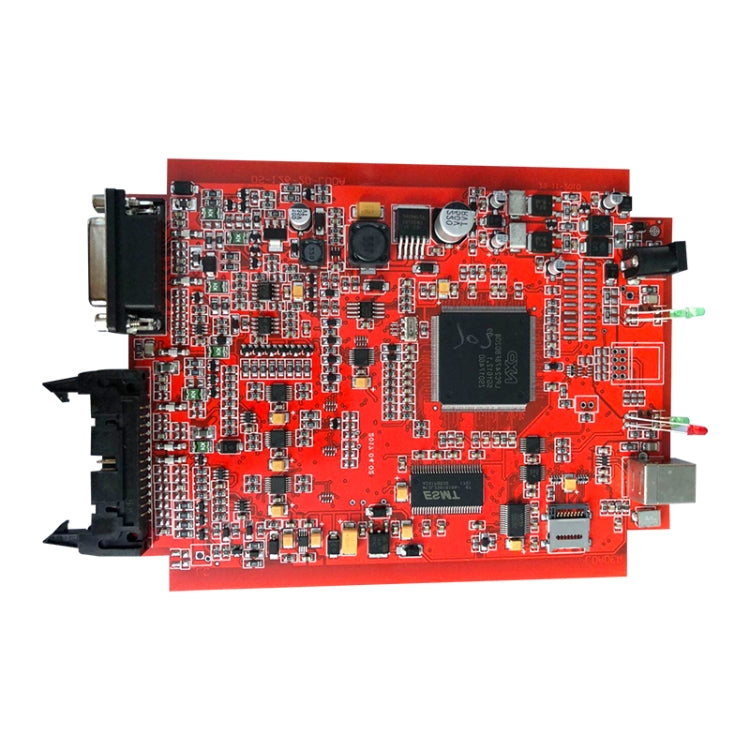

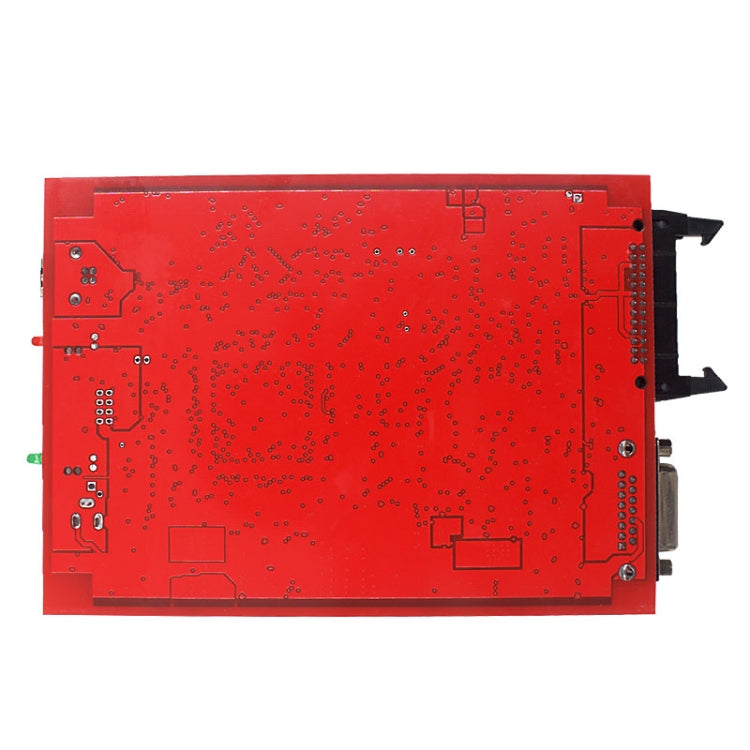

8. Best PCB With Murata filters (The main program and SD card file is different from ktag v6.070)

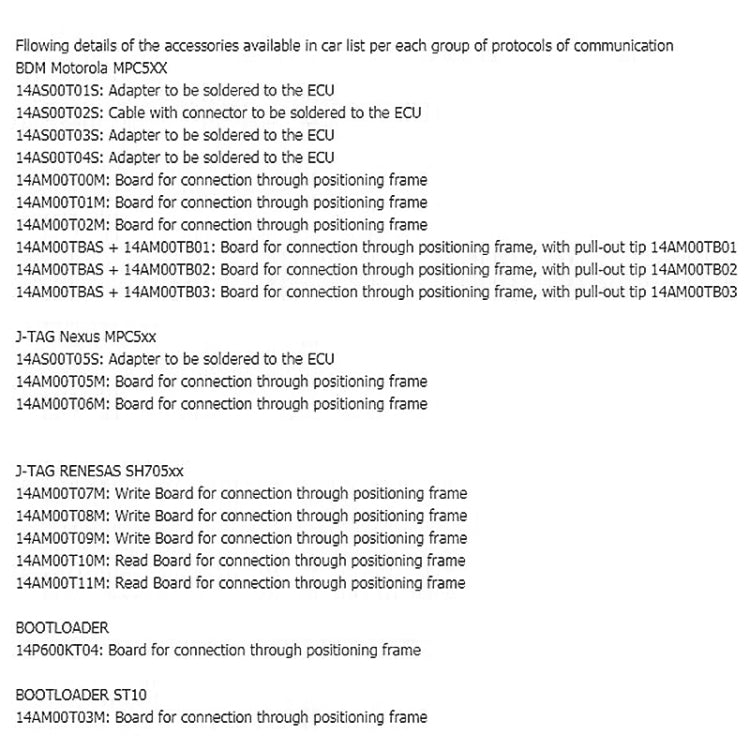

9. Following details of the accessories available in car list per each group of protocols of communication
BDM Motorola MPC5XX
14AS00T01S: Adapter to be soldered to the ECU
14AS00T02S: Cable with connector to be soldered to the ECU
14AS00T03S: Adapter to be soldered to the ECU
14AS00T04S: Adapter to be soldered to the ECU
14AM00T00M: Board for connection through positioning frame
14AM00T01M: Board for connection through positioning frame
14AM00T02M: Board for connection through positioning frame
14AM00TBAS + 14AM00TB01: Board for connection through positioning frame, with pull-out tip 14AM00TB01
14AM00TBAS + 14AM00TB02: Board for connection through positioning frame, with pull-out tip 14AM00TB02
14AM00TBAS + 14AM00TB03: Board for connection through positioning frame, with pull-out tip 14AM00TB03
J-TAG Nexus MPC5xx
14AS00T05S: Adapter to be soldered to the ECU
14AM00T05M: Board for connection through positioning frame
14AM00T06M: Board for connection through positioning frame
J-TAG RENESAS SH705xx
14AM00T07M: Write Board for connection through positioning frame
14AM00T08M: Write Board for connection through positioning frame
14AM00T09M: Write Board for connection through positioning frame
14AM00T10M: Read Board for connection through positioning frame
14AM00T11M: Read Board for connection through positioning frame
BOOTLOADER
14P600KT04: Board for connection through positioning frame
BOOTLOADER ST10
14AM00T03M: Board for connection through positioning frame

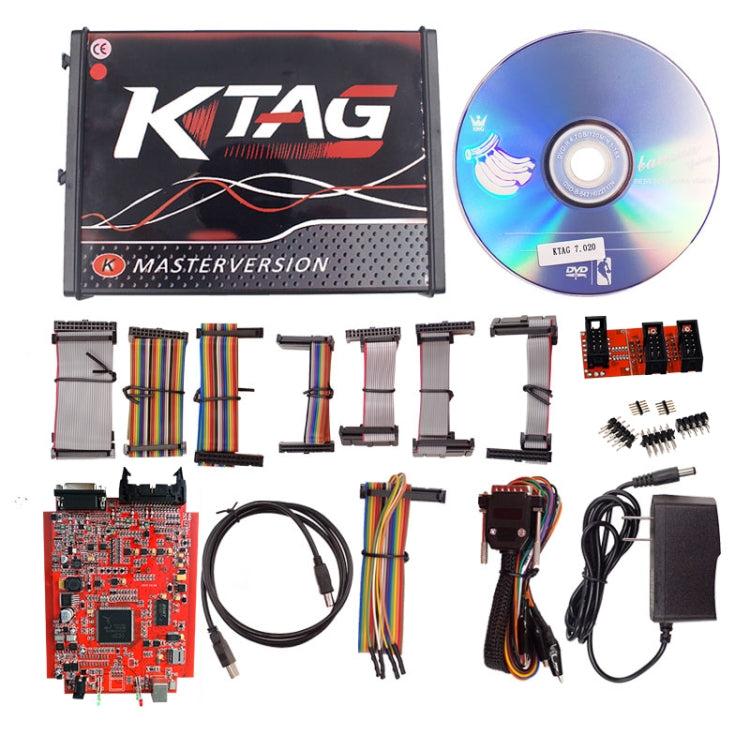

Package List:

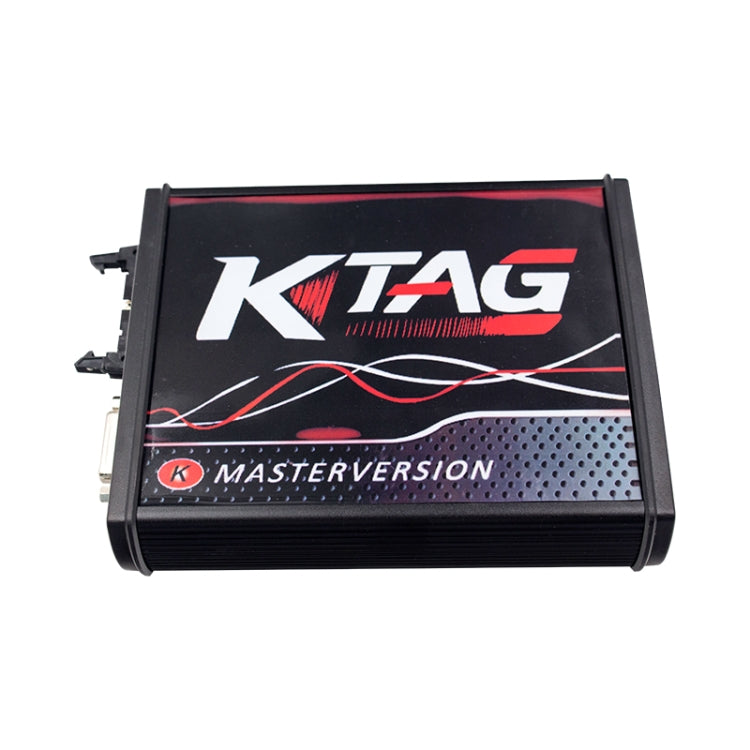

1 x Ktag V7.020 Main Unit
1 x 144300T 104
1 x 144300T 103
1 x 144300T 101
1 x 144300T 106
1 x 144300T 102
1 x 144300T 105
1 x 144300T 100
3 x Chips Inside
1 x Multi-Color Cable
1 x USB Cable
1 x Power Adapter

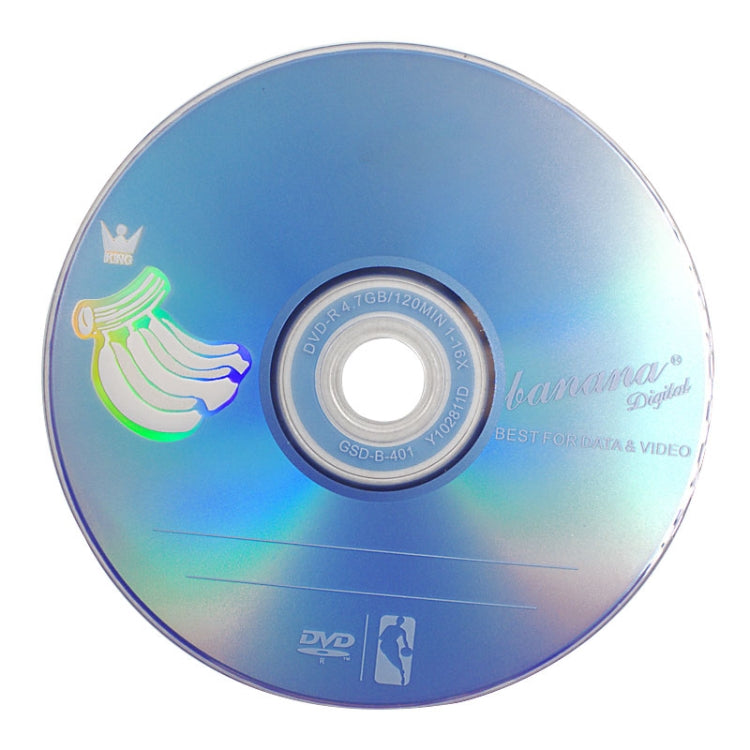

1 x CD
1 x Carton Box Outside
Specification:
|
Package Weight
|
| One Package Weight |
0.84kgs / 1.85lb
|
| Carton Weight |
13.88kgs / 30.60lb
|
| Carton Size |
46cm * 42cm * 38cm / 18.11inch * 16.54inch * 14.96inch
|
| Loading Container |
20GP: 363 cartons * 15 pcs = 5445 pcs
40HQ: 843 cartons * 15 pcs = 12645 pcs
|
|
