About The ProductThe MINI AV2HDMI converter is a universal converter for analog composite input to HDMI 1080p (60HZ) output. The analog to digital conversion in this module employs 10 bits maximal 162MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch, auto-detect and auto-convert the composite signal to 1080p(60HZ) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.
Features1. No need to install drivers, portable, flexible, plug and play.
2. Provide advanced signal processing with great precision, colors, resolutions, and details
3. Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input.
4. Support HDMI 1080p or 720p output.

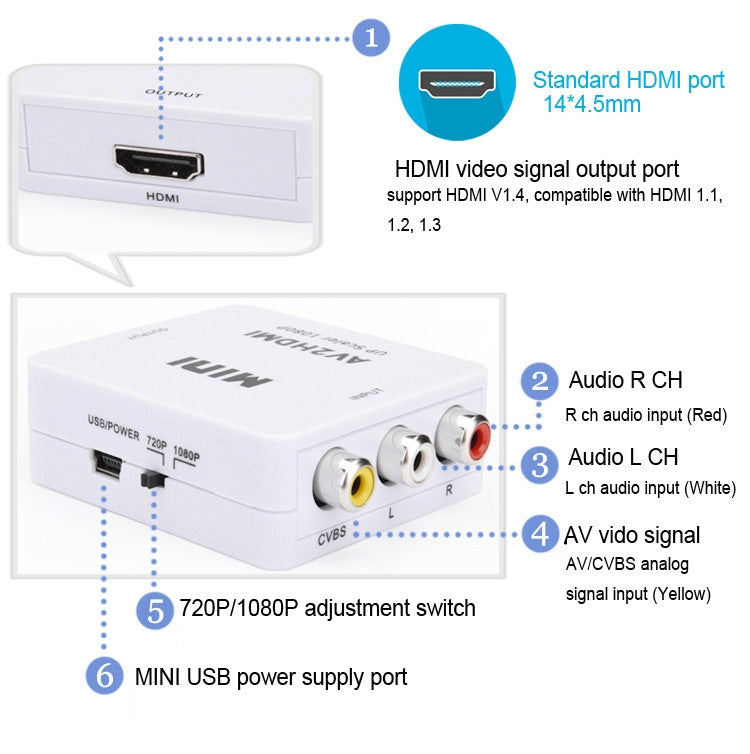

5. Input ports: 1xRCA (Yellow, White, Red).
6. Output ports: 1xHDMI.

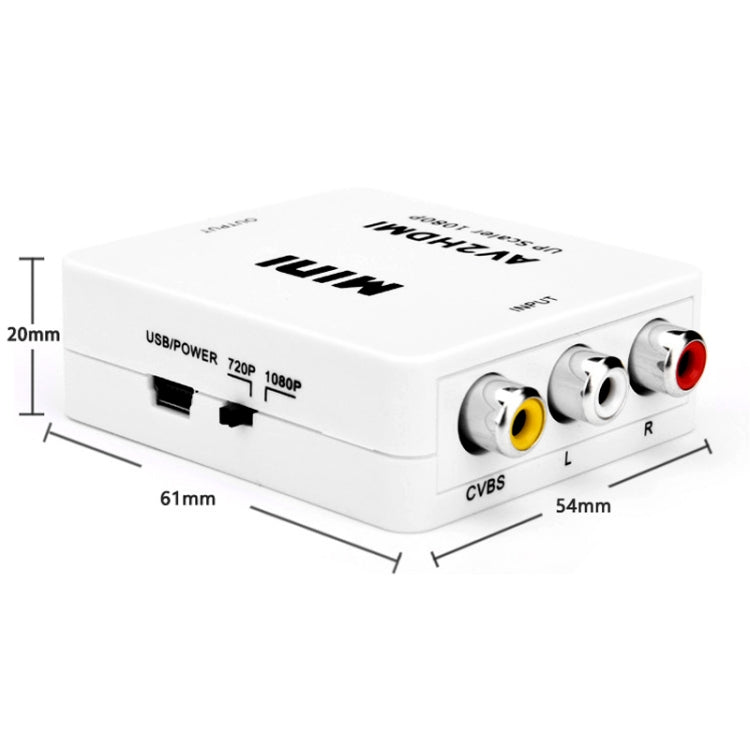

7. Dimensions (mm): 66(D) x55(W) x20(H)
8. Weight (g): 40
9. Composite input: PAL, NTSC3.58, NTSC4.4,SECAM,PAL/M,PAL/N.
10. HDMI output: 1080p60Hz, 720p/60Hz.
Specification:
|
Package Weight
|
| One Package Weight |
0.19kgs / 0.41lb
|
| Carton Weight |
7.20kgs / 15.87lb
|
| Carton Size |
45cm * 38cm * 34cm / 17.72inch * 14.96inch * 13.39inch
|
| Loading Container |
20GP: 458 cartons * 40 pcs = 18320 pcs
40HQ: 1064 cartons * 40 pcs = 42560 pcs
|
|
