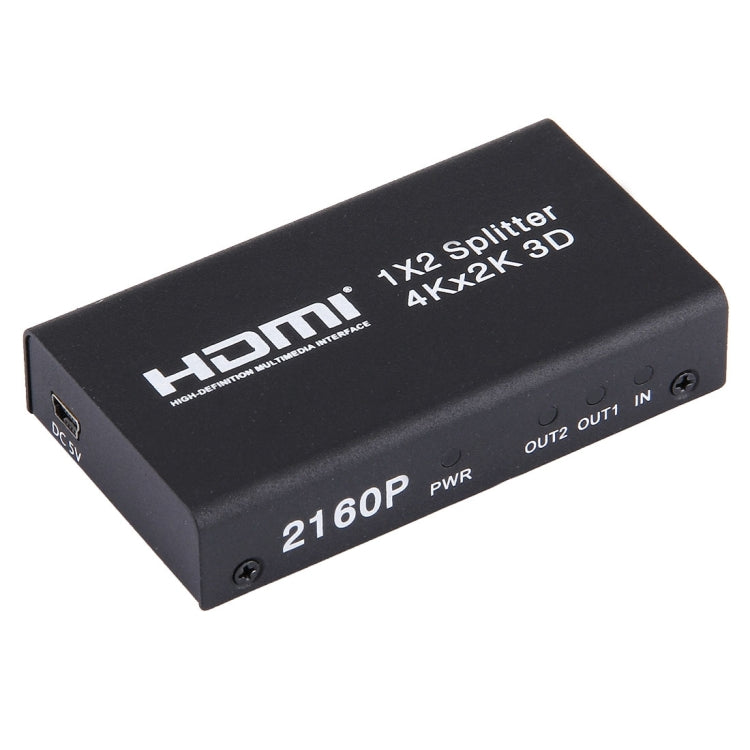

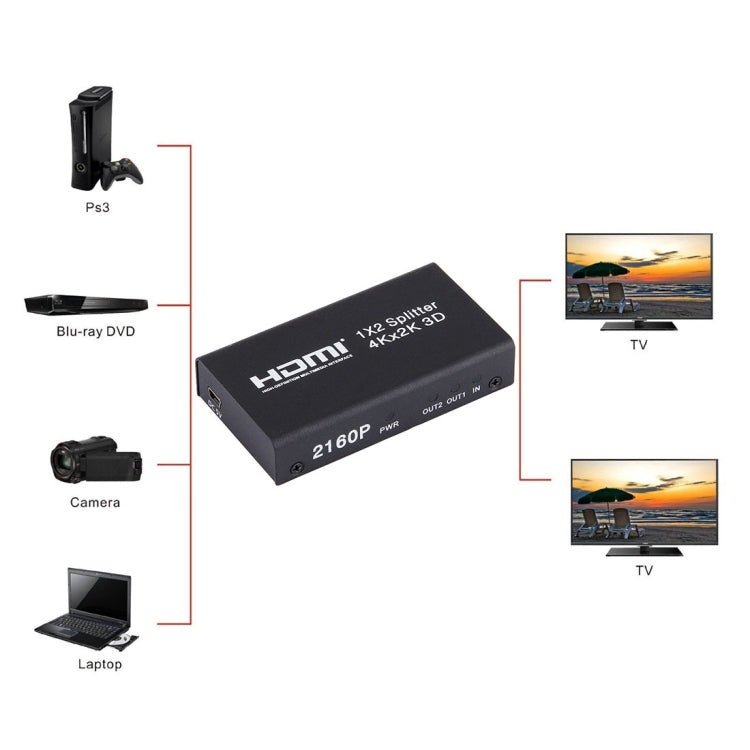

IntroductionThis 1x2 HDMI splitter can connect Set-Top-Box, DVD player, laptop, PS3, PS4, XBOX, HDTV or other HD devices to two display devices via HDMI output interfaces and let the two display devices show the same picture.
Features1. 1 x HDMI 1.4b input, 2 x HDMI 1.4b output.
2. HDMI resolution up to 4K/30fs, support 3D.
3. Support 24 bit/Deep color 30 bit/36 bit.
4. Support Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.
5. Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
6. Support signal Re-Timing.
7. Use AWG26 HDMI 1.4b standard cable, input transmission distance up to 15m, output transmission distance up to 25m.
8. No loss of signal.
9. Power by DC 5V/1A external power adapter.
Specification:
|
General
|
| Input Port |
AC 100-240V 50/60Hz (Charger) |
| Output Port |
DC 5V 1A (Charger) |
| Interface |

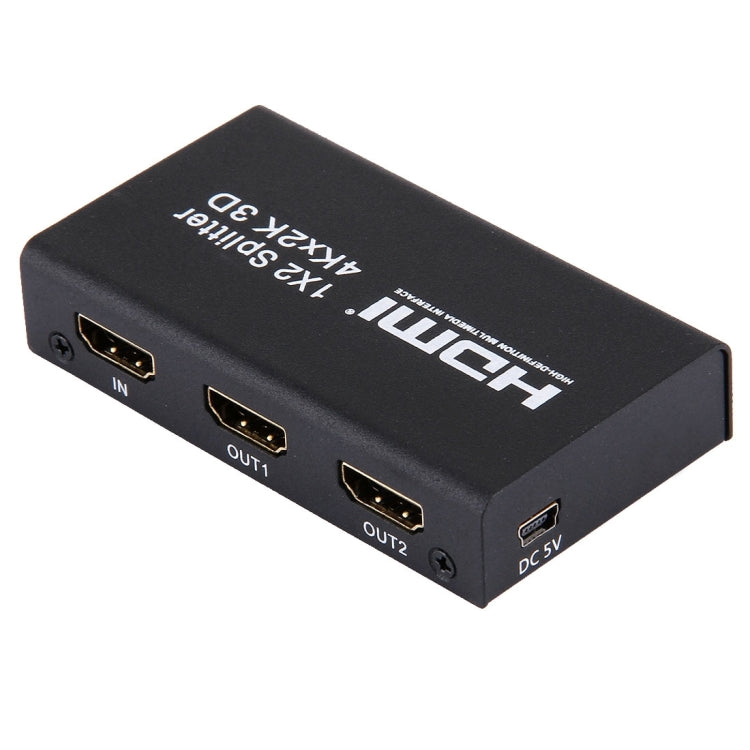

DC IN, 1 x HDMI IN, 2 x HDMI Out |
| HDMI Resolution |
up to 4K/30fs |
| Video Color Format |
24bit, 30bit, 36bit |
| Video Bandwidth |
300MHz/10.2 Gbps |
| HDMI Audio Format |
DTS-HD, Dolby-TrueHD, LPCM 7.1CH, DTS, Dolby-AC3, DSD |
| Input Cable Distance |
<=15m AWG26 HDMI Standard Cable |
| Output Cable Distance |
<=25m AWG26 HDMI Standard Cable |
| Input/ Output TMDS Signal |
0.5~1.5Vp-p(TTL) |
| Input/ Output DDC Signal |
5Vp-p(TTL) |
| Working Current |
600mA (Max) |
| Operating Temperature |
-10 to 55 Degree Celsius |
| Storage Temperature |
-20 ~ 60 Degree Celsius |
| Operating Humidity |
10 ~ 90 Percent RH (Non-condensing) |
| Storage Humidity |
5 ~ 95 % RH (Non-condensing) |
|
|

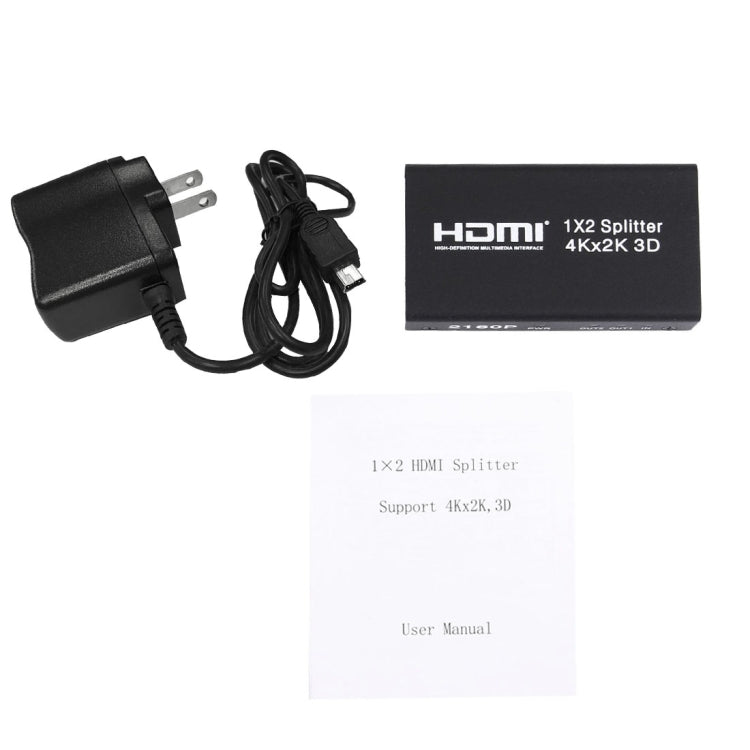

Package Include
|
| Package Contents |
1 x Power Adapter
1 x User Manual
1 x HDMI Splitter |
|
|
Package Weight
|
| One Package Weight |
0.34kgs / 0.75lb
|
| Carton Weight |
11.00kgs / 24.25lb
|
| Carton Size |
51cm * 32cm * 37cm / 20.08inch * 12.6inch * 14.57inch
|
| Loading Container |
20GP: 441 cartons * 40 pcs = 17640 pcs
40HQ: 1025 cartons * 40 pcs = 41000 pcs
|
|
