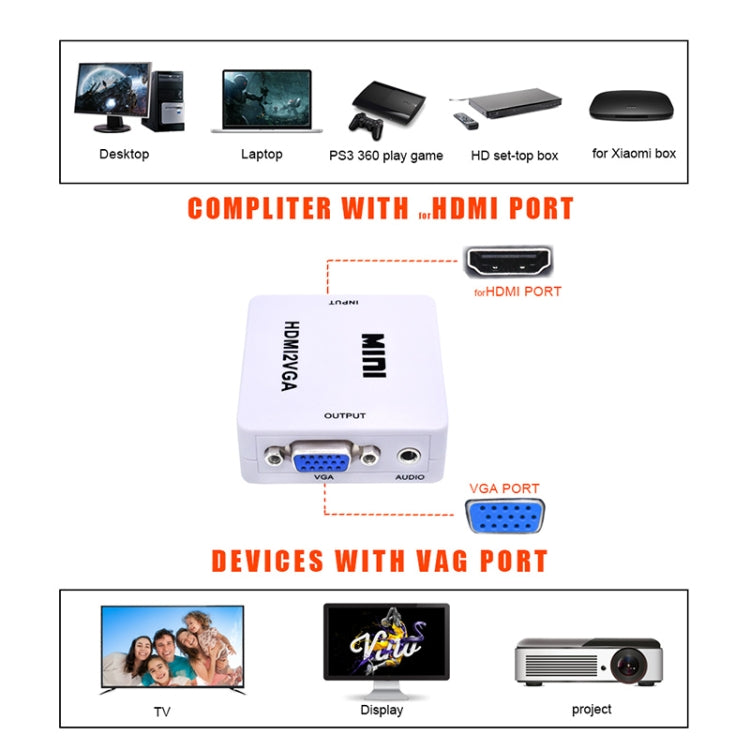

The MINI HDMI2VGA is a high-definition video converter which converts HDMI digital signal to VGA analog signal and analog audio signal. HDMI signals connection PS3, XBOX360, Blue-ray DVD, HD set-top boxes, CRT / LED Display etc; You can easily watch HD Video on the normal TV without HDMI Interface.
1. No need to install drivers, portable, flexible, plug and play.
2. Low power, No need Power Supply.
3. Compliant with HDMI 1.3, HDCP 1.4
4. High bandwidth capability supports 1920x1080@60Hz

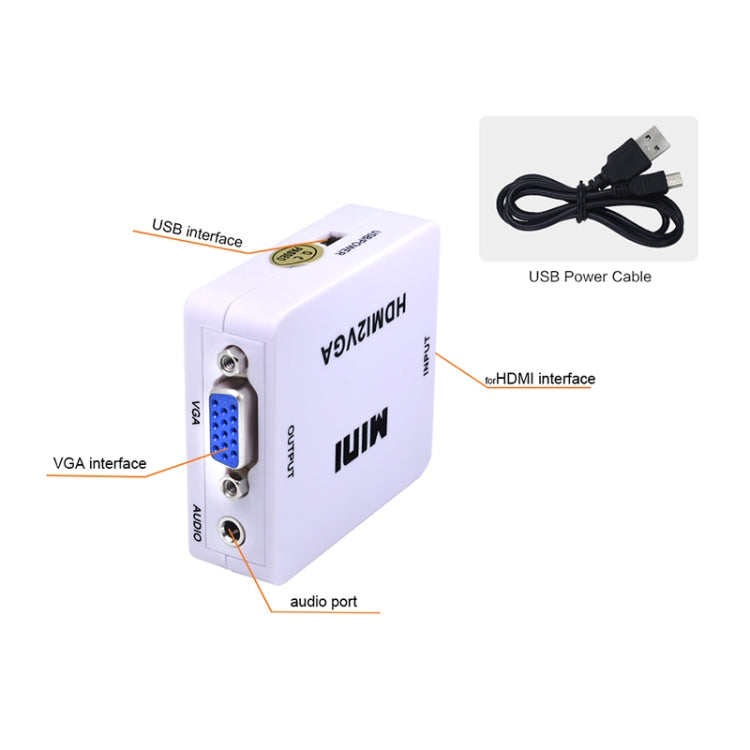

5. Input port: 1xHDMI.

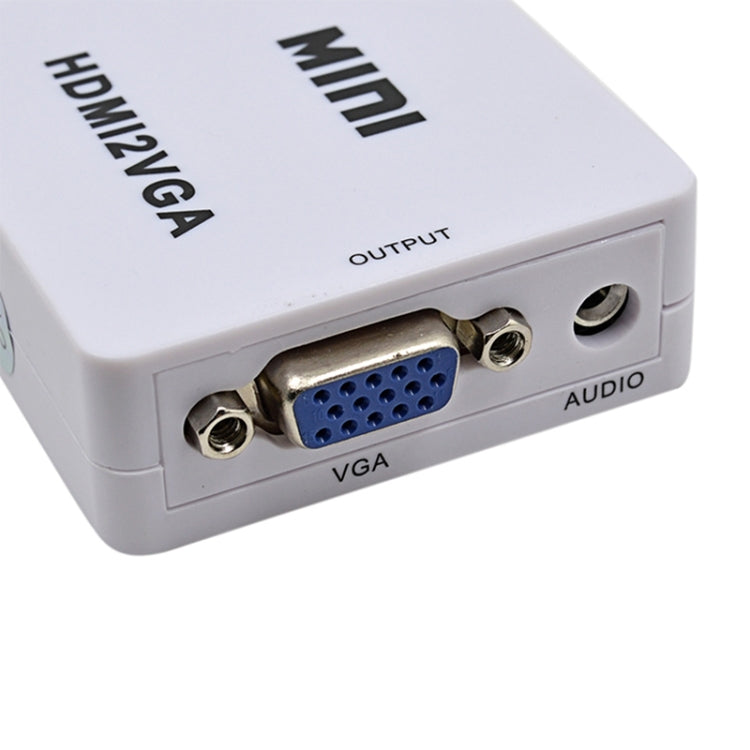

6. Output ports: 1xVGA, 1x3.5mm Jack.
7. Dimensions (mm): 66(D)x55(W)x20(H)
8. Weight (g): 40
9. VGA Output Resolution: 640x480@60/72/75/85Hz; 800x600@60/72/75/85Hz, 1024x768@60/70/75/85Hz; 1152x864@75Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1440x1050@60Hz, 1440x900@60Hz, 1680x1050@60Hz, 1600x1200@60Hz, 1920x1080@60Hz
Specification:
|
Package Weight
|
| One Package Weight |
0.13kgs / 0.28lb
|
| Carton Weight |
10.20kgs / 22.49lb
|
| Carton Size |
38cm * 32cm * 26cm / 14.96inch * 12.6inch * 10.24inch
|
| Loading Container |
20GP: 843 cartons * 80 pcs = 67440 pcs
40HQ: 1958 cartons * 80 pcs = 156640 pcs
|
|
