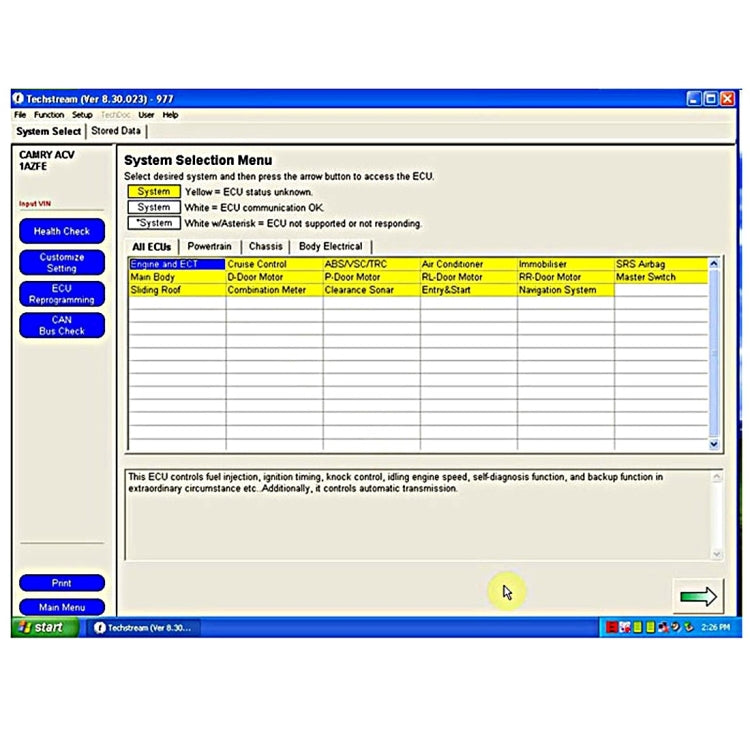

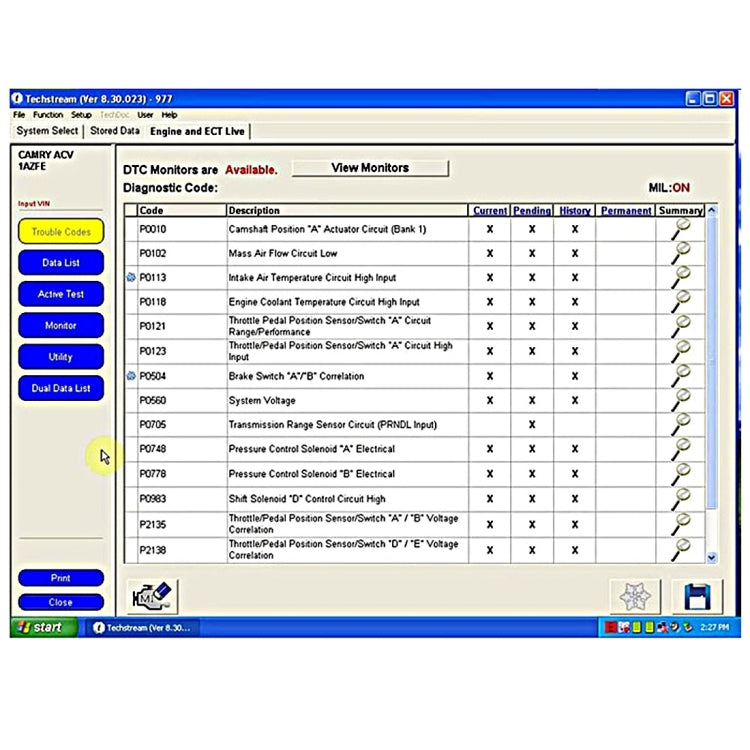

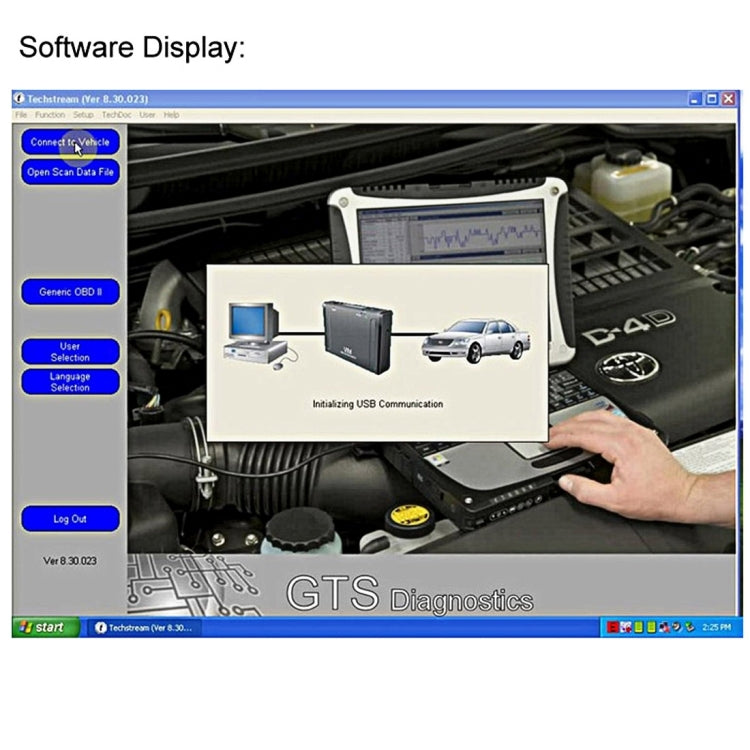

Features1. Support Toyota TIS OEM diagnostic software
2. Cost-effective, the price of product is only one-third of similar foreign products.
3. High performance built-in ARM CPU.
4. High reliability SMD chip, and certified by CE and FCC.
5. Support all the diagnostic communication protocols needed for Toyota (since 1996).
6. Upgrade the firmware via the Internet to improve product.
7. Not only provides commonly used J1962 connector, but also provides the old 22pin connector for Toyota.
8. Using online feedback function for technical support.
Supported Protocols:
1. K-Line ISO 9141
2. KWP 2000 ISO 14230-4
3. SAE J1850 PWM
4. SAE J1850 VPW
5. CAN 2.0B ISO 11898
6. CAN ISO 15765-4
Specification:
|
General
|
| Types |
Diagnostic cable tool |
| Languages |
Chinese, English |
| Material |
Electronic Component, Plastic |
| Adaptable Automobile |
Toyota |
| Output Protocols |
K-Line ISO 9141 / KWP 2000 ISO 14230-4 / SAE J1850 PWM / SAE J1850 VPW |
|
|
Package Include
|
| Package Contents |
1 x CD Disk
1 x Diagnostic Cable |
|
|
Package Weight
|
| One Package Weight |
0.12kgs / 0.27lb
|
| Carton Weight |
12.50kgs / 27.56lb
|
| Carton Size |
42cm * 27cm * 27cm / 16.54inch * 10.63inch * 10.63inch
|
| Loading Container |
20GP: 870 cartons * 100 pcs = 87000 pcs
40HQ: 2021 cartons * 100 pcs = 202100 pcs
|
|
