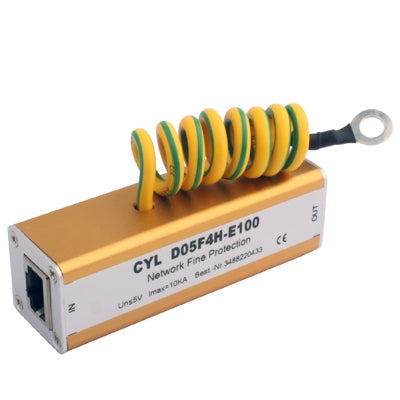

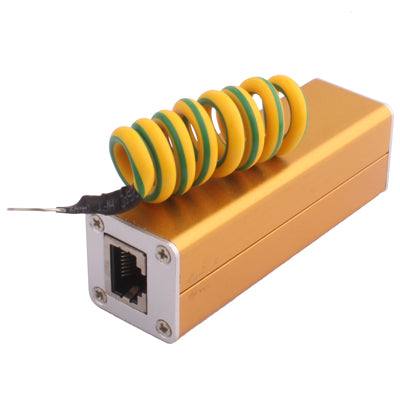

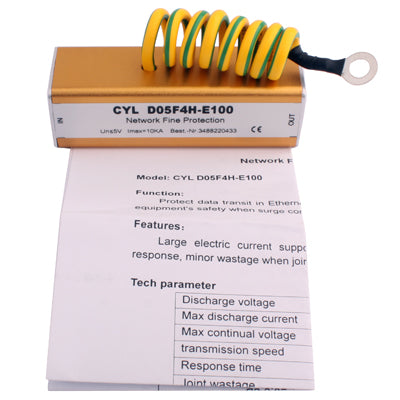

Network Surge Arrester Surge Protection Device (CYL D05F4H-E100)

Function:

Protect data transit in Ethernet from surge.Make sure system and equipment's safety when surge come from thunderbolt or static

Features:

Large elecric current support , multiple level protection, quickly response, minor wastage when join them.

Technical parameter:

1) Model: CYL D05F4H-E100

2) responsive time ≤1ns

3) Operating Temperature: -40°C to + 80°C; Humidity ≤95% (25-30°C)

4) Max discharge current: 10KA

5) Rated voltage: 5V

6) Protection voltage: 12-18V

8) Joint wastage: ≤0.5dB

9) Transmission speed: 100Mbps

10) Protect pin:1/2/3/6

11) Size: 80x26x26mm

12) Net weight: 100g
