FEATURES
1. Three ways of optical fiber signals switch to two sets of SPDIF/TosLink signal receiving device.
2. Audio format support : LPCM2.0/DTS/Dolby-AC3
3. Support signal retiming
4. Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.
5. The input control can through R/M and also can directly press the button
6. Support last time working state memory when power off
7. Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
8. LED status indication
9. Installs in minutes
10. Need DC5V/500mA power supply
Specitications
Support audio format: LPCM2.0/DTS/Dolby-AC3
Peak wavelength: 650nm
Max baud rate: 16Mbps
Output cable distance: 25m(Use the optical fiber cable loss less the 0.2Db/m )
Max working current: 100mA
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 108 x 65 x 23.5(mm)
Weight: 173g

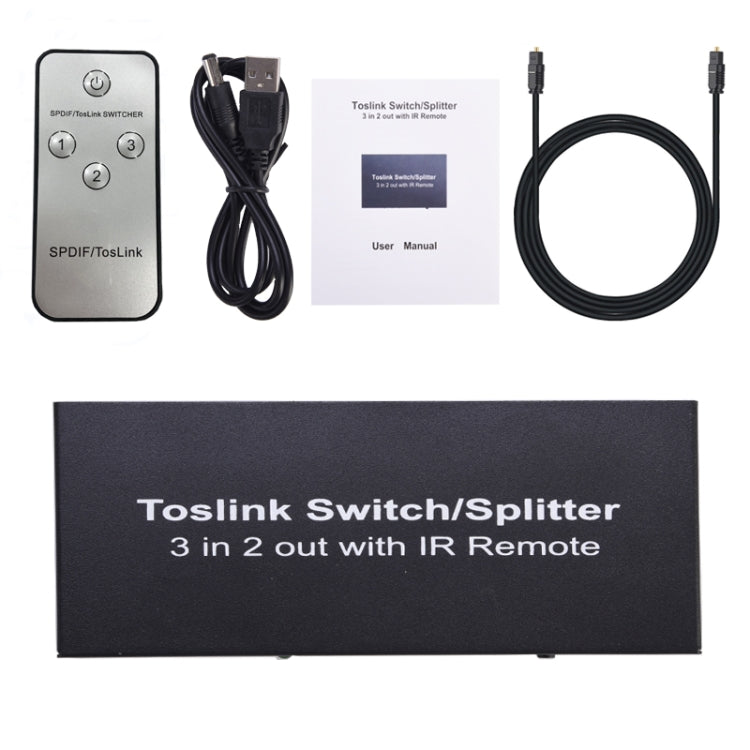

The accessories with the machines lists:
1. USB Cable
2. Operation Manual
3. Remote-control unit
4. Toslink Cable
Specification:
|
Package Weight
|
| One Package Weight |
0.34kgs / 0.75lb
|
| Carton Weight |
11.30kgs / 24.91lb
|
| Carton Size |
45cm * 32cm * 35cm / 17.72inch * 12.6inch * 13.78inch
|
| Loading Container |
20GP: 529 cartons * 30 pcs = 15870 pcs
40HQ: 1228 cartons * 30 pcs = 36840 pcs
|
|
