1) Serial port feature: Concurrently compatible with RS-232C, RS-485 standard of EIA/TIA

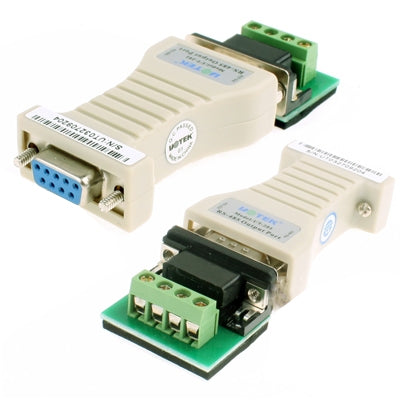

2) Electric interface: RS-232 interface is DB9 interface (female). RS-485 interface is DB9 interface (male), or RJ-45 interface. DB9 needle (male) interface can adapt to patch panel, and through binding post it is convenient to wire routing
3) Protection rate: 600W surge protection
4) Signal indication: Indicator lights TXD,RXD,POWER
5) Work methods: Asynchronous half-duplex differential transmission
6) Transmission media: Twisted pair or shielded cable
7) Transmission distance: 1,200M (115200bps~9600bps)
8) Work environment: -25C to 70°C, relative humidity: 5% to 95%
9) Power Input: DC 9V/350mA
10) Size: 63 x 33 x 17mm
Specification:
|
Package Weight
|
| One Package Weight |
0.14kgs / 0.31lb
|
| Carton Weight |
6.20kgs / 13.67lb
|
| Carton Size |
50cm * 35cm * 35cm / 19.69inch * 13.78inch * 13.78inch
|
| Loading Container |
20GP: 435 cartons * 44 pcs = 19140 pcs
40HQ: 1010 cartons * 44 pcs = 44440 pcs
|
|
