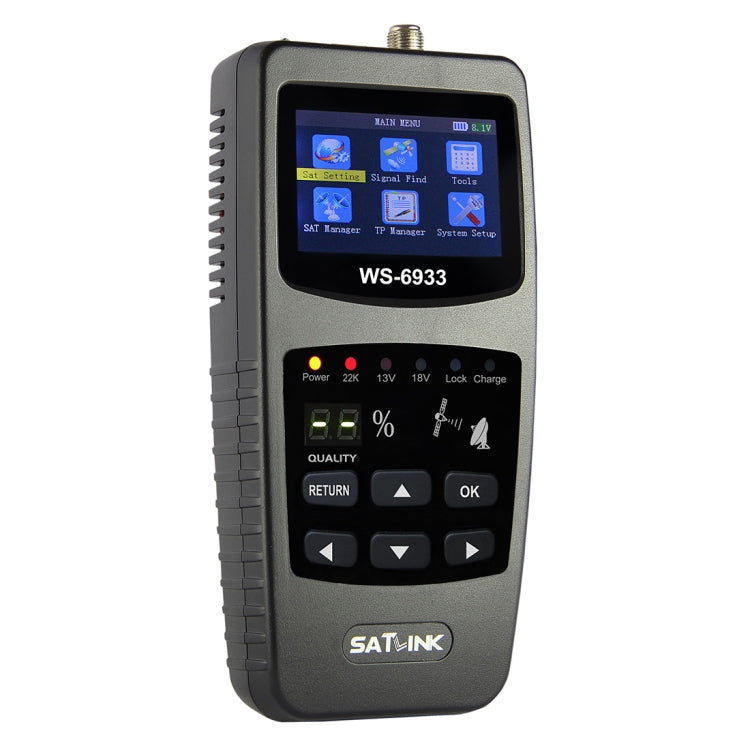

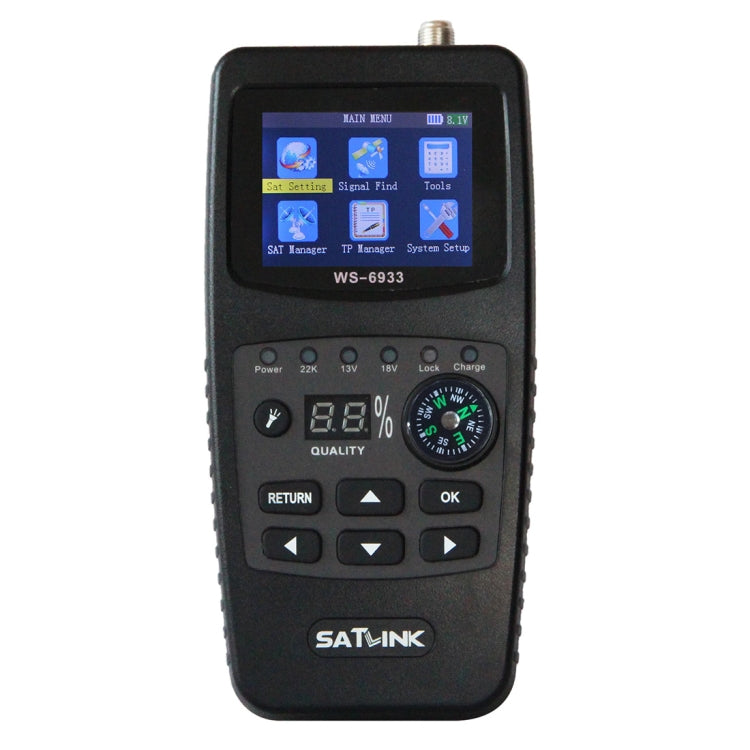

1. 2.1 inch LCD screen display, 240(RGB)*320 TFT positive transflective, 36.72(W)*48.96(H)MM2 active area.
2. Input frequency 950~2150MHz.
3. Input Level -65~ -25dBm, input impedance 75 ohm.
4. Measurement type: Signal strength, quality; ber; pwr.
5. Sound for locking dignal.
6. Support DISEQC 1.0 /1.1 and 22khz tone.
7. LNB Power Supply: 18/13V(Max 300mA).
8. Beep Integrated.
9. 7.4V/800mAh lion battery included, max operating time: 3 hours.
10. DC adapter: Output: DC12V/1A, Input: 100-240VAC 50/60Hz, USB port for software upgrades, data protocol: USB to RS-232.
11. Band switch control: 22KHz.
12. Demodulation type: QPSK, 8PSK.
13. Power consumption: Max. 5W.

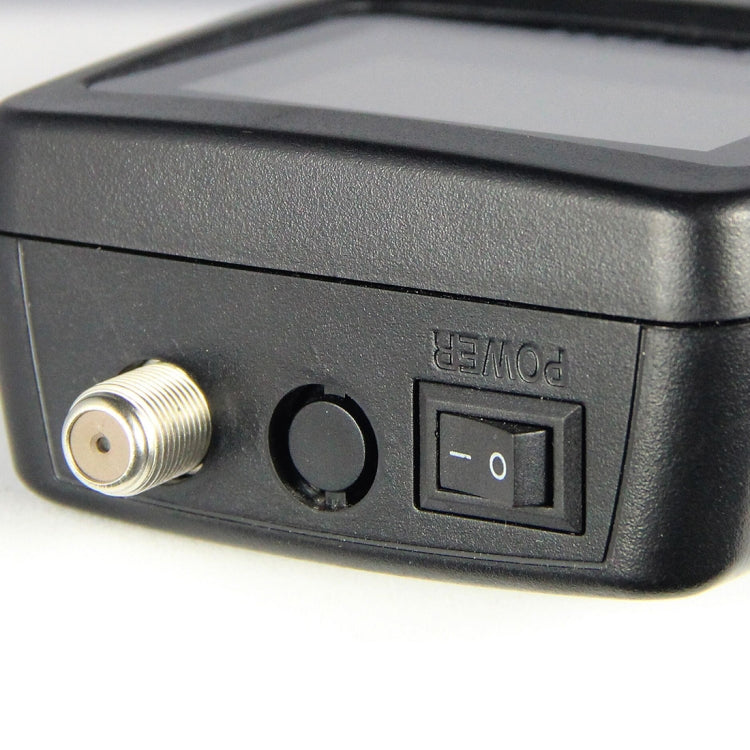

14. Connector type: F type.
Specification:
|
General
|
| Power Supply |
Output: DC12V/1A, Input: 100-240VAC 50/60Hz adapter |
|
|
Hardware
|
| Display Resolution |
240(RGB) x 320 |
|
|
Package Include
|
| Package Contents |
1 x AV Cable
1 x Power Supply (EU, US, AU, UK Optional)
1 x Car Charger
1 x Host
1 x Carry Bag
1 x RS232 to USB Cable |
|
|
Package Weight
|
| One Package Weight |
0.73kgs / 1.62lb
|
| Carton Weight |
14.50kgs / 31.97lb
|
| Carton Size |
48cm * 44cm * 32cm / 18.9inch * 17.32inch * 12.6inch
|
| Loading Container |
20GP: 394 cartons * 20 pcs = 7880 pcs
40HQ: 915 cartons * 20 pcs = 18300 pcs
|
|
