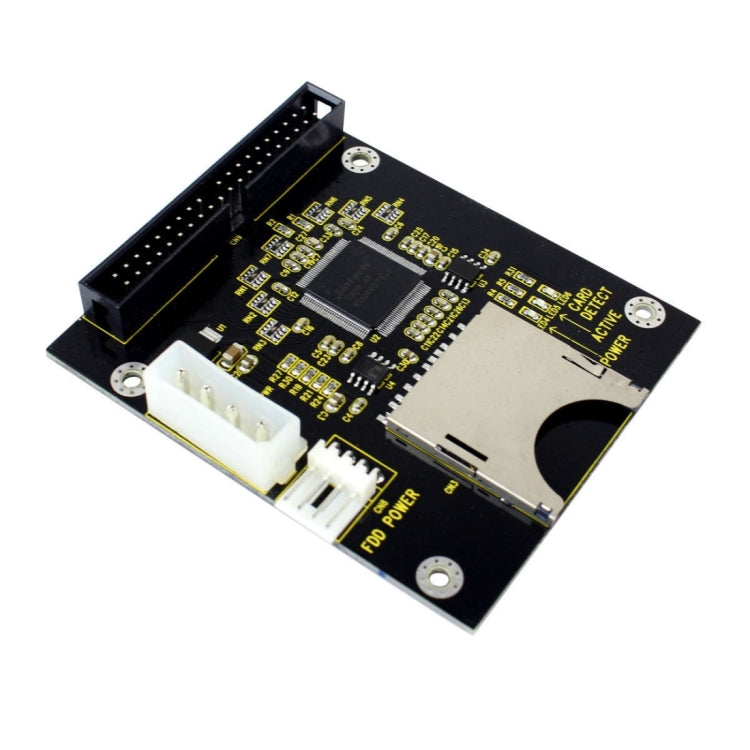

About The Product40-Pin male IDE to SD card adapter is transparent to the operating system and does not require any drivers. With this adapter, the host PC will identify the inserted SD card as a standard IDE hard disk. As such, you can install any operating systems and the SD card will be bootable. It works with an 40-Pin ATA cable and hard disk drive power supply.
Features1. 100% brand new and high quality
2. Easy installation and no driver required
3. Mini board design and no space wasted
4. Makes SD/MMC flash memory card be a super compact, cost efficient, anti-shock, low power consumption, no acoustic noise and fast access time HD
5. Enable IT engineers and embedded technology enthusiasts to use SD/MMC card as a normal IDE 3.5" hard disk
6. Provide an alternative for data storage and transfer or test for main board, sound card, display card and memory card, etc
7. Ideal for some devices that required a fast and easy bootable device such as POS
8. Be a SD/MMC card reader/writer
9. One 3.5 inch IDE hard disk drive 40-pin male connector
10. One D type 4 pin power connector or One small 4-pin power connector
11. One standard SD socket
12. Compatible with SD Memory Card specification 1.1, MMC specification 2.0, SDHC memory card
13. SD socket support maximum 32GB SDHC card
14. Support PIO, Multi-Word DMA and Ultra DMA data transfer mode
15. Compatible with DOS, Windows 98SE, Me, 2000, XP and Vista & Linux
16. Bootable, install OS and application on SD card
Specification:
|
Package Weight
|
| One Package Weight |
0.04kgs / 0.09lb
|
| Carton Weight |
13.60kgs / 29.98lb
|
| Carton Size |
47cm * 34cm * 32cm / 18.5inch * 13.39inch * 12.6inch
|
| Loading Container |
20GP: 521 cartons * 400 pcs = 208400 pcs
40HQ: 1210 cartons * 400 pcs = 484000 pcs
|
|
