1. Durable and reliable.
2. OBDII Supported Protocol:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2(5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)

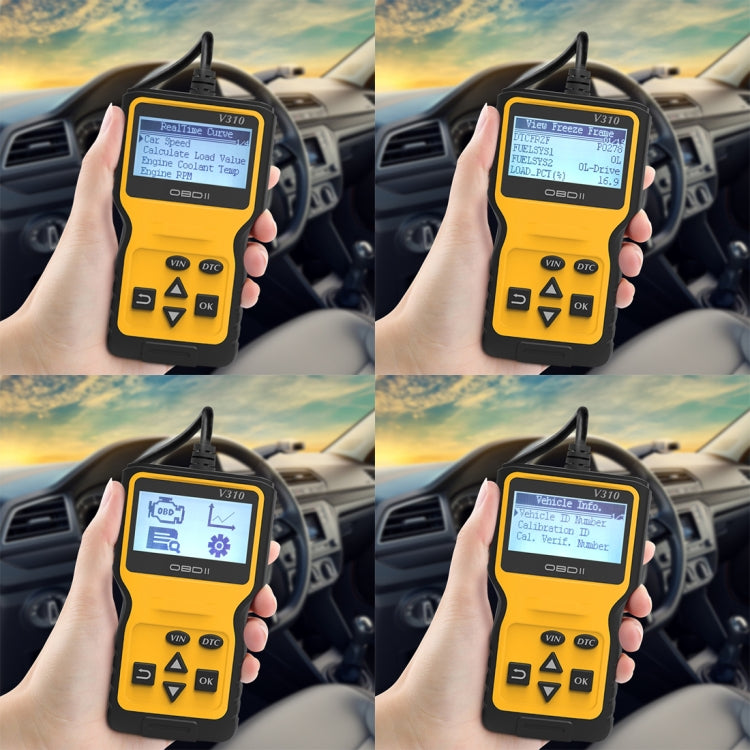

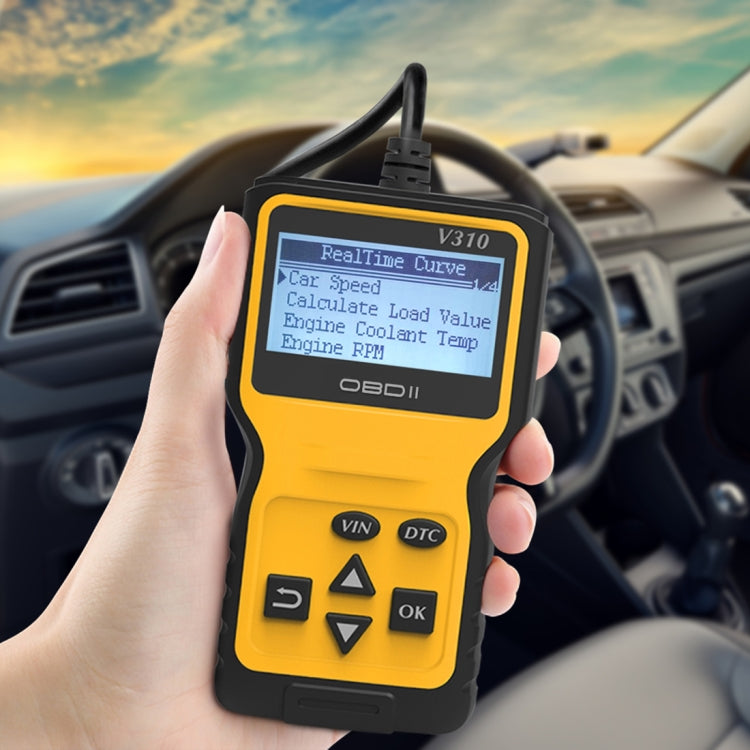

3. Support real-time data flow, freeze, power curve, fault code library view.
4. Working voltage: DC 9~16V
5. Working current: 80mA
6. OBD interface: 16 pin OBD male
Specification:
|
Package Weight
|
| One Package Weight |
0.37kgs / 0.82lb
|
| Carton Weight |
19.80kgs / 43.65lb
|
| Carton Size |
58cm * 56cm * 52cm / 22.83inch * 22.05inch * 20.47inch
|
| Loading Container |
20GP: 157 cartons * 50 pcs = 7850 pcs
40HQ: 366 cartons * 50 pcs = 18300 pcs
|
|
