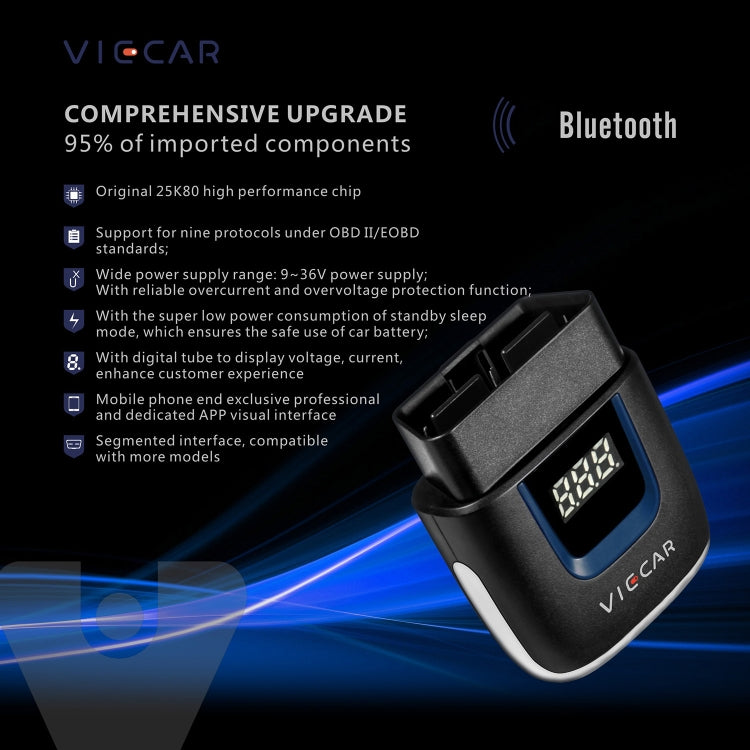

1. Support 9 protocols
2. 9-36V power supply
3. Overvoltage protection
4. Ultra-low power consumption
5. Bluetooth dual mode
6. Display current and voltage

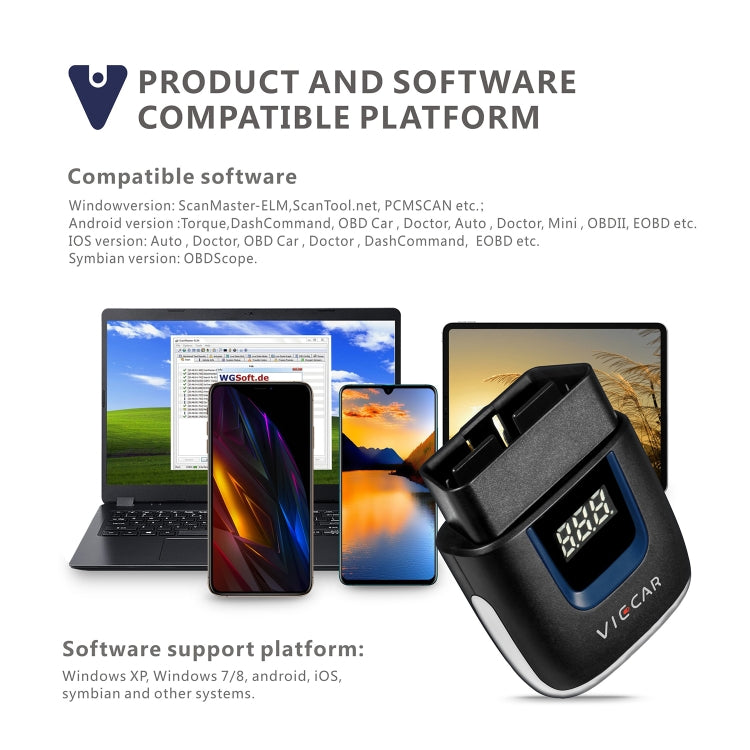

7. Support iOS / Android

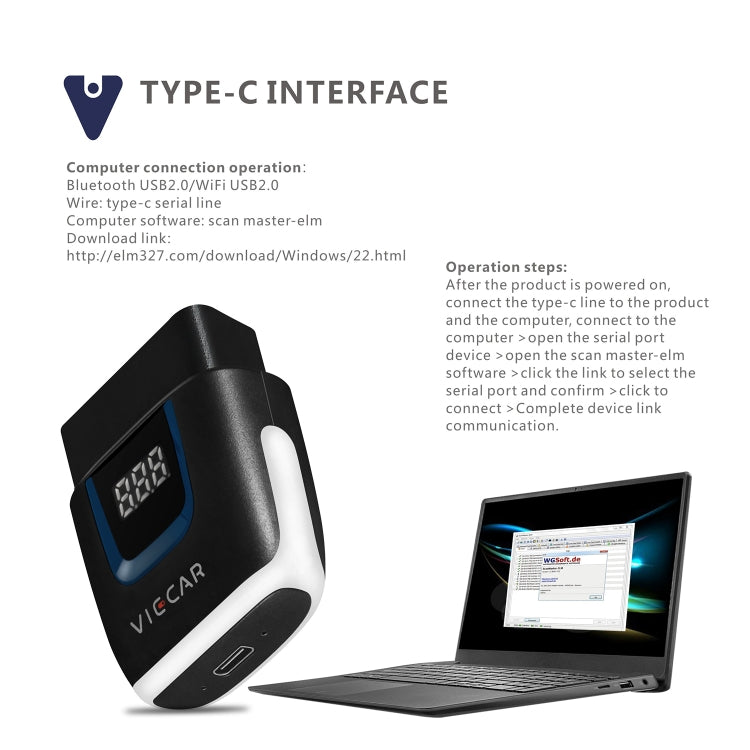

8. With USB / Type-C interface

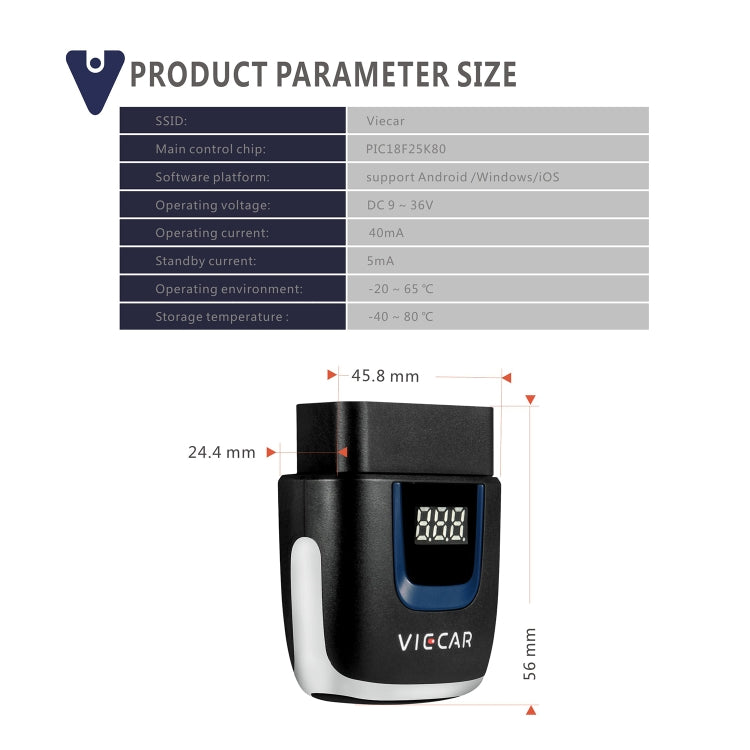

9. Parameters:

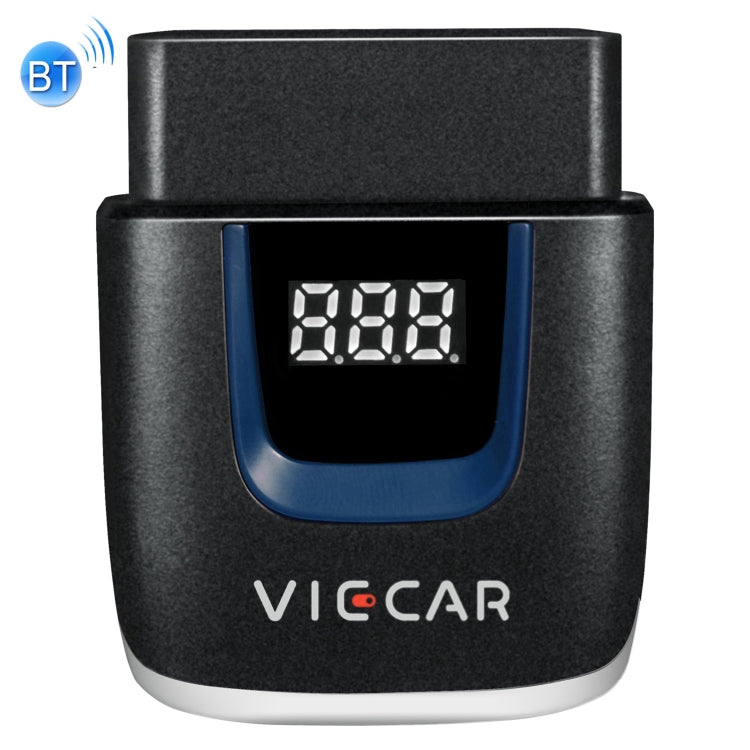

SSID: Viecar
Main control chip: PIC18F25K80
Working voltage: DC 9-36V
Working current: 40mA
Standby current: 5mA
Version: V2.2
Operating environment: -20 to 65 degrees Celsius
Storage temperature: -40 to 80 degrees Celsius

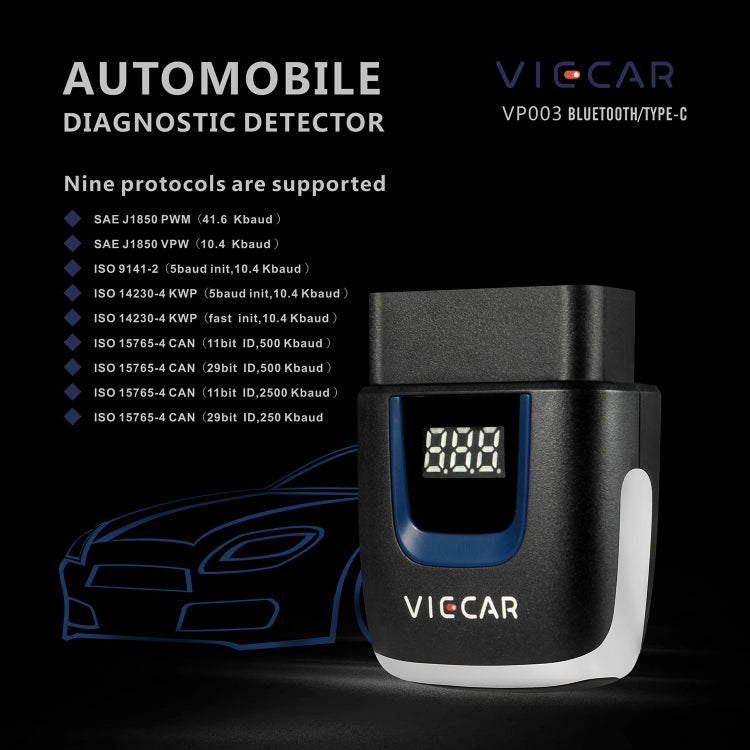

10. Supported protocols:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2 (5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
Specification:
|
Package Weight
|
| One Package Weight |
0.11kgs / 0.25lb
|
| Carton Weight |
12.00kgs / 26.46lb
|
| Carton Size |
42cm * 38cm * 32cm / 16.54inch * 14.96inch * 12.6inch
|
| Loading Container |
20GP: 522 cartons * 100 pcs = 52200 pcs
40HQ: 1212 cartons * 100 pcs = 121200 pcs
|
|
