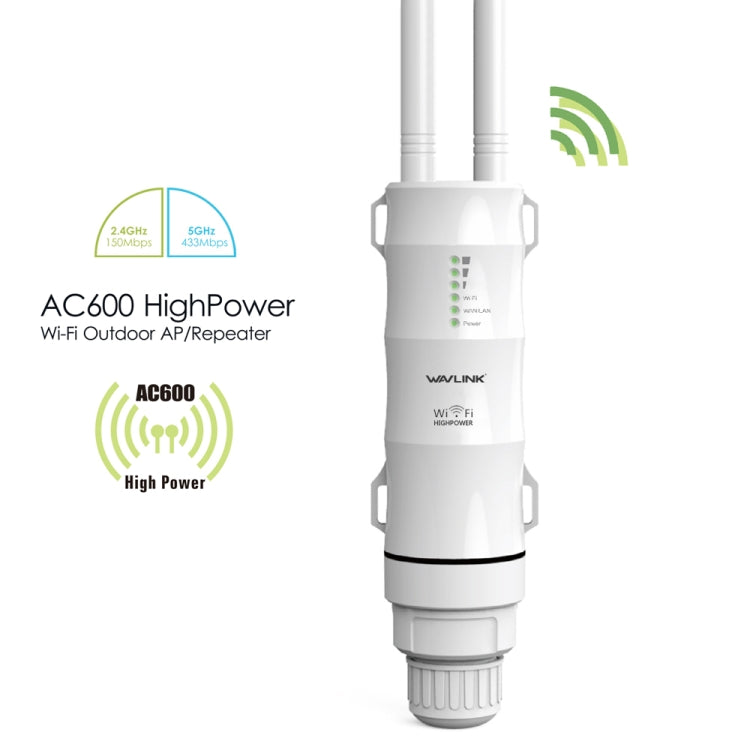

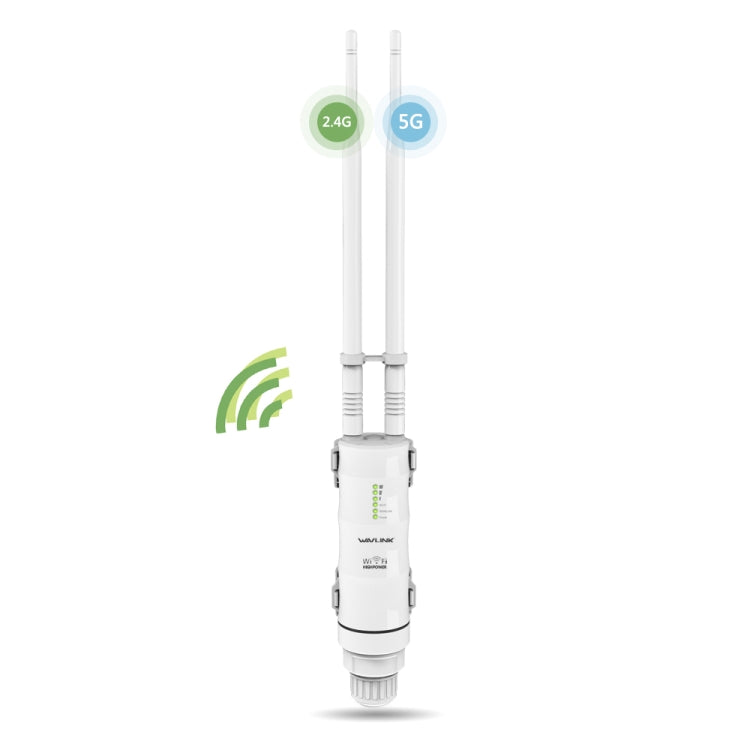

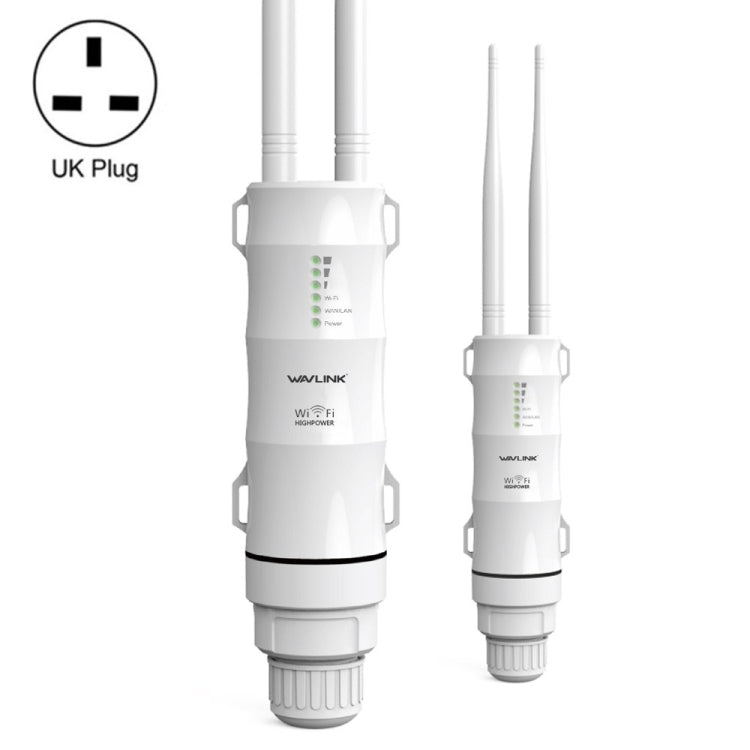

1. AC600 wireless repeater is mainly used to provide free Wi-Fi service in large areas such as factories, communities, streets and so on. AP/ Repeater can receive the existing 2.4GHz or 5GHz wireless signal, repeat and expand the range that the router or access point cannot reach. AP / Repeater supports both 2.4G and 5G wireless network connections, and can support 2.4G and 5G transmission speeds up to 600Mbps. It has 2 external antennas, which can provide better wireless performance, transmission rate, stability technology, and automatically avoid channel conflicts through its channel selection function.
2. Leading 802.11ac standard
3. Comply with IEEE 802.11 ac / a / b / g / n standards
4. Dual frequency speed up to 2.4GHz 150Mbps, 5GHz 433Mbps

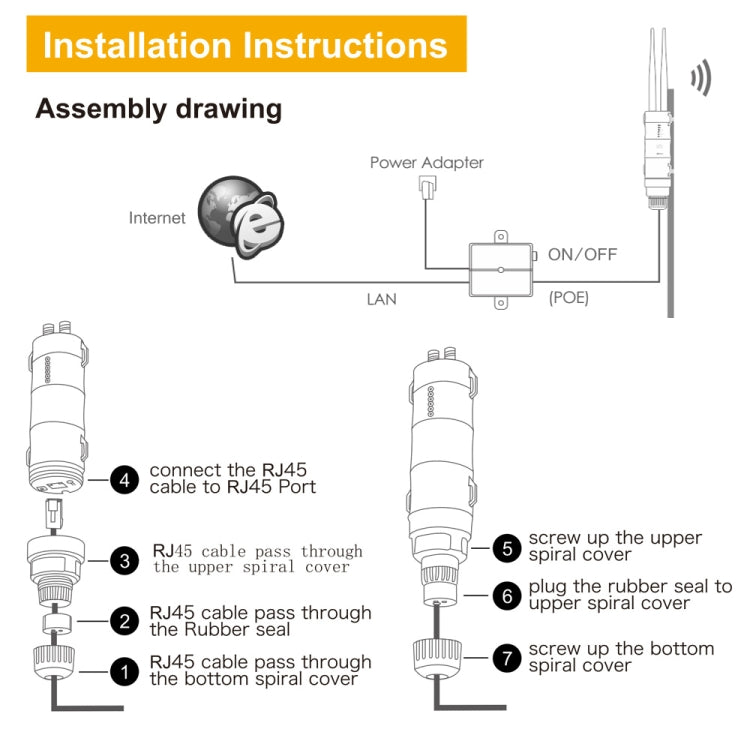

5. Moisture-proof RJ45 connector, integrated passive power over Ethernet (PoE)
6. Passive PoE support, flexible deployment
7. According to the different antennas, it can provide high performance on the remote link.
8. With up to 600mW power and enhanced receiver design

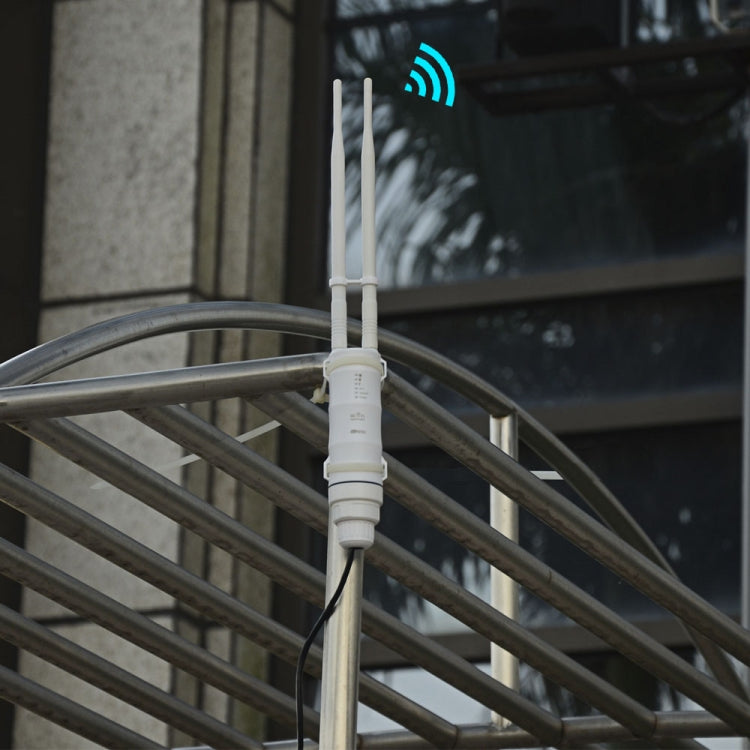

The sturdy weatherproof housing can withstand harsh outdoor conditions.

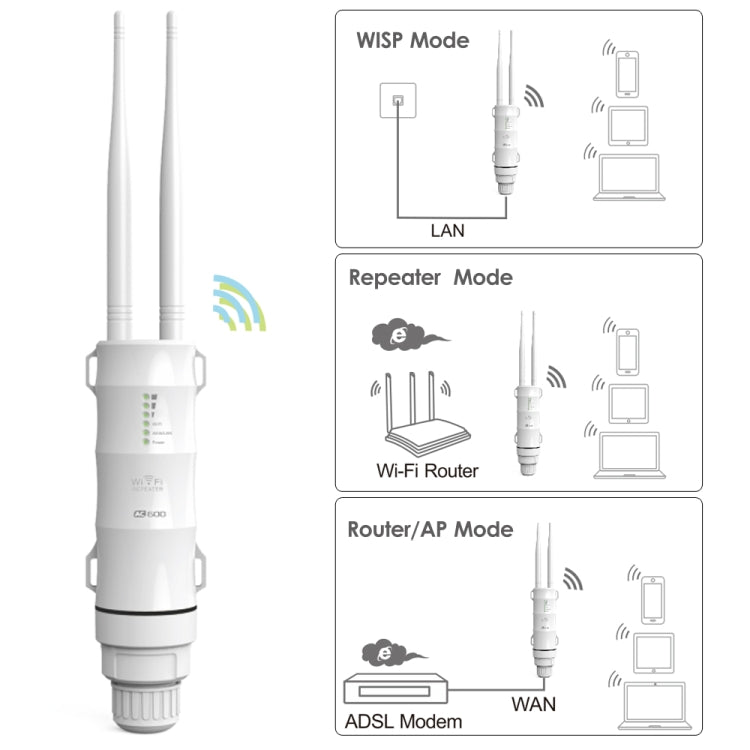

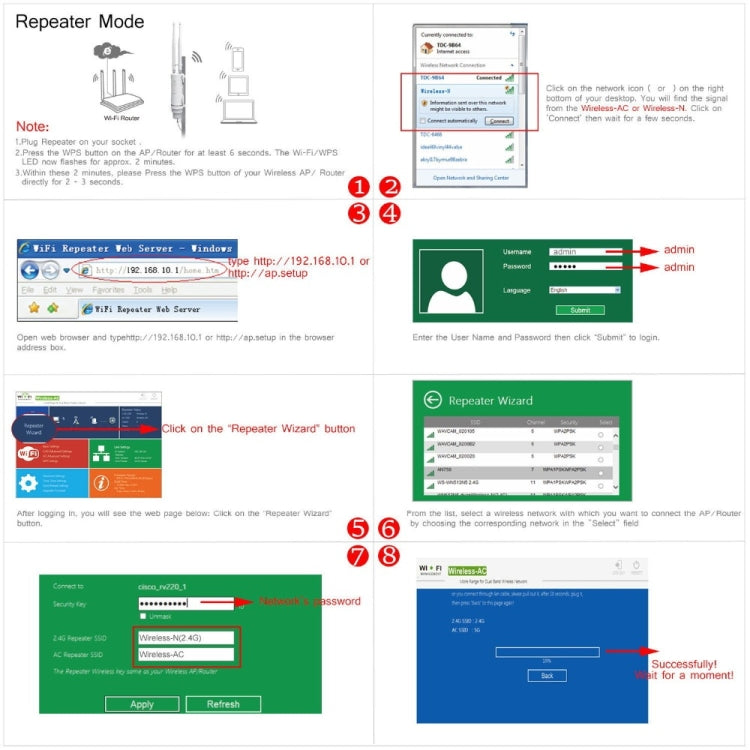

9. Operation mode: router, AP, repeater, WISP
10. With the highest security of 802.1X, WAP and WPA2
11. Support 3 LED wireless signal strength
12. Built-in lightning arrester (15kV ESD)

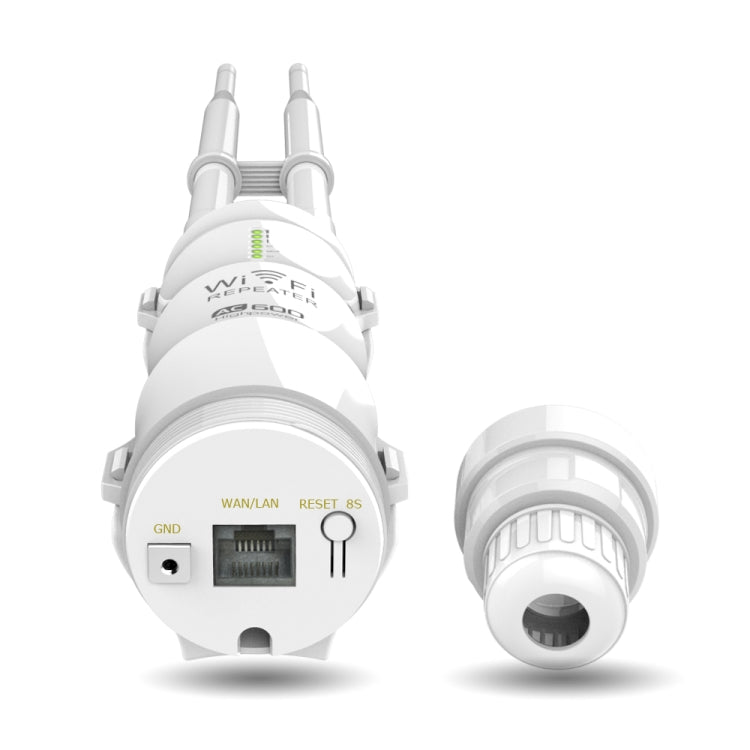

13. Port: 1 x WAN / LAN
14. Button: 1 x reset 8s
15. LED: 1 x power supply, 1 x WAN / LAN, 1 x WiFI, 3 x signal
16. Chipset: MT7688A + 7610E
17. Flash memory: 64Mb
18. DDR2: 512M
19. Power supply: DC24V / 0.5A Power over Ethernet (passive PoE)
20. Power consumption: 7W MAX
21. Rated voltage/frequency input: 100-240 Va.c. 50/60 Hz
22. Dimensions: 180mm x 50mm x 50mm (L x W x H)
23. Wireless standard: IEEE 802.11b/g/n/a/ac, frequency band 2.4GHz, 5GHz, maximum transmit power 27DBm
24. Sensitivity: 802.11b: -93dBm /802.11g: -73dBm / 802.11n: -68dBm
25. Speed: 802.11ac: up to 433Mbps, 802.11n: up to 150Mbps; 802.11a: up to 54Mbps; 802.11g: 54Mbps; 802.11b: 11Mbps
26. Wireless security: WPA-PSK / WPA2-PSK encryption
27. Antenna: 2x7dBi detachable omnidirectional directional
28. Outdoor distance is 500m, indoor distance is 150m (varies according to actual environment)
29. Package content:
2 x Omni antennas.
1 x WiFi AP/router
1 x RJ-45 network cable
1 x power adapter
1 x POE converter
1 x main body bracket
2 x cable tie
1 x Screw accessories
1 x quick installation
Specification:
|
Package Weight
|
| One Package Weight |
0.50kgs / 1.11lb
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
70cm * 31cm * 31cm / 27.56inch * 12.2inch * 12.2inch
|
| Loading Container |
20GP: 396 cartons * 60 pcs = 23760 pcs
40HQ: 920 cartons * 60 pcs = 55200 pcs
|
|
